BARSANTI

Manufacturer: Barsanti

Type of machine: Tile cutting line

- Slab material: Marble and Granite
- Slab length max: 3500mm
- Slab width max: 2100mm
- Slab thickness max: 50mm
- Tile size min: 300mm x 300mm
- Tile size max: To slab size
- Tile thickness max: 50mm
- Production capacity: Approx. 1 slab per minute
- Cutting method: Cut slabs in one pass or strip by strip
- Overall length of line: 36m
- Main components and their function

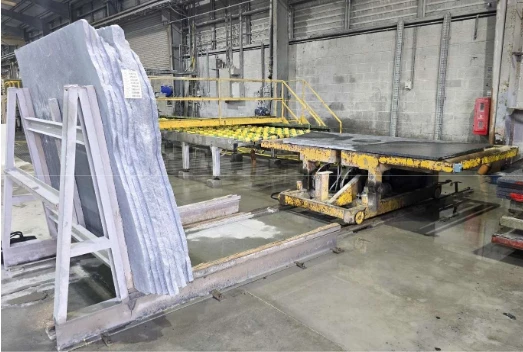

- Automatic Slab Loader: loads slabs into the line
- Feed conveyor 1: conveys slabs into the line
- Pedestrian Bridge 1: walkway across the line
- Feed conveyor 2: conveys slabs toward the long cut saw
- Long cut belt conveyor: conveys slabs through the long cut process
- Long cut bridge saw: 7 blades with electronic positioning, performs the long cut
- Side waste breaker: breaks off side waste material
- Side waste conveyor: conveys away side waste material
- Pedestrian Bridge 2: walkway across the line
- Cross cut feed conveyor: feeds strips into the cross cut process
- Strip separator: separates cut strips
- Cross cut belt conveyor: conveys strips through the cross cut process
- Cross cut bridge saws: 11 blades with electronic positioning, performs the cross cut into tiles
- Cross cut waste conveyor: conveys away cross cut waste material
- Outfeed conveyor 1: conveys finished tiles out of the line
- Outfeed conveyor 2: conveys finished tiles out of the line
- Blower Dryer: dries finished tiles
