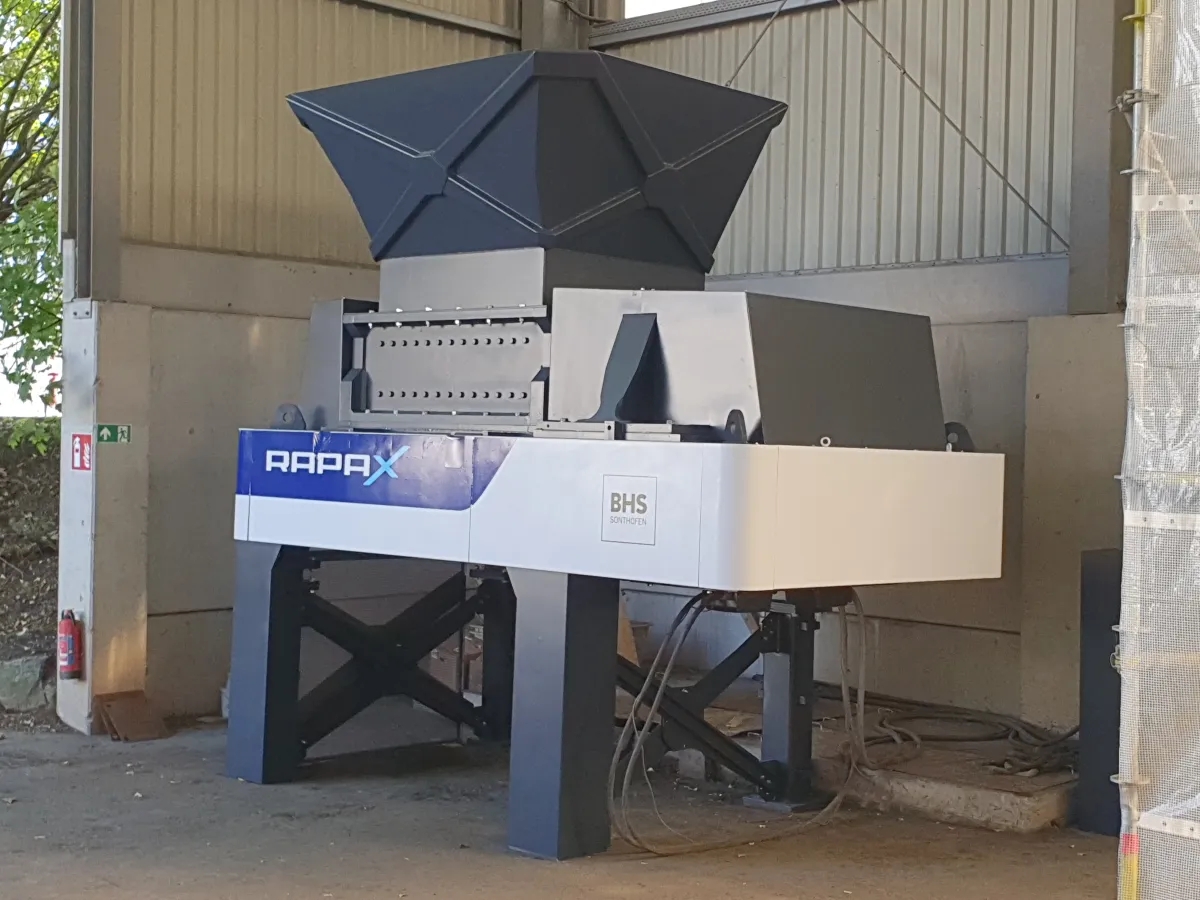

BHS RAPAX 1516

Manufacturer: BHS

Model: RAPAX 1516

Type of machine: Dual-shaft industrial shredder

Application: Pre-shredding of metals, commercial, industrial, and construction waste

Technical Details :

- Motor power: 2 x 110 kW as installed on this unit, within the RAPAX 1516 model range of 180 to 264 kW
- Torque: Up to 50,000 Nm
- Voltage: 400 VAC delta
- Frequency: 50 Hz
- Rated current: 2 x 199 A
- Control voltage: 24 VDC
- Operating temperature range: -10 degrees C to +40 degrees C
- Permissible humidity: less than 95 percent
- Total weight: 27000 kg
- Length: 4700 mm
- Width: 2750 mm
- Height: 4800 mm
- Noise emission: workplace related emission value less than 110 dB(A)
- V-belt drive: Powerband RP 2x3 grooves SPC 2800x6, equal length, 2 belt drives
- Motor pulley diameter: 250 mm
- Rotor pulley diameter: 355 mm
- Center distance: 922 mm
- Pretension force per belt drive: 16000 N
- Control frequency for belt pretension: 32 Hz
- Speed data at 50 Hz, gear ratio 31.7: motor speed 990 rpm, rotor speed 31 rpm
- Speed data at 50 Hz, gear ratio 44: motor speed 990 rpm, rotor speed 22.5 rpm
- Gearbox oil: PG ISO VG 320, first fill 2 x 22 liters Shell Omala S4 WE 320
- Hydraulic oil, optional: ISO VG 46, first fill 180 liters Bechem Staroil NR46
