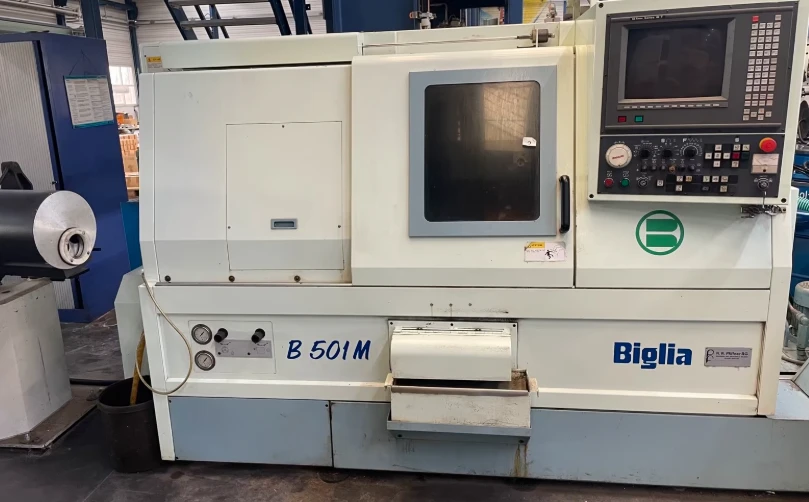

Drehbank BIGLIA B501 M

Manufacturer: Biglia

Model: B501 M

Year of Manufacture: 1996

Type of Machine : Lathe

CNC Control: GE Fanuc 0-T

Turning Capacity

- Maximum turning length: 500 mm
- Maximum diameter over the bed: 520 mm
- Maximum workpiece diameter: 68 mm
- Maximum diameter per pass: 250 mm

Spindle Specifications

- Spindle bore: 80 mm
- Spindle motor: 22 kW
- Maximum spindle speed: 4000 rpm

Axis Travel

X-axis travel: 2105 mm

Z-axis travel: 500 mm

C-axis minimum programmable step: 0.001 degrees

High-speed traverse: up to 80 rpm

Turret and Tooling

- Turret positions: 12
- Motorized tool positions: 6
- Motorized tool speed range: 50 to 3000 rpm
- Motorized tool motor: 3.7 kW
- Tailstock
- Tailstock travel: 100 mm (automatic)
- Tailstock taper: CM4
- Additional Equipment Included
- Autoblok 210 BB chuck with hardened jaws
- Filtermist FI4/8 fume extractor
- Chip conveyor

Machine Dimensions and Weight

- Length: 4000 mm
- Width: 1900 mm
- Height: 1800 mm
- Total weight (including chip conveyor): 4700 kg
