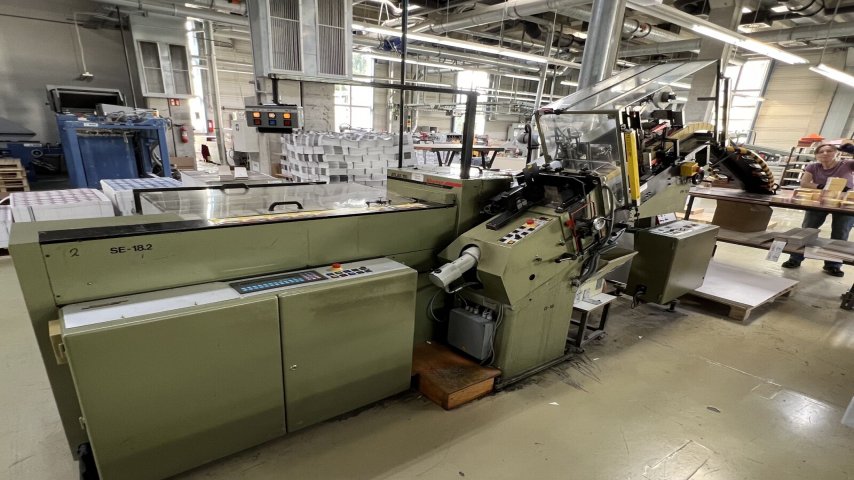

Verschiedene BLUMER Atlas 110

Format: 166 x 211 mm

Ausstattungen:
Full Automatic line of High Die Cutter for Cards (Business, Phone, Loyalty, Membership), Labels, tickets
ST-18.02 Strip stock feeder
SE-18.2 Infeed and Cross Cutter with Automatic Program
D-18 Die Cutting Punch Unit with 2 chases
PB-18.1 Banding machine with delivery
Strip length min./max. : 350/1130 mm
Strip width min./max. : 45/180 mm
Precut label size min. : 25x45 mm
Precut label size max. : 150x180 mm
Die cut size min. : 20x41 mm
Die cut size max. : 145x175 mm
Stack heigh min./max. : 45x125 mm
Min. trim per side for die cut : 2 mm
Intermediate trim cut : 3 mm / 22 mm
Height of cutting die : 60 - 100 mm
Mecanical Speed : 10 - 15 strokes per minute
Die Cut Pressure : 4 - 5 Tons
Banding machine, width : 25 mm
Machine is controled with program and screen
Elecrical datas : 380V, 50 Hz, 6.8 KW, 16 Amp.
Air supply required : 6 bars dry air (30 - 45 m3/h) incl. 30% reserve
Dimensions : 4900 x 3900 mm
Weight : 2.400 kg
Verkäufer Angebot Nr. resale 41620
