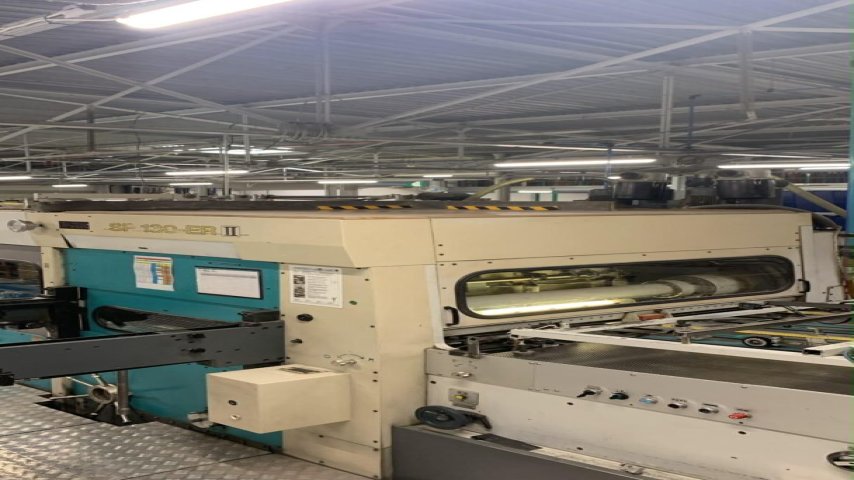

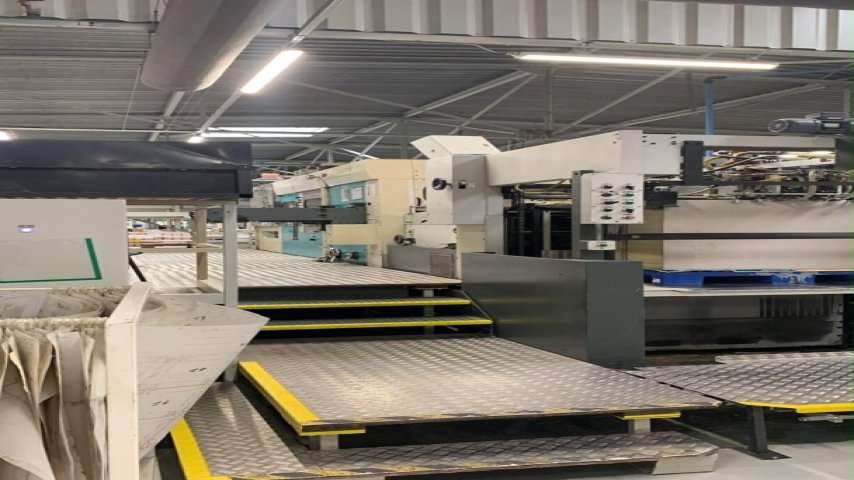

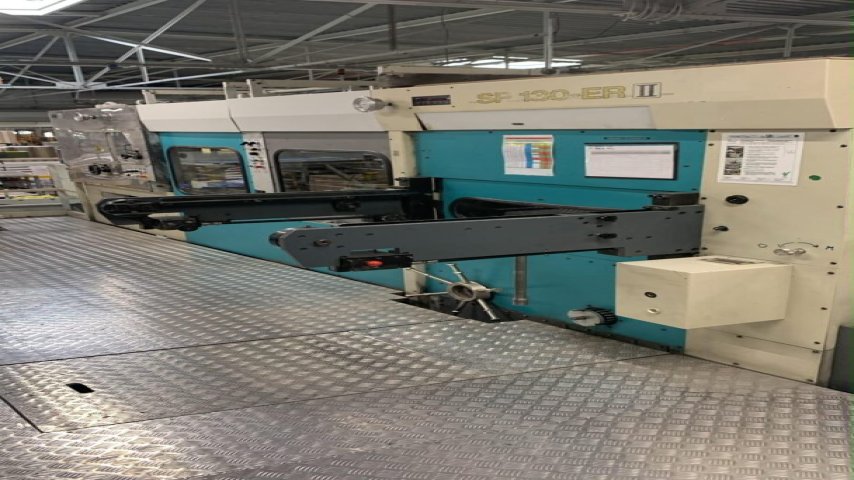

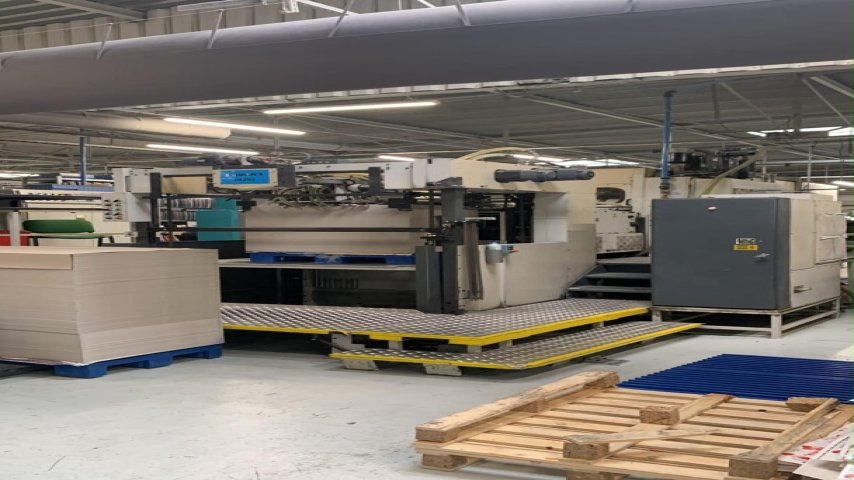

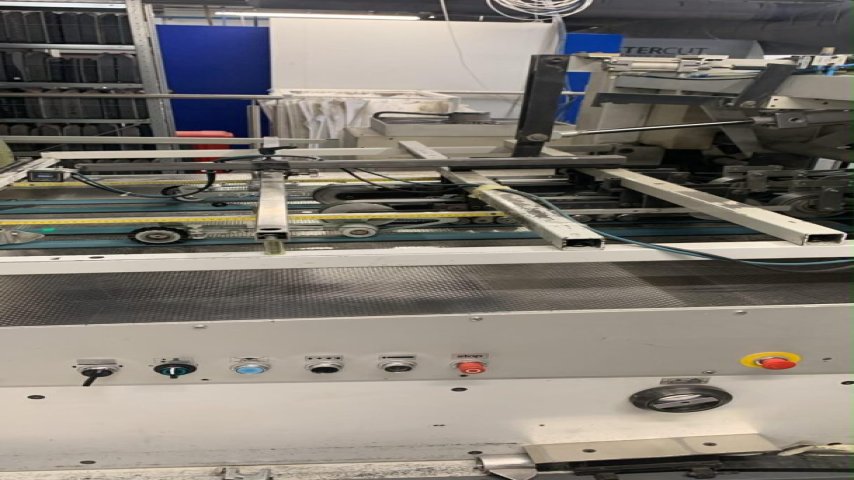

Bobst SP 130-ER II Autoplatine

Format: 1300 x 920 mm
Ausstattungen:
Maximum die-cutting size with front waste: 1,300 x 905 mm
Maximum die-cutting size without front waste: 1,300 x 915 mm
Maximum embossing size: 1,300 x 900 mm
Paper: approximately 80–90 g/qm2 and above
Solid board: up to approximately 2,000 g/qm2
Corrugated board: up to approximately 4 mm
Equipment:
Operating platform
Machine raised by approximately 650 mm
Removable platform section at the feeder
Recently installed asynchronous main motor
Manual non-stop feeder pallet
Pile table with manual lateral correction during production
Adjustable suction unit
Automatic feeder-head adjustment
Double-sheet detection
Sheet down-holder for guiding sheets to the front lays
Upper frame with manual lifting device
Upper transport equipment for paper and cardboard
Die-cutting, pressing/creasing and embossing, separately or simultaneously
Oil conditioner for maintaining the correct operating temperature
Automatic removal of internal and marginal waste
Condition and availability
