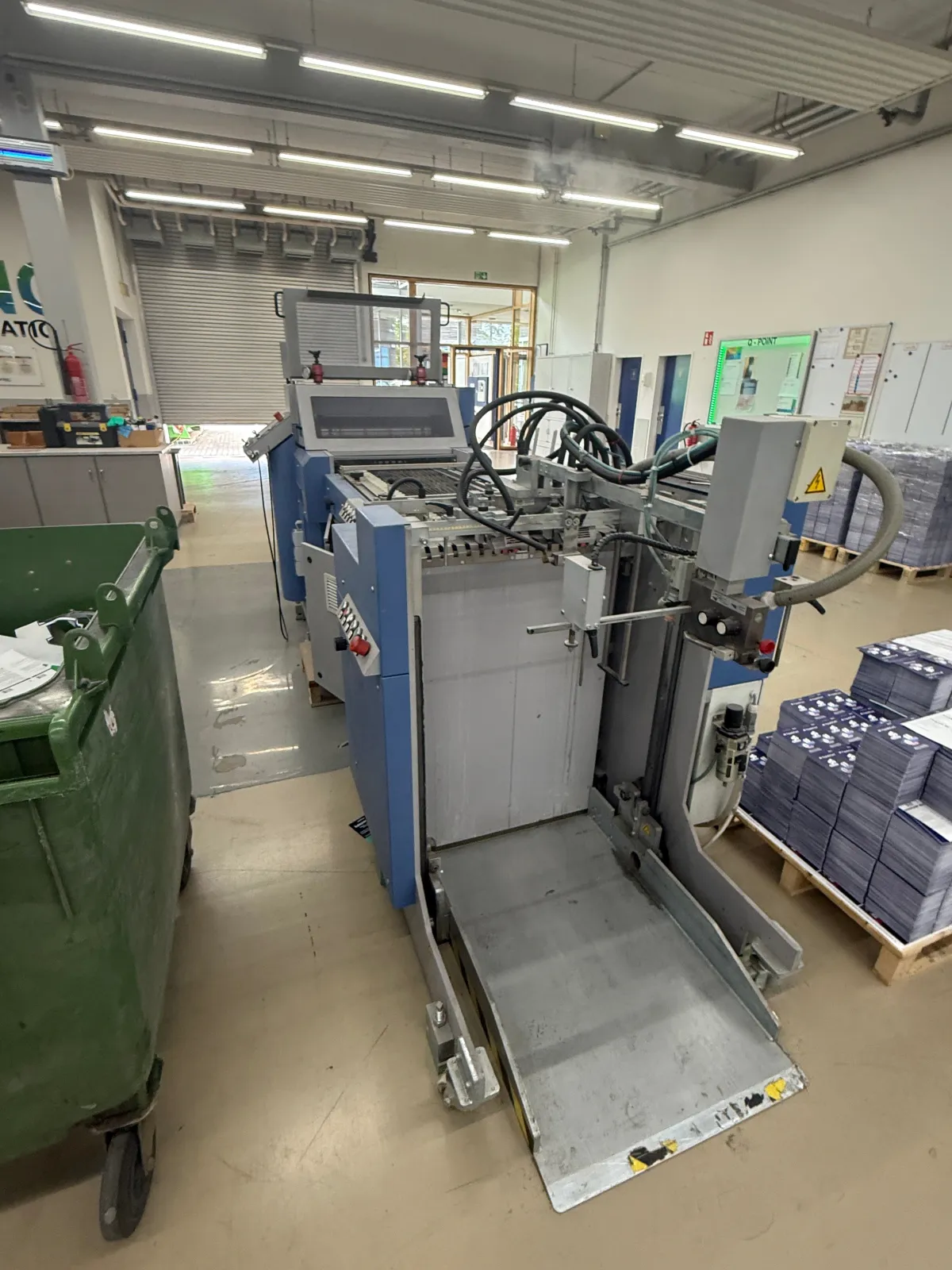

Bograma 550 Servo Die Cutter

Max. speed: Up to 12,000 sheets/hour (or 165 m/min). Max. sheet size: 550 x 750 mm. Min. sheet size: 297 x 210 mm (210 x 210 mm depending on feeder). Max. die-cutting area: 530 x 730 mm. Min. die-cutting area: 55 x 65 mm. Stock weight range: Paper and cardboard from ~80 gsm up to 0.5 mm thickness. Tooling technology: Magnetic cylinders for flexible die plates (upper and lower). Drive system: Servo-motorized register control. Key functions: Die-cutting, kiss-cutting, creasing, perforating, embossing, and automatic waste stripping.
