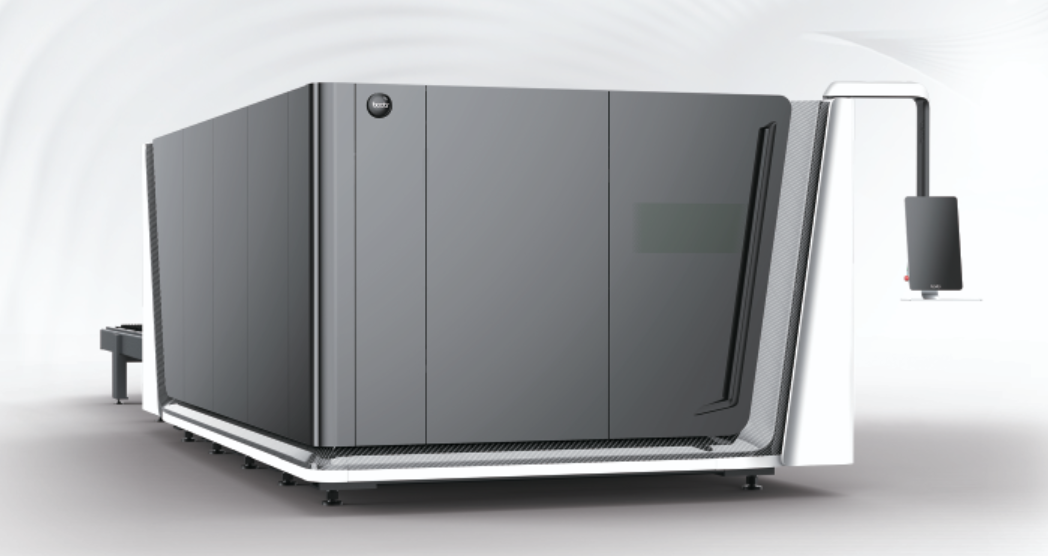

BORDOR P3

Manufacturer: Bordor

Year of Manufacture: 2023

Model: P3

Type of Machine: Laser Cutting Machine

Laser Source: 6kW

Technical Specifications:

- Working Area: 3048mm x 1524mm

- Max Linkage Speed: 200m/min

- Max Acceleration: 4.0G

- Table Load Bearing: 1050kg (1-4kw) / 1450kg (more than 6kw)

- Machine Overall Dimensions: 8840mm x 2240mm x 2520mm

- Overall Weight: plus or minus 6500kg

- Z Axis Travel: 350mm

- Positioning Accuracy: 0.02mm

- Total Power Capacity/Current with 40KW MAX source: 264.6KVA / 402.0A

- Total Power Capacity/Current with 30KW MAX source: 204.0KVA / 310.8A

- Total Power Capacity/Current with 20KW source: 141.9KVA / 217.1A

- Total Power Capacity/Current with 12KW source: 95.1KVA / 144.4A

- Total Power Capacity/Current with 6KW source: 60.3KVA / 91.6A

- Total Power Capacity/Current with 3KW source: 44.6KVA / 67.7A

- Total Power Capacity/Current with 2KW source: 35.8KVA / 54.5A

- Total Power Capacity/Current with 1.5KW source: 42.1KVA / 63.9A
