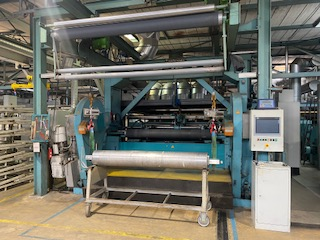

Bruckner stenter frame with 6 fields and a working width from 100 to
240 cm, complete with washing section, padder application, dyeing beam
unwinding and moisture monitoring system.Control and drive technology
upgraded in 2018 by Bruckner.
Manufacturer: Bruckner
Working width: 100 cm to 240 cm
Configuration: 6 field stenter frame
Year of Manufacture : 1988
Extra Features
- Dyeing beams unwinding
- Finishing application through padder
- Pleva moisture pickup monitoring and controlling system
Technical Data
- Minimum working width: 1000 mm
- Maximum working width: 2400 mm
- Infeed expansion shafts: 40x40 mm
- Infeed dyeing beams diameter: 400, 500, 600 mm, outer diameter up to
1500 mm
- Infeed expansion shaft max weight: 250 kg
- Infeed dyeing beams max weight: 3500 kg
- Outfeed winding shaft length: 2700 mm
- Outfeed dyeing beams diameter: 400, 500, 600 mm
- Outfeed winding shaft max weight: 500 kg
- Outfeed dyeing beams max weight: 1200 kg
- Washing machine manufacturer: Benninger
- Washing configuration: 1 wash compartment
- Padder type: Zwickelfoulard
- Padder manufacturer: Kusters
- Moisture measurement manufacturer: Pleva
- Winder type: reversing winder (Wendewickel)
- Winder manufacturer: Bruckner
- Technical renewal: 2018, control and drive technology upgrade by
Bruckner
