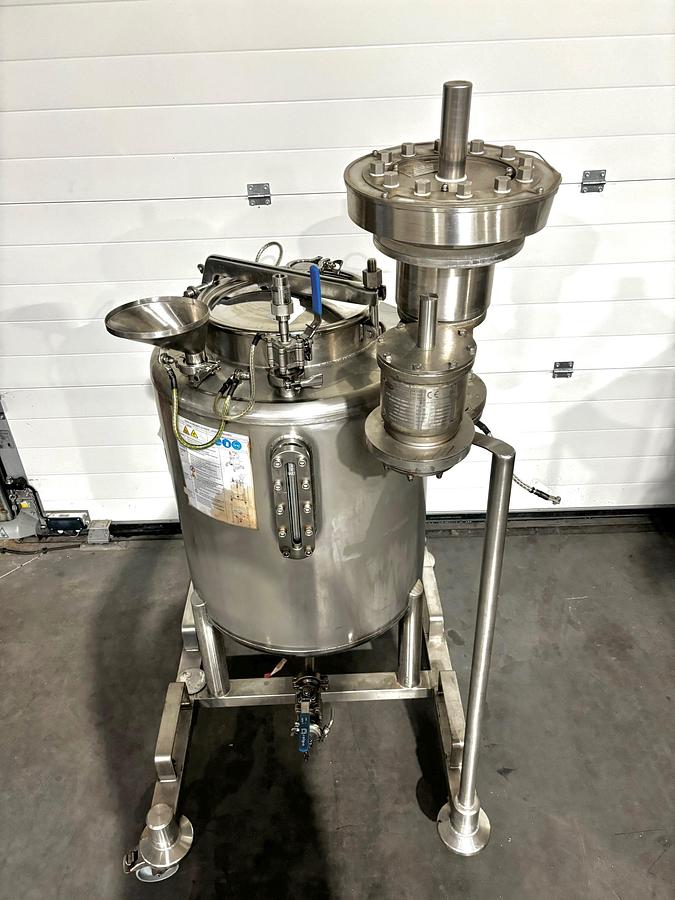

316L stainless steel tank for alcohol storage with K Fire valve
compliant with ATEX regulations, I) CHARACTERISTICS, Usable volume:
150 L, Total volume: 175 L, Floor space: 900 x 900 mm, Tank diameter:
600 mm, Manhole height: 1 150 mm (approx.), Oil level height: 225 mm,

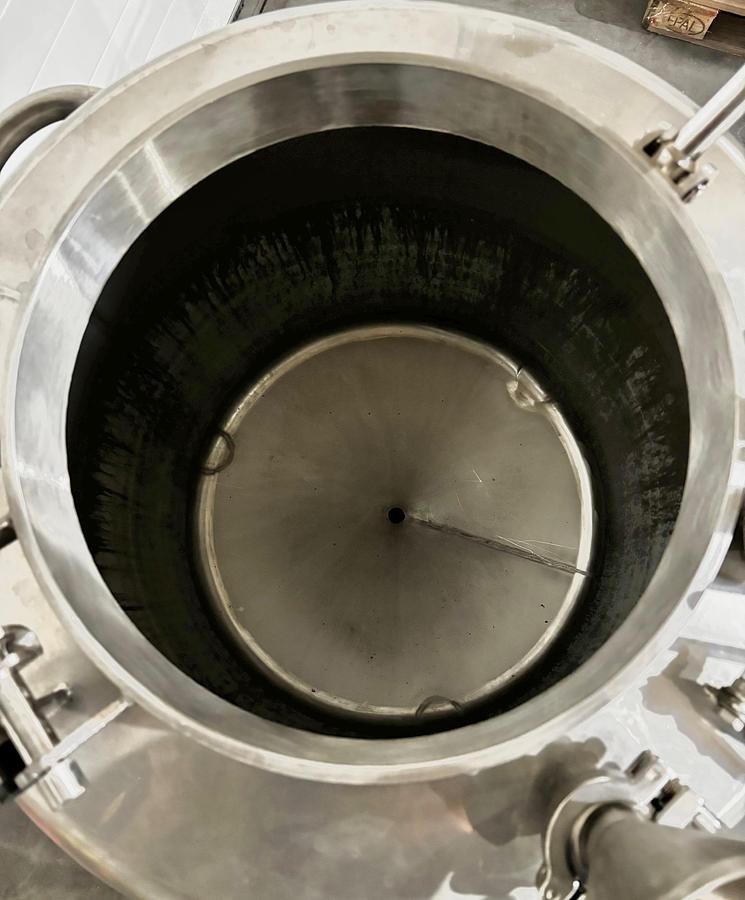

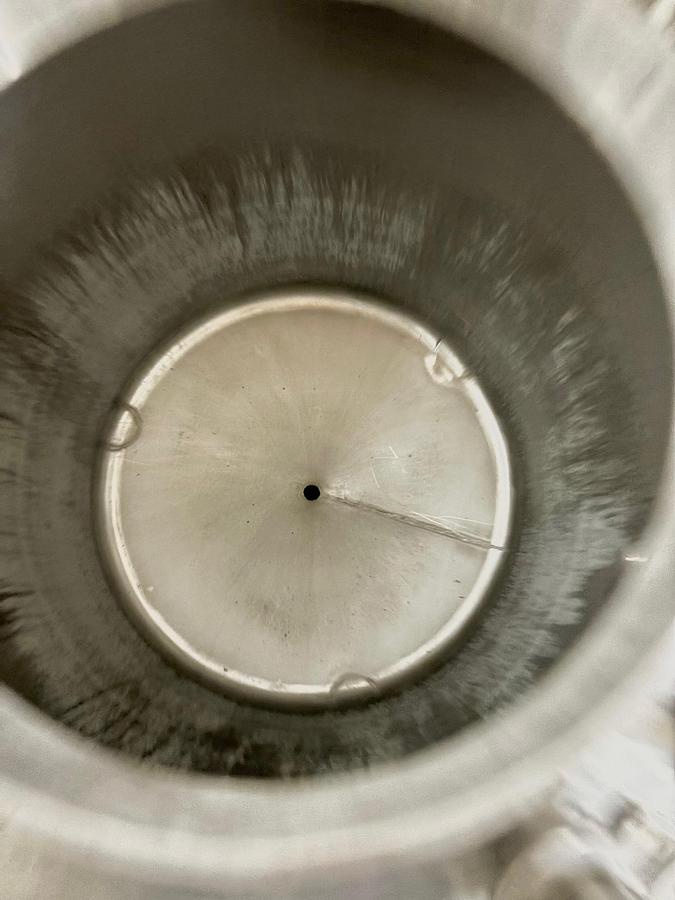

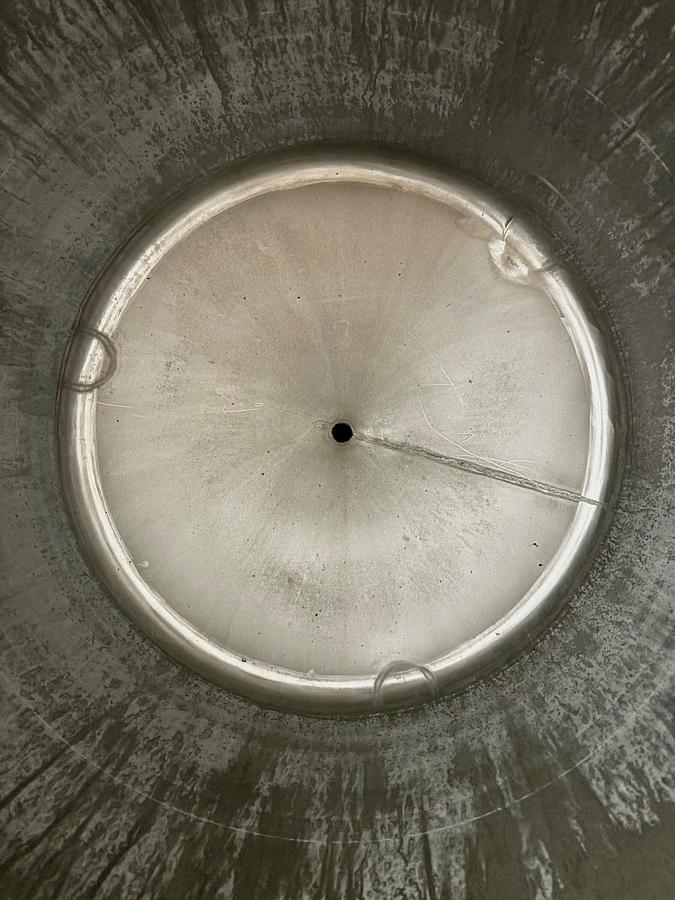

Cylindrical shape with a manhole at the cone apex and conical bottom
at 15° with total drainage brought forward., Vertical position on
tubular feet equipped with 4 mounting plates with 4 swivel casters, of
which 2 have brakes (at the back of the tank)., Nota : Antistatic and
dissipative casters + grounding lug., II) MAXIMUM SERVICE CONDITIONS,
Operating pressure: atmospheric, Operating temperature: ambient,
Equipment intended for use in explosive atmospheres in accordance with
ATEX Directive 2014/34/EU., Nota : a pressure-vacuum relief valve +50
g / -5 g will be provided for installation on the center nozzle of the

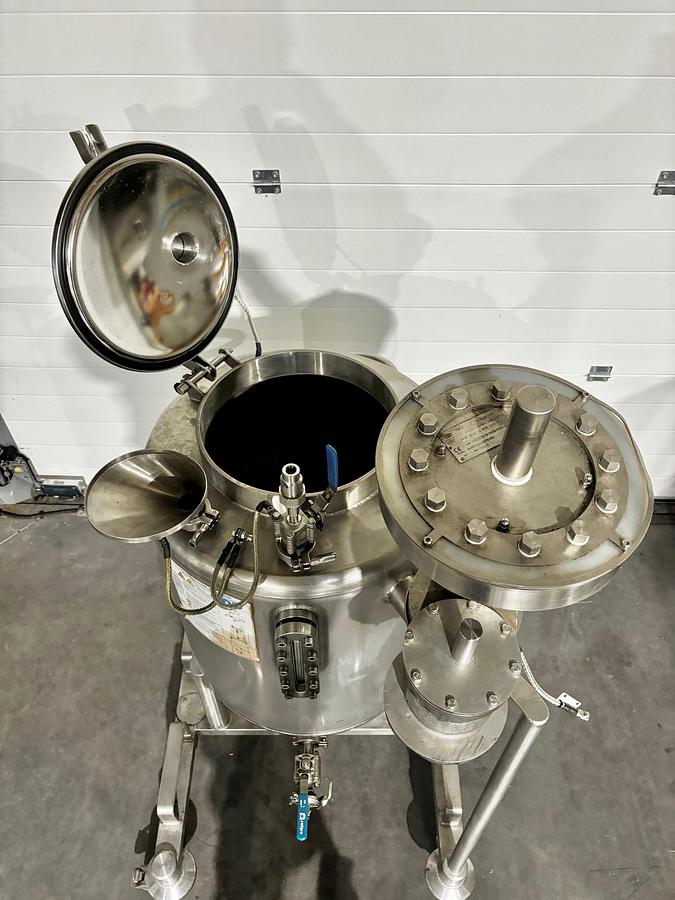

lid., III) EQUIPMENT, III.1) On a 15° conical summit:, – 1 manhole
hole Ø 350 mm closed by bolts, – 1 DN 38 clamp off take with
anti-foaming elbow + stainless steel funnel adaptable to DN 38
take-off + clamp cap DN 38, – 1 pressure/degassing valve, – 1 DN
38 inlet clamp non-boring for fixing funnel during tank handling,
III.2) On a 15° conical background:, – 1 drain, connection clamp Ø
25 + manual butterfly valve clamp / clamp Ø 25 with straight outlet +
plug clamp + gasket + clamp., III.3) On the sleeve (nut) :, - 1
construction plate with CE / ATEX marking, - 1 handle in stainless
steel tube for tank handling, - 1 rectangular sight glass at the top
part of the cap to visualize full tank., III.4) Tank support, Made in
stainless steel tube + crosspieces + 40 x 10 mm plate for handling by
forklift (same as mobile tank 120 L ATEX)., IV) MATERIAL, Stainless
steel 1.4404 for all parts in contact with the contained products.,
Stainless steel 1.4301 or higher quality grade for the rest of the
construction., Gaskets: Viton., V) FINISHING, Interior : Sheet LAF 2B,
all welds rough., Exterior : Welds rough., Valve characteristic:, 150
liters, - valve diameter: DN30 (1 inch 1/2), - Full-open pressure:
0.22 Bar, - Flow rate to be discharged through the relief valve: 301
Nm3/h, - Maximum allowable pressure drop across the valve at fire
flow: 96 mBar, Volume: 175 Liters , Useful volume: 150 liters , Cover
diameter: Ø 350 mm, Mobile tank: Yes, Weight (kg): 123 kg , Working
pressure (bar): -0.005/+0.2 bar , Test pressure (bar): 0.1 bar ,
Temperature (°C): +5/+50 °C , ATEX: Yes
