CAPSNAP

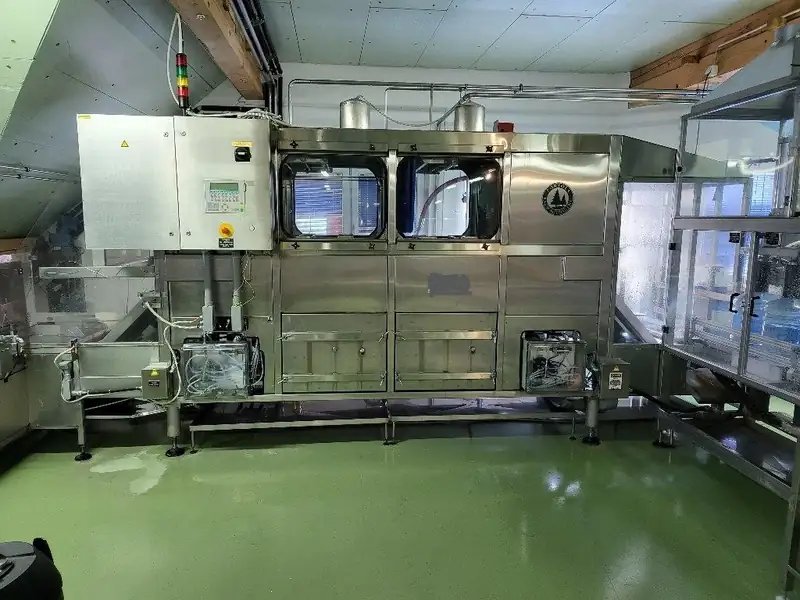

Used Water Complete Bottling Line Flat Drinks 300 bph 18.9L CapSnap The CapSnap Adapta Series is a modular integrated bottle washing, filling, and capping system. It is the perfect solution for medium-sized HOD water bottling operations. Designed for adaptability – these machines can be configured to handle both 3-Gallon and 5-Gallon bottles. This complete system effectively handles 300 – 600 BPH. Manufacturer: CAP SNAP – Portola – USA Year of production: 1999 (completely refurbished in 2015 and since then it has worked only 500 hours) Capacity: 300 bph Required energy sources: air 6 bar, power 40 kW, cleaning water supply 2 bar and filling water supply Line composition: Semi-automatic cap removal device: This device is used to remove caps from bottles. Entrance conveyor: On this conveyor belt, the bottles are manually placed. Prewash with cold water through nozzles: This is the first stage of washing, using cold water. Wash with warm water and detergent through nozzles: This is the second stage of washing, which uses warm water at 50°C with detergent. Rinse with cold water and disinfectant through nozzles: This is the last washing stage, which uses cold water and disinfectant. Bottle filling outlet conveyor: The bottles are filled here, two at a time. UV Filter: The water is filled through a UV filter, which is built into the water inlet of the bottle. Transport of filled bottles to the capper: Here, the bottles are transported from the filler to the capper. Dosage caps through disinfectant on the bottle: Here, the caps are disinfected and ready to be put on the bottles. Bottle cap cylinder: Here the bottle cap is applied. Output conveyor: From here, the bottles are manually loaded onto pallets. Each part of this system has a specific role in the process of bottle filling, and all together they form a functional production Used Water Complete Bottling Line.
