Carl Zeiss MZ2010 R

Stiefelmayer 3D Horizontal Arm Coordinate Measuring & Marking Machine – 5000 x 1750 mm Plate

Overview / Description:

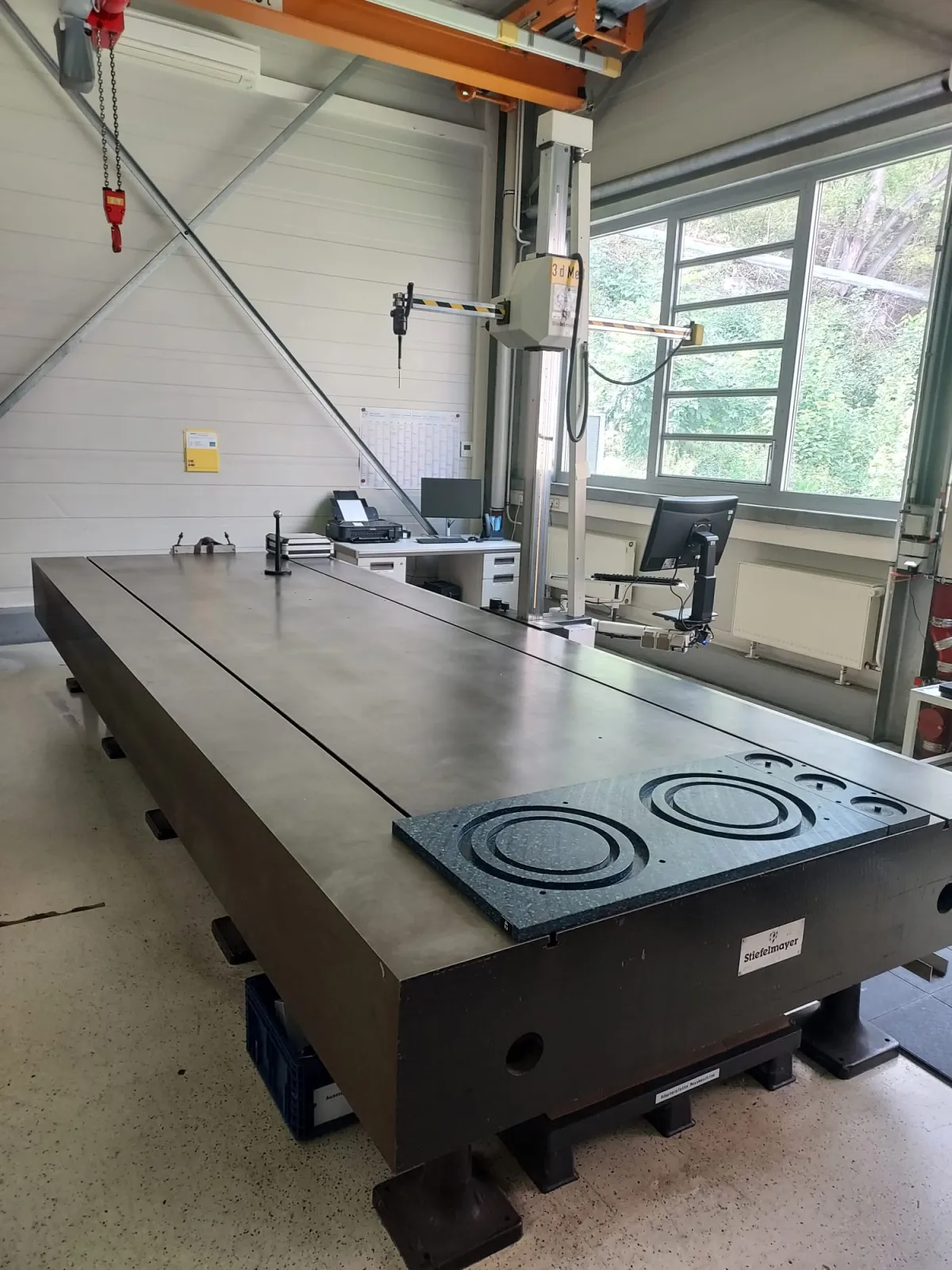

For sale is a high-precision, manual 3D horizontal arm coordinate measuring machine (CMM) and layout station manufactured by Stiefelmayer, complete with a heavy-duty cast iron surface plate (Spezialgußeisen) and Carl Zeiss IMT digital electronics. Ideal for large-part inspection, prototype construction, automotive cubing, and casting marking/layout tasks.

Technical Specifications

Measuring Plate / Bed (Stiefelmayer)

- Manufacturer: Stiefelmayer
- Plate Dimensions (L × W × H): 5000 mm × 1750 mm × 350 mm
- Plate Material: Special Cast Iron (Spezialgußeisen mit Stahlzusatz)
- Plate Weight: Approx. 5,800 kg
- Surface Flatness: DIN 876/II (precision ground)
- Base Supports: 10 × Height-adjustable cast iron levelling feet (Stützböcke, adjustable 370–470 mm)
- Working Height: Approx. 720–820 mm

Guidance System & Measuring Column (System C / 3D Me)

- X-Axis Rail Length: 5,000 mm (Hardened/Chromed steel DIN 876/II)
- X-Axis Measuring Range: 4,420 mm
- Operation: Manual 3D horizontal-arm layout/measuring column with counterbalanced Z-axis rail and fine adjustment.
- Accessories Included: Reference sphere ($\varnothing$ 50 mm) for calibration / probing alignment.

Electronics & Control

- Brand / Supplier: Carl Zeiss IMT GmbH / Renishaw
- Serial Number: MZ2010R-V1-C-00259
- Year of Manufacture (Electronics): 2007
- Power Supply: 22–26V DC, max. 50W
- Features: 3-Axis (X/Y/Z) digital counter interface, monitor mount workstation bracket, workstation PC/monitor setups.
