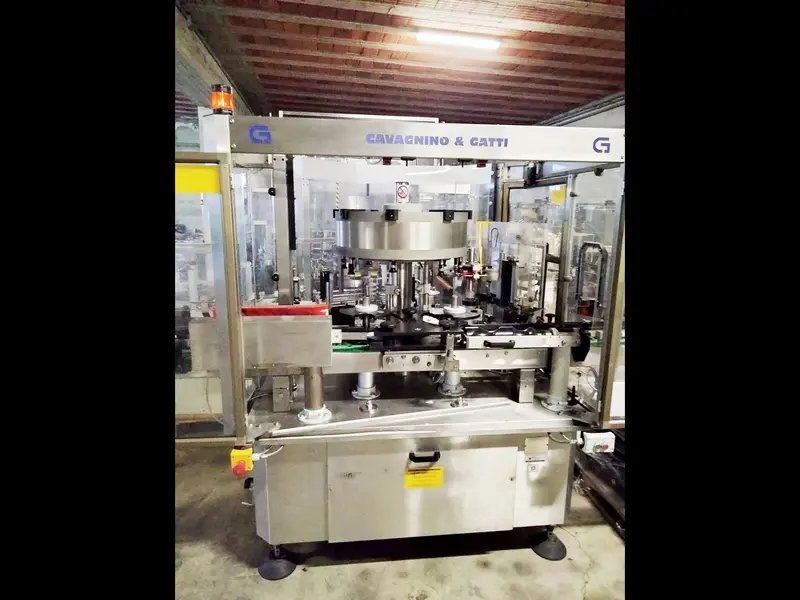

Used Labelling Machine Cavagnino & Gatti Year 2012 Introduction to
Production Efficiency of the labelling machine Cavagnino & Gatti year
2012 Model: CG-FR-1-8-3RPS-3 | Year: 2012 | Speed: 4000 bph. This unit
is configured for glass containers in the 750 ml format and is
currently in storage. As bottle labeling equipment for wine and
spirits lines, its eight-plate carousel and four labelling stations
deliver consistent, repeatable application at the stated output.
Technical Specifications of the Model The Cavagnino & Gatti
CG-FR-1-8-3RPS-3 (year 2012) combines mechanical precision with robust
construction. The carousel features 8 plates with a mechanical cam
movement driven by a brake/clutch for stable indexing and accurate
label application at 4000 bottles/hour. It is set for glass containers
in 0.75 L format and operates in a counterclockwise rotation direction
for straightforward line integration. Number of stations: 4,
supporting multiple placement operations within the machine footprint.
Manufacturer: Cavagnino & Gatti Model: CG-FR-1-8-3RPS-3 Year: 2012 |
Condition: in storage Speed: 4000 bph Containers: Glass | Format: 750
ml (0.75 L) No. of plates: 8 | Plate movement: mechanical cam with
brake/clutch Stations: 4 | Rotation direction: counterclockwise
Optical centering system: not included Label placement: multiple
positions supported (reference codes 0/1/2) Labelling Methodology and
Adjustments The machine supports adhesive and hot glue labelling,
enabling a wide operational range without reconfiguring core
assemblies. Label adjustment is automatic for consistent alignment,
while head adjustment is manual to allow on-the-fly fine tuning at the
station. The counterclockwise rotation aligns with many existing
conveyors, simplifying synchronization. Within the four stations,
operators can manage multiple label positions per cycle, and the
cam-driven plate motion keeps bottles steady for clean application on
750 ml glass. This labeller machine maintains stable performance at
the declared throughput. Versatility and Maintenance of the labelling
machine Cavagnino & Gatti year 2012 The configuration handles
different 0.75 L bottle styles—standard, European, sparkling, and
Burgundy—preserving alignment and wrap quality on glass. This
versatility supports product changeovers within the same capacity
class. Regular maintenance was performed up to January 2023,
sustaining mechanical integrity and readiness for commissioning after
storage. Configuration and Precise Control The machine’s slide
carriers are configured on four axes with manual movement, giving
technicians precise control over label position, pitch, and contact
pressure. The cam/brake-clutch motion profile ensures consistent dwell
for adhesive transfer and hot glue tack, reducing misapplication risk.
These adjustments streamline set-up, support repeatable positioning,
and help maintain label quality across continuous runs. Conclusion:
Added Value for Bottling Operations The 2012 Cavagnino & Gatti
CG-FR-1-8-3RPS-3 combines 8-plate mechanical precision, 4 stations,
and 4000 bph performance for 750 ml glass bottles. As bottle labeling
equipment, it delivers controlled application via adhesive and hot
glue methods, with automatic label adjustment and manual head tuning.
This industrial labeling machine functions as a reliable label
applicator machine for bottles where accuracy, stable throughput, and
flexible station configuration are required in a compact carousel
footprint.
