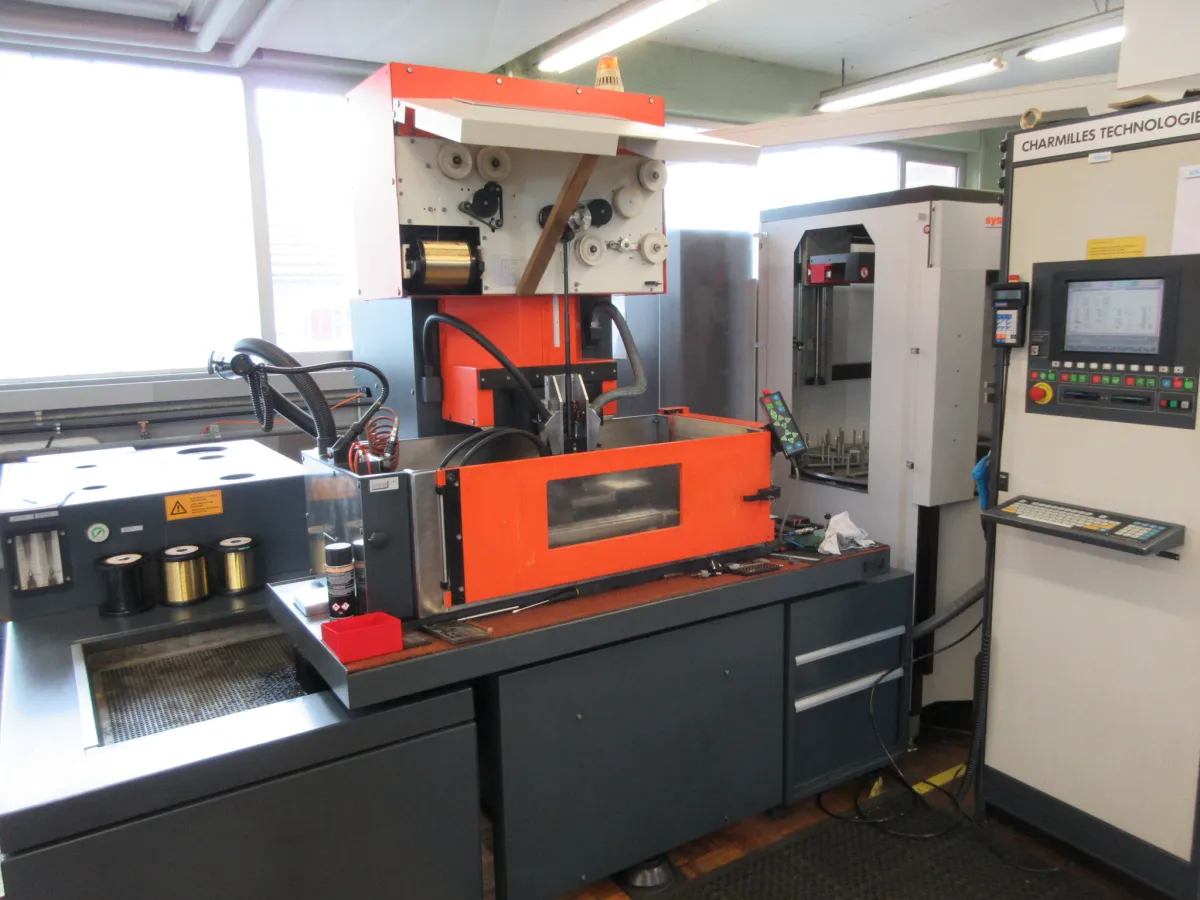

EDM-Maschine CHARMILLES Robofil 2020

The Charmilles Robofil 2020 is a high-precision Wire Electrical Discharge Machine (Wire EDM). Manufactured in Switzerland, this machine is designed for detailed "erosion" work, making it a staple in toolmaking and the production of complex medical or industrial components.

Here is a clean, structured text block for the Charmilles Robofil 2020 (1994) that you can copy and paste directly into an online listing or equipment database.

---------------------------------------------------------------

Machine Specifications: Charmilles Robofil 2020

General Information

- Manufacturer: Charmilles Technologies (Switzerland)
- Model: Robofil 2020
- Year of Manufacture: 1994
- Machine Type: CNC Wire-Cut Electrical Discharge Machine (Wire EDM)

Technical Travel & Capacity

- X-Axis Travel: 320 mm (12.5")
- Y-Axis Travel: 220 mm (8.6")
- Z-Axis Travel: 116 mm (4.5")
- U/V Axis Travel: ± 48 mm (for taper cutting)
- Max. Taper Angle: ± 30°
- Max. Workpiece Dimensions: 990 mm x 505 mm
- Max. Workpiece Weight: 500 kg (1,100 lbs)

Wire & Precision

- Wire Diameter Range: 0.1 mm to 0.3 mm (0.004" to 0.012")
- Automatic Wire Threading (AWT): Yes (Standard on most 2020 models)
- Submerged Cutting: Yes

Physical & Facility Requirements

- Machine Weight: Approx. 2,440 kg (5,380 lbs)
- Footprint (L x W x H): 2390 mm x 2515 mm x 2285 mm (Approx. 94" x 99" x 90")
- Dielectric Tank Capacity: 800 - 900 Liters
-
