Zapfenfräsmaschinen CHOJNICKA 130

PART NUMBER 7753

SPECIFICATIONS
- max diameter of machined dowels 130mm
- 110mm bushing fitted
- max diameter of input material 160mm
- min length of input material 800mm
- max machining allowance per side 15mm
- 15kW knife head drive motor
- 3 types of feed speed + front/rear
- 1.1kW feed motor
In sequence:

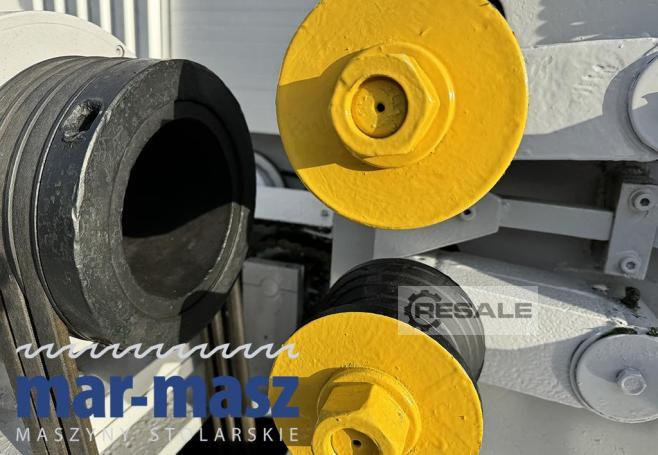

- 3 toothed pulling shafts

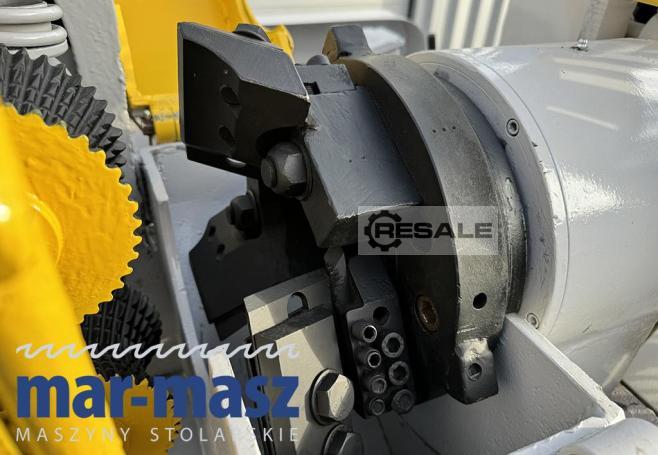

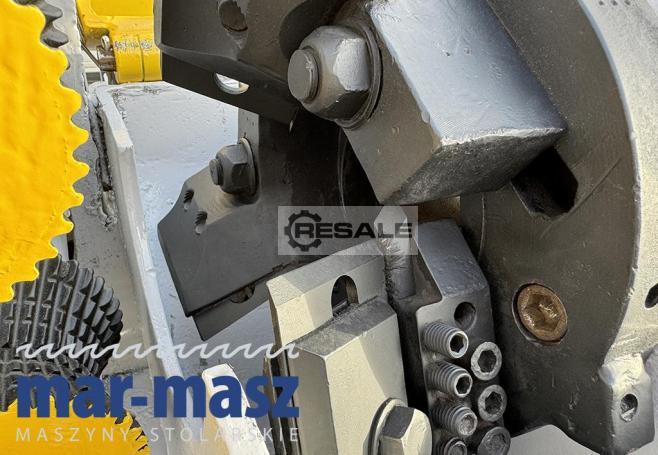

- 3-knife head
- 3 smooth pulling output shafts
- Dimensions L/W/H 3100x1400x1500mm
- weight 2100kg

ADVANTAGES
– Polish production
– 3-knife head
– used beam, very good condition

Net price: 32900 PLN
Net price: 7833 EUR depending on the price 4.20 EUR
(Prices may change with higher fluctuations)
Verkäufer Angebot Nr. resale 7753
