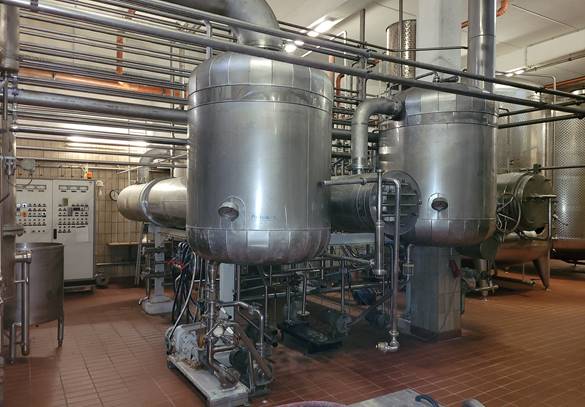

COMBINED CONCENTRATION SYSTEM AFN 454 US

1992 COMBINED CONCENTRATION SYSTEMType: AFN 454 US

The system was in operation for a maximum of 2 months per year.

WITH AROMA RECOVERY,

USED, REBUILT AND EXPANDED, IN ADDITION TO

EQUIPPED WITH NEW COOLING TOWER CIRCUIT

EVAPORATOR TYPE OPERATION Horizont

TYPE HEAT EXCHANGE al,

CONDENSATION AROMA 4-stage

EXTRACTION with

SYSTEM VERSION: WATER live steam

EVAPORATION SYSTEM TYPE > NEW

preheating, recovery,

cooling mixed

condensation

semi-barometric

rectification - tray

column especially for

the juice industry

4 840 Kg/h

AFN 454 U-S

Technical data:

1-stage dearomatization and concentration, combined operating

mode

SYSTEM TYPE: AFN 454 U-S

PRODUCT: Apple juice, cloudy

Input quantity 6 600kg/h

Input dry matter 12,0%

Input temperature 15 ·c

Water evaporation 4 840 kg/h

Initial quantity 1 760 kg/h

Starting dry matter 45 %

Starting temperature approx. 18 ·c

Aroma quantity (150 times) 42 1/h

Aroma-Temperature 17

Briiden water temperature 26 - 30 ·c

Steam performance 1 685

consumption 0,348

Specific 5

steam 12

consumption 700 ooo

Fresh water

consumption approx.

Fresh water

temperature

Condensation

NB: The system can also be used to produce full concentrate of

71% DM. Approximate process data:

1, pass pre-concentration of 12 to 25 Brix

2nd round Concentrate from 25 to 71 Brix
