Corning 048E88-611-31-29 Glasfaserkabel Unitized Tight-Buffered Cable

Corning 048E88-611-31-29 MIC Unitized Tight-Buffered Cable, Plenum, 48fibres,OS2.

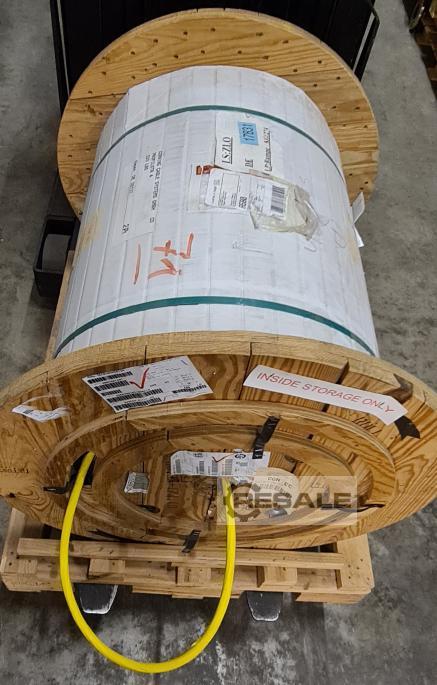

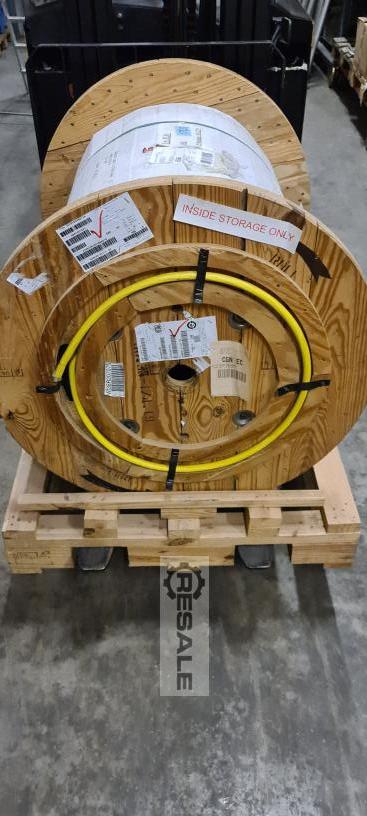

Die Rolle wiegt knapp 300kg.

Specifications

General Specifications

Environment Indoor
Application General Purpose Horizontal, Vertical Riser, Plenum
Cable type Tight-Buffered
Product type Distribution
Flame rating Plenum (OFNP)
Fibre Category single-mode (OS2)

Temperature Range

Storage -40 °C to 70 °C (-40 °F to 158 °F)
Installation and assembly 0 °C to 60 °C (32 °F to 140 °F)
Operation 0 °C to 70 °C (32 °F to 158 °F)

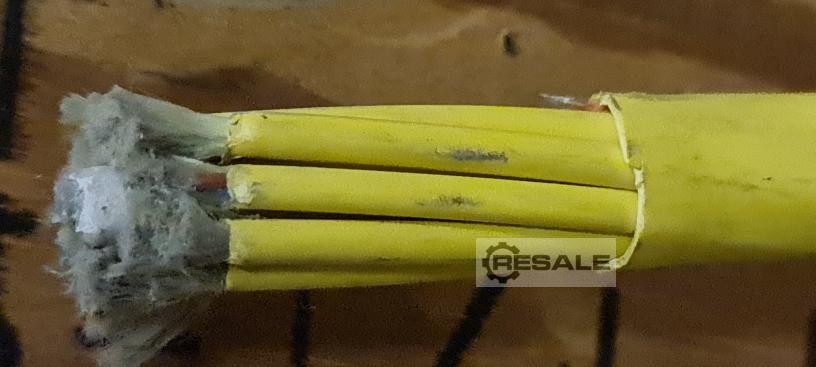

Cable Design

Central Element Jacketed GRP
Fibre Count 48
Number of Active Tubes 8
Subunit Colour yellow
Subunit Diameter 4.40 mm (0.17 in)
Tight buffer colour subunit Blue, orange, green, brown, grey, white
Tensile Strength Elements and/or Armouring - Layer 1 Dielectric strength members
Number of ripcords 9
Outer jacket material Flame-retardant
Outer jacket colour yellow

Mechanical Characteristics Cable

Max. tensile strength, short-term 660 N (150 lbf)
Max. Tensile Strength, Long-Term 200 N (45 lbf)
Nominal Outer Diameter 17.8 mm (0.70 in)
Weight 297.9 kg/km (211.0 lb/1000 ft)
Min. Bend Radius Installation 267 mm (10.5 in)
Min. Bend Radius Operation 178 mm (7.0 in)

Chemical Characteristics

RoHS Free of hazardous substances according to RoHS 2011/65/EU

Ordering Information

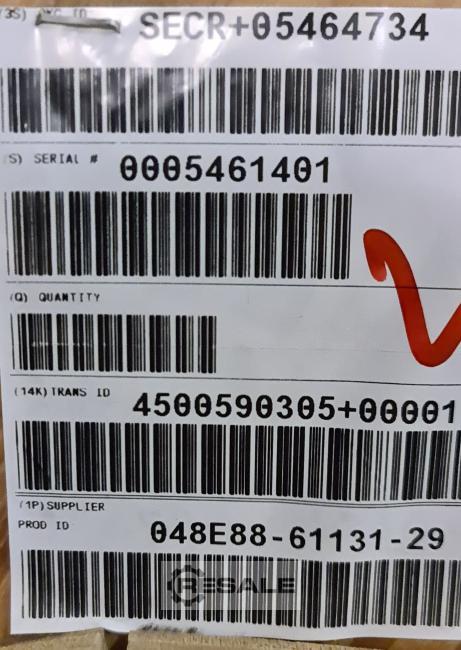

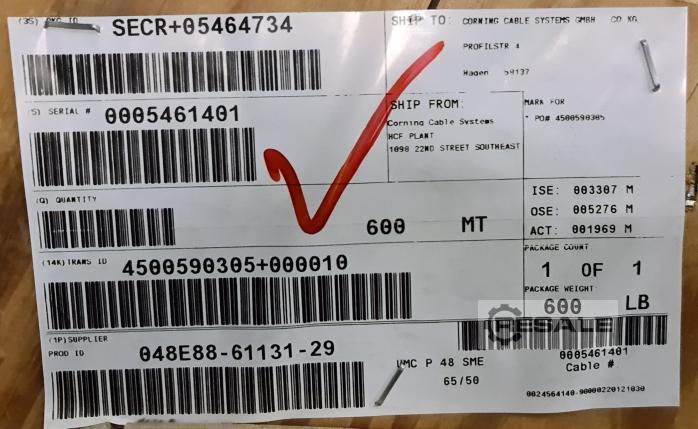

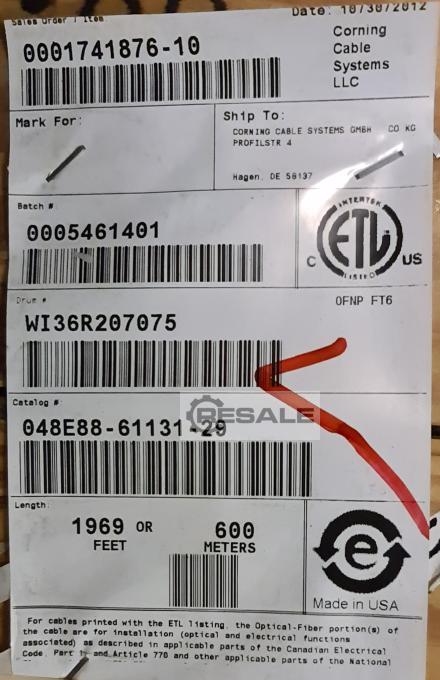

Part Number 048E88-61131-29
Product Description MIC ® Unitised Tight-Buffered Cable, Plenum, 48 F, Single-
mode (OS2)
EAN Code 4056418190594
