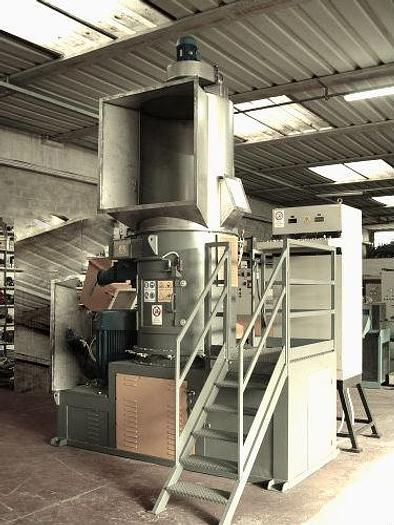

COSTARELLI 1000 mm diameter barrel

average output 500 kg/h depending on materials and moisture content,, including : LOADING BELT, 1,4 Kw drive 7,0 mt.lomg x 0,9 mt.wide constructed in sturdy painted steel structure,, side walls,, PVC belt AGGLOMERATOR, 1000 mm. diam.steel barrel with infeed 115 kW, Hp 150 main engine, side door for inspection and knives replacement, replaceable inner lining 400 mm high grease lubricating system for engine bearings oil lubricating station for hub bearings, through automatic pump with oil pressure indicator bearing cooling system through circulating water, 0,75 kW oleodynamic power station electrovalve for closing/opening unloading door Hp 3,0 steam vacuum drive control switchboard and panel appx dimensions: L 3.470 mm.x W 1.500 mm. bent steel structure, electric motor DIAGONAL AUGER, 1,5 Hp drive diam +/-150 mm. – width +/- 1000 mm. – length +/- 1500 mm. – bolted upper cover, de-pressure unit 1 opening inspection window, 1 inspection glass, inner protection grill, safety limits The line is offered TOTALLY RECONDITIONED ——————————————- optional -available separately new ROTO-CLASSIFIER with loading auger and bag filling structure, capacity: 500 kg/h
