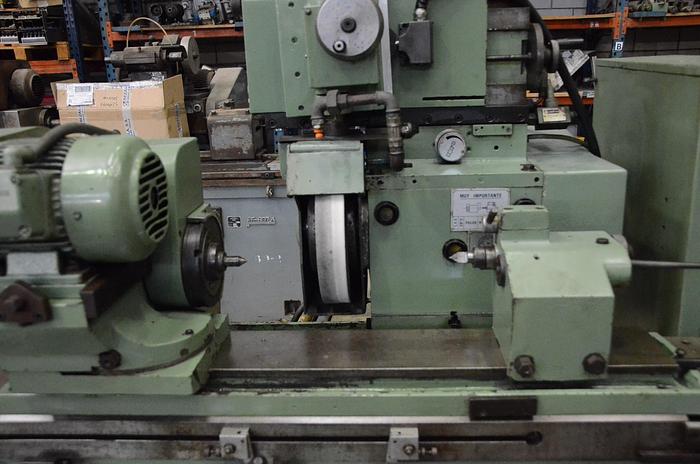

DANOBAT M50

Distance between points: 500 mm, Height of points: 100 mm, Ø of the grinding wheel: 300 mm, Normal grinding wheel width: 25 mm, Maximum usable width of the grinding wheel: 50 mm, Grinding wheel hole: 127 mm, Workpiece holder head: 75-110-150-220-275-375-550-750 rpm, Tilt table in degrees: 8º, Hydraulic table speed: 0.10/6 m/min, Automatic fast forward: 20 mm, Advance in depth: 0.10 to 1 mm, Plongee feed rate: 0.10-5 mm/min, Fine-tuning time regulation in seconds: 60s, Workpiece holder head motor: 2 speeds: 0.38/0.55 HP, Motor head for grinding wheels: 3 CV, Hydraulic pump motor: 0.5 HP, Cooling pump motor: 0.10 HP, Internal grinding apparatus: 0.75 HP, Points: Morse 4 and 3, Weight approx.: 1600 Kg
Verkäufer Angebot Nr. resale 4612
