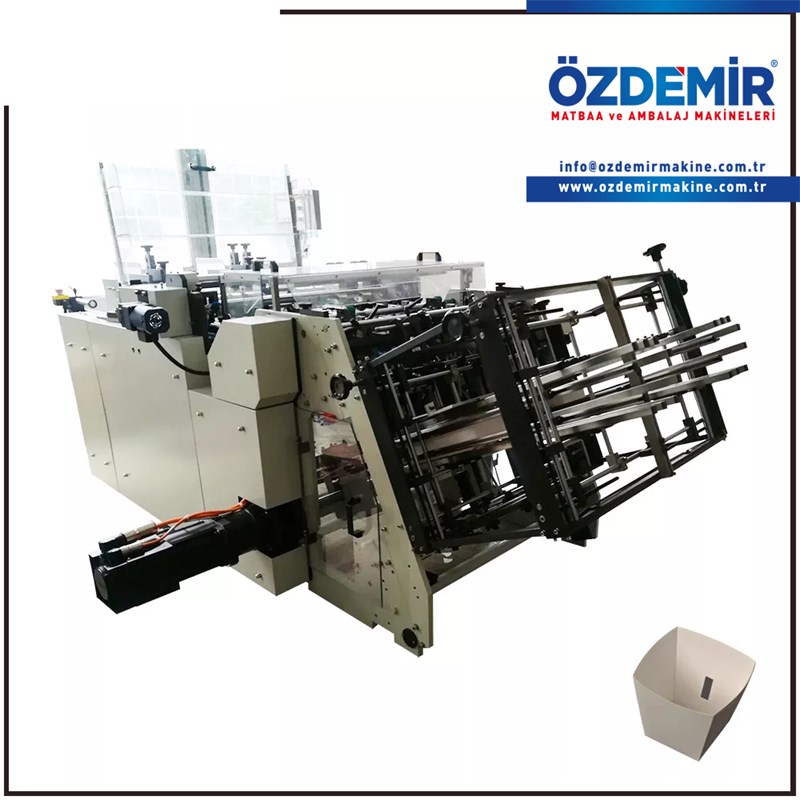

Dayuan L2OOO - 2A

Impressions=0 m, Condition=
New
, Availability= 2026-07-07,

Can mount the same box on two strips at the same time
German servo motor system
German Siemens and Schneider electrical system
PLC touch screen
Glueing system with motor control
Capability to work in different ways with plate
Gathering system at delivery unit can be adjusted and connected according to job
Voltage: 380V/50Hz
Covering area: 4.0* 1.4M
The total power: 8Kw
Maximum production speed: 400pcs/min
Air pressure: 0.6Mpa (Dry and clean compressed air)
Materials: Paper board 200-600gsm; corrugated board paper with thickness not exceed 1.5mm
Blank length(L): 100mm – 450mm
Blank length(B): 100mm – 450mm
Height of side flaps(H): 15mm – 260mm
Height of side flaps+lid(HI): 50mm – 260mm
Conicity: 5°-40°
