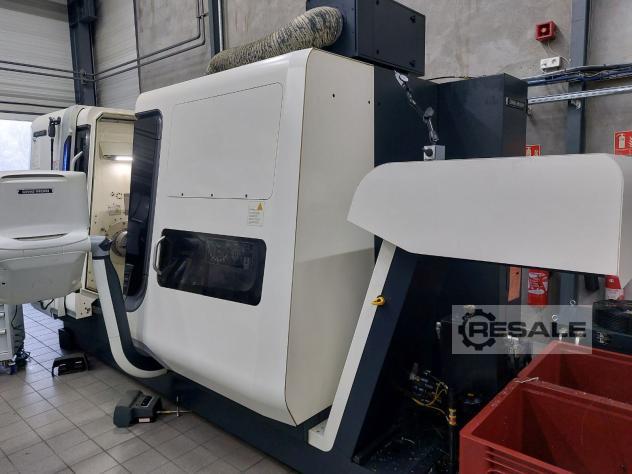

CNC Drehzentren DMG GILDEMEISTER CTX BETA 800

Drehdurchmesser:700 mm

Drehlänge:800 mm

Machine-Details
Stock-No. 1105-04033
Type of machine CNC Turning- and Milling Center
Make DMG MORI
Type CTX beta 800
Year of manufacture 2009
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Germany
Delivery time IMMEDIATELY
Freight basis ex site

Technical details
turning diameter max. 390 mm
turning length 800 mm
control Sinumerik 840D sl Siemens
greates pass round over bed 700 mm
turning speed range - main spindle 20 - 4.000 min/-1
power capacity - main spindel 45 / 35 kW
max. Torque 700 Nm
C-Axis 360 °
spindle nose 220h5
chucking diameter - mm
max. bar capacity 102 mm
number of toolpositions 12 pos.
Number of driven toolspositions 12 pos.
power capacity driven tool-stations 14,2 kW
Spindle speed - driven tool stations 40 - 10.000 min -1
tool taper VDI 40 DIN69880
max. Torque 34 Nm
x-axis 290 mm
z-axis 800 mm
rapid traverse X: 30 / Z: 30 m/min
feed power 5,6 / 7,4 kN
quill stroke 300 mm
tension force 6,3 kN
taper of center MK 5
total power requirement - kW
weight of the machine ca. 6.5 t
dimensions of the machine ca. 5.0 x 3,5 x 2,1 m
Accessories
Documents
Chip conveyor
Tool drive mechanisum
Coolantsystem 12 bar
C-axis
hollow chuck unit 104mm
tool setting
Chuck
Tailstock
Additional information
CNC - Turning- and Millingcenter
DMG MORI - CTX beta 800

- Sinumerik Operate und ShopTurn 3G
Spindle ISM 102
TAILTOCK
CHIP CONVOYER

- WITHOUT Steady-Rest / WITHOUT Tools
