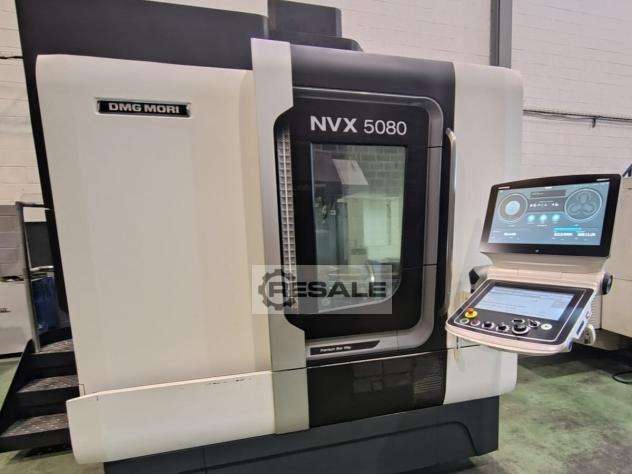

Vertikale CNC Bearbeitungszentren DMG MORI NVX 5080/50

Year of construction: 2015
CNC controller: M-730UM
Axes
X-axis travel mm: 800
Y-axis travel mm: 530
Z-axis travel mm: 510
Distance spindle nose - table surface mm: 150-660
Feed rates m/min: 5
Rapid traverse m/min: 30
Worktable
Number of pallets: 1
Table dimensions mm: 1100x600
Max. workpiece weight kg: 1000
Spindle
Spindle speed rpm: 8000
Spindle drive power kW: 30/22 (25%ED/cont)
Spindle torque Nm: 304
Tool system
Tool holder: MAS-BT 50
Tool magazine slots: 30
With free neighboring places mm: 240
With occupied neighboring places mm: 120
Max. Tool Length mm: 350
Max tool weight kg: 20
Tool-to-tool time s: 2.34
Equipment
Chip conveyor
Internal cooling lubricant supply
4th axis DDRT-260X
Custom Macro common variables (200)
Machine running times
Under power: 35896
Spindle Working: 26915
Rated power kVA: 52
Basic machine dimensions / weight
Length mm: 3300
Width mm: 3000
Height mm: 2800
Weight kg: 6870
Verkäufer Angebot Nr. resale CNC0673
