Stock# U2459

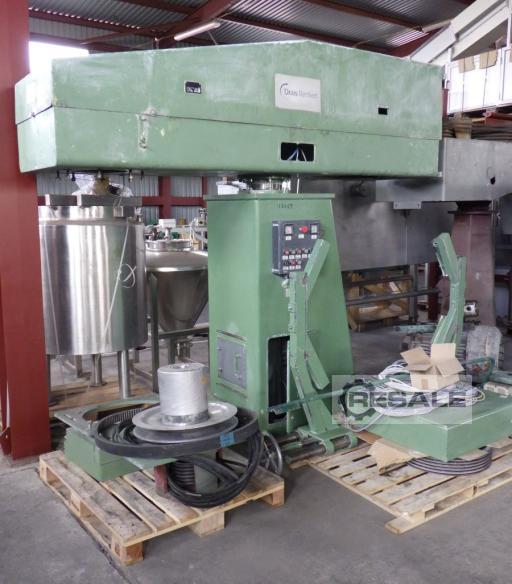

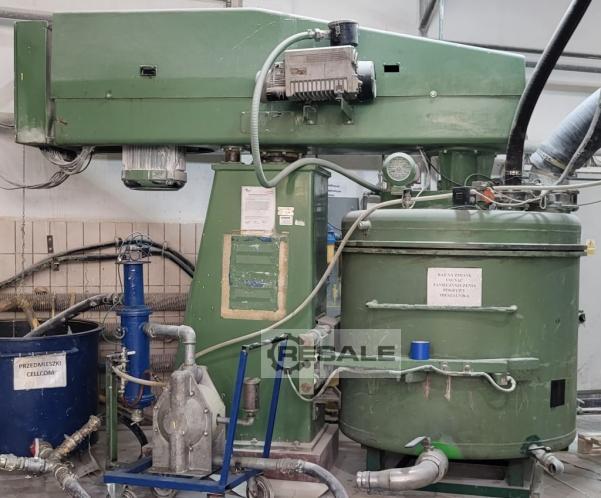

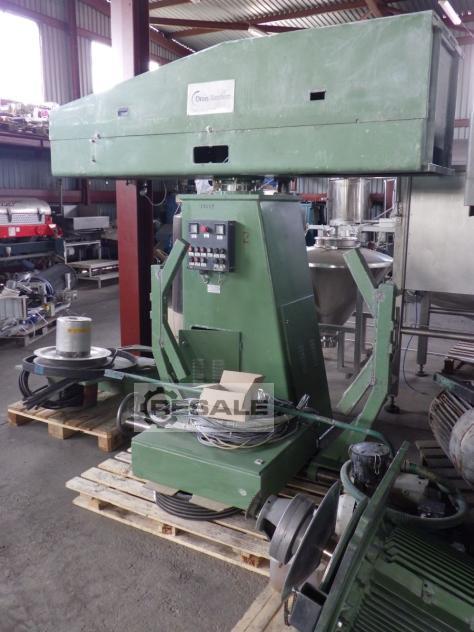

Used dissolver by Drais (DE) model RN 3-45 AS VAC. Contact parts
designed in carbon steel. Machine is designed for work on vacuum.

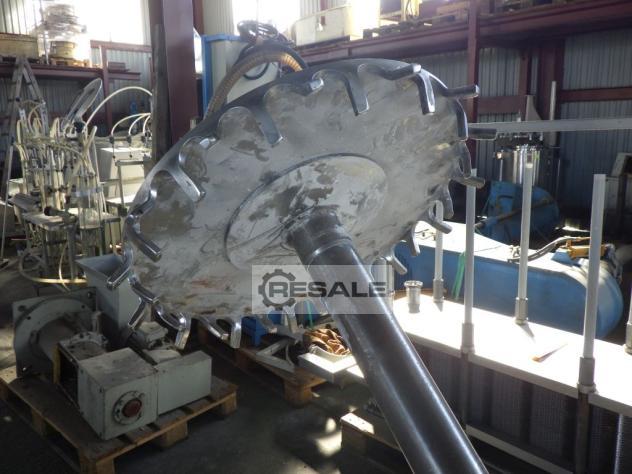

Mixer has single shaft with working length 105 cm and toothed disc
with diameter 690 mm. Shaft is driven by el motor 45 kW, 1460 rpm,
400/690 V, 50 Hz. Working rotation of shaft up to 600 rpm. Mixer has

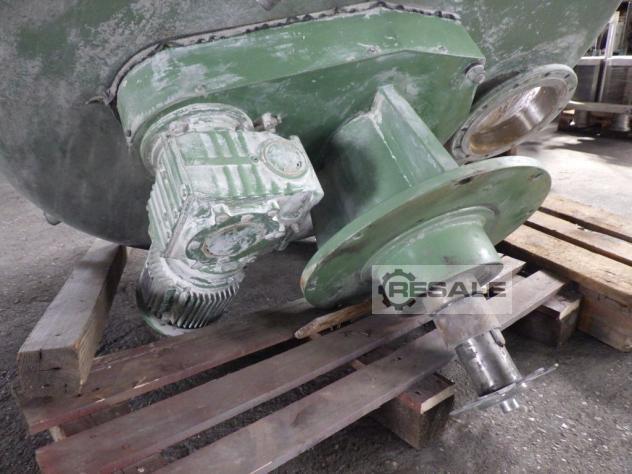

also side wall scrapper, driven by el motor 1.5 kW, 1410 rpm, 440 V,
50 Hz and gearbox. Working rotation of scrapper up to 26 rpm. Machine

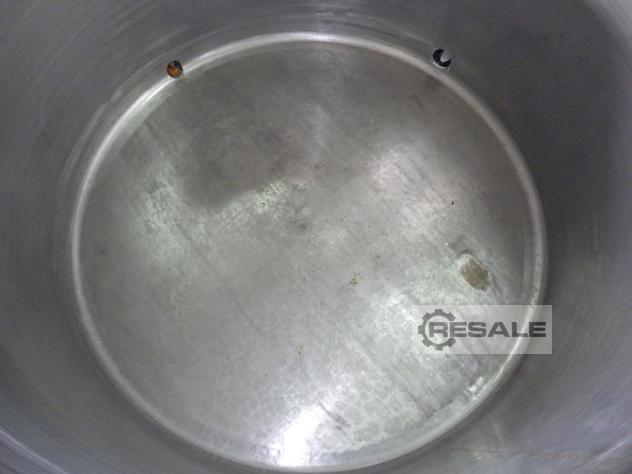

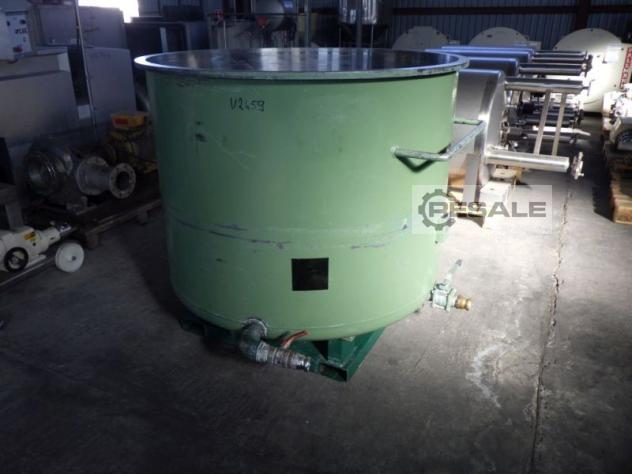

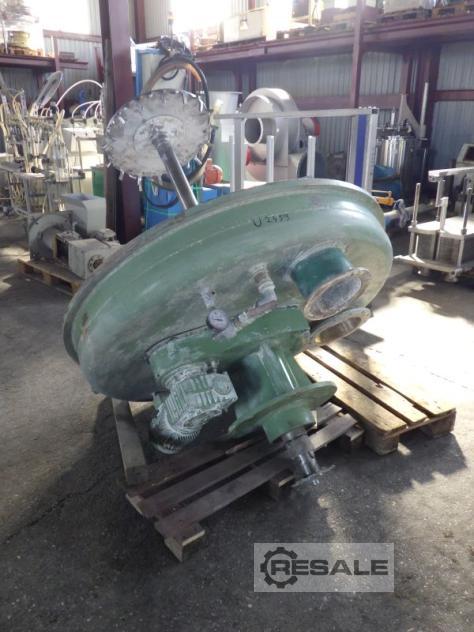

has top cover and mixing pan with total volume 2000 l. Mixing pan has
internal diameter 1465 mm x length of straight side of wall 1160 mm.
Mixing pan has two side wall discharge outlets with valves, and bottom
supports for work with forklift. Dissolver is rised/lowered
hydraulically. Rise up to 145 cm. Hydraulic pack is driven by el.
motor 1.5 kW, 1420 rpm, 230/400 V, 50 Hz. Mixer is equipped with
vacuum pump by Tepro (PL) and local control panel. Last time used in
chemical industry.
Polen
05850 Ozarow Mazowiecki
