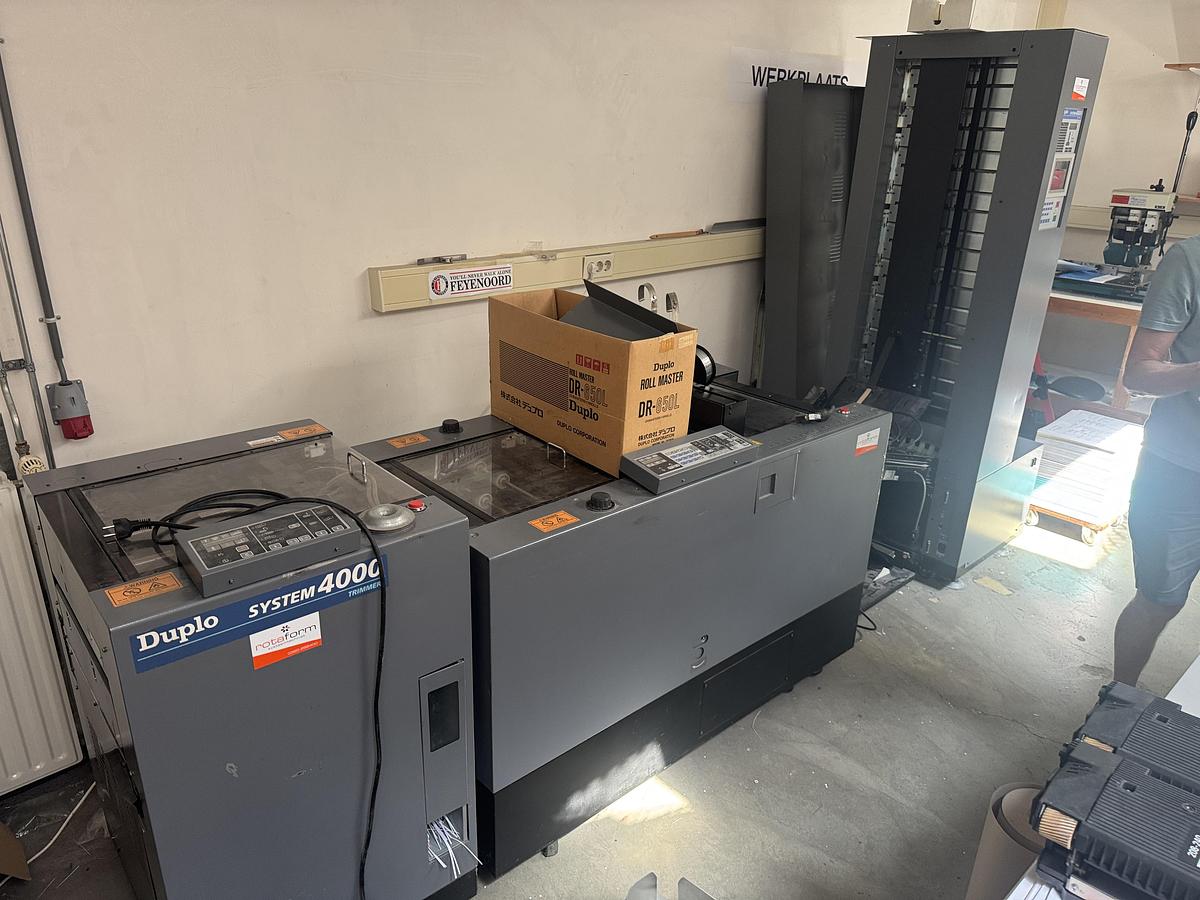

Duplo System 4000

Duplo system 4000, consisting of the following components:, Duplo DC-10/60 collator, Duplo DBM400 bookletmaker (Stitcher+folder, 2xHohner 48/5S), Duplo DBM400t trimmer, Duplo DBM SS1 short stacker, Duplo DC-4000 bridge, Duplo 4000 LUL-HM, Duplo DC12JR vibrating table, this line can collate up to 10.000 sets per hour or 4,200 booklets per hour, Max size: 350x500 mm, Paper weights: 40-300 grams, bin capacity: up to 65 mm, 10 bins, suction feed with built in pump, double sheet and missing sheet control, Collating speed: 10000, Booklet making speed: 420, Bins: 10, Max size: 350x500 mm
