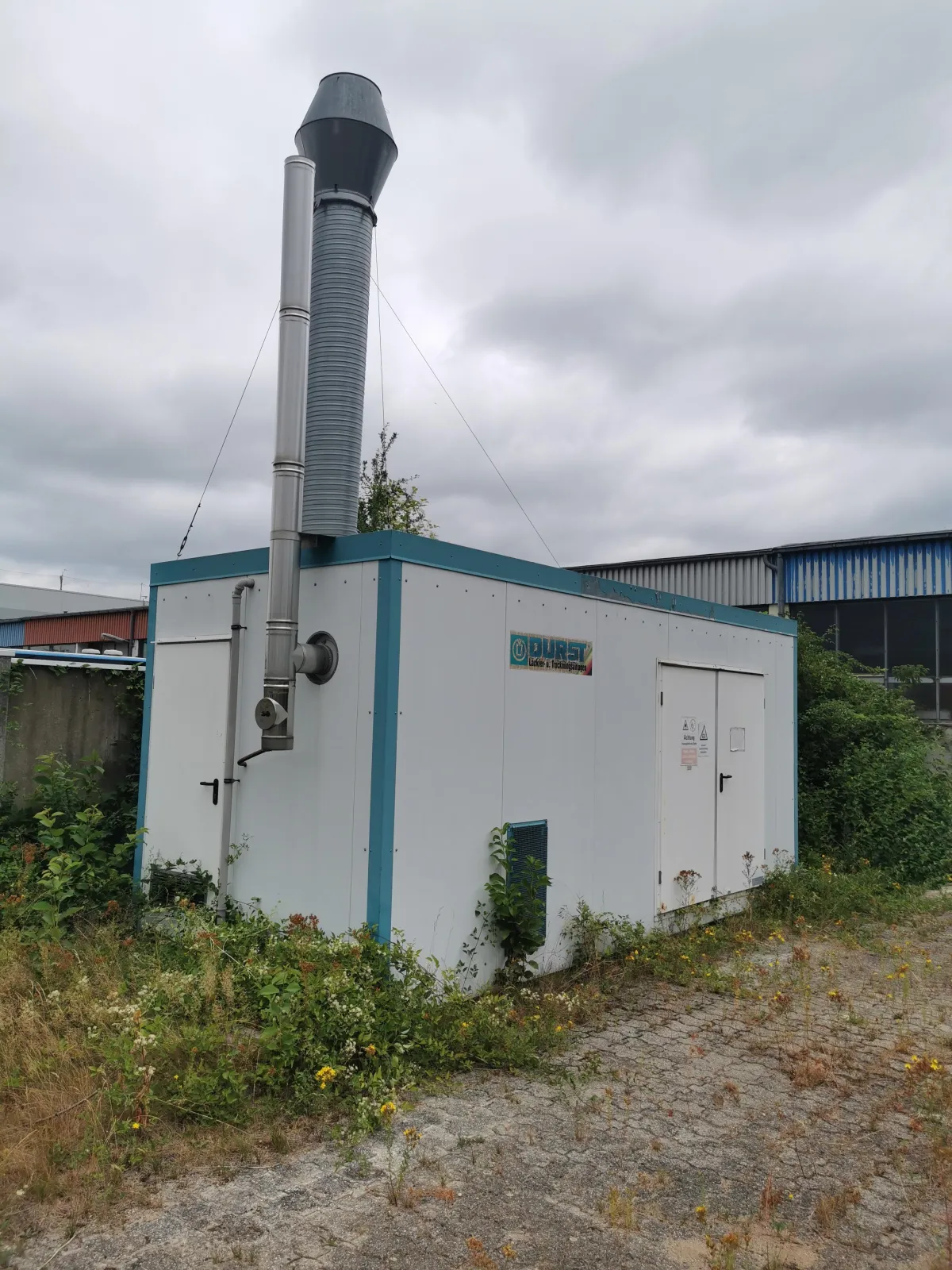

Durst D-SLK 12 Diagonal, AIRSEC Vario 1/2 Lacksystem
gebrauchtGeprüfter Anbieter
Preis anfordern
Direkt an den Anbieter
1 / 8
Technische Daten
· ID 169788422Verfahrenstechnik
- Zustand
- gebraucht
- Baujahr
- 2008
- Standort
- Bonn, Germany
Identifikation
HerstellerDurst
ModellD-SLK 12 Diagonal, AIRSEC Vario 1/2
Positionsnummer9140047
Technik
Stückzahl1
Beschreibung
Manufacturer: Durst
Type: D-SLK 12 Diagonal, AIRSEC Vario 1/2
Year of manufacture: 2008
Heating medium: liquid gas propane, gas blower burner for natural gas E
Dimensions
- Spray cabin interior: 4000 x 2400 x 2550 mm
- Container exterior overall: 6000 x 2500 x 2800 mm
- Aggregate room interior: 2400 x 1850 x 2300 mm
Air Performance
- Fresh air supply: up to 10000 cubic meters per hour, motor rating 2.2 kW
- Exhaust air: up to 10000 cubic meters per hour, motor rating 2.2 kW
- Air change rate: up to 408 times per hour
- Exhaust discharge velocity: approximately 14.1 to 17 m per second
Heating
- Maximum heating output: 90 kW
- Maximum circulating air temperature for drying: up to 75 to 80 degrees C
- Average annual natural gas consumption: approximately 3.4 Nm3 per hour
- Maximum consumption at 90 kW: approximately 9.5 Nm3 per hour
Filtration
- Pre-filter: bag filter, filter class G3, filter area 2.6 square meters
- Ceiling filter: filter class G5, filter area 6 square meters
- Paint mist filter: non combustible per DIN 4102, filter area approximately 3 square meters
Lighting and Electrical
- Lighting: 3 phase reflector luminaires, 696 Watt connected load, approximately 1000 Lux in the
- work area
- Total electrical connected load: approximately 5 kW
Equipment and Features
- 2 universal aggregate units type D-CU 12 with radial fan units and direct drive motors
- Automatic switch over between spraying and drying mode
- High temperature resistant alloy steel air heater suitable for oil or gas firing
- Modulating gas blower burner with flame monitoring and gas safety train
- Stainless steel flue gas line
- Galvanized steel fresh air intake, exhaust line with deflector hood, and ceiling distribution duct
- Ceiling filter with foldable filter elements and fine filter mats
- 2 wing entrance door, double walled, electrolytically galvanized and coated, with safety glass
- viewing panels, dimensions 2000 x 2000 mm
- Escape door and aggregate room door, double walled, self closing, dimensions 900 x 2000 mm
- each
- Wall mounted control cabinet with lockable main switch, automatic temperature control 0 to 100
- degrees C with digital display, continuous pressure display, filter monitoring, safety thermostat
- with automatic burner shut off at 120 degrees C, and operating hours counter
Find more here - .ucymachines/
Contact us at - sales@ucymachines
Type: D-SLK 12 Diagonal, AIRSEC Vario 1/2
Year of manufacture: 2008
Heating medium: liquid gas propane, gas blower burner for natural gas E
Dimensions
- Spray cabin interior: 4000 x 2400 x 2550 mm
- Container exterior overall: 6000 x 2500 x 2800 mm
- Aggregate room interior: 2400 x 1850 x 2300 mm
Air Performance
- Fresh air supply: up to 10000 cubic meters per hour, motor rating 2.2 kW
- Exhaust air: up to 10000 cubic meters per hour, motor rating 2.2 kW
- Air change rate: up to 408 times per hour
- Exhaust discharge velocity: approximately 14.1 to 17 m per second
Heating
- Maximum heating output: 90 kW
- Maximum circulating air temperature for drying: up to 75 to 80 degrees C
- Average annual natural gas consumption: approximately 3.4 Nm3 per hour
- Maximum consumption at 90 kW: approximately 9.5 Nm3 per hour
Filtration
- Pre-filter: bag filter, filter class G3, filter area 2.6 square meters
- Ceiling filter: filter class G5, filter area 6 square meters
- Paint mist filter: non combustible per DIN 4102, filter area approximately 3 square meters
Lighting and Electrical
- Lighting: 3 phase reflector luminaires, 696 Watt connected load, approximately 1000 Lux in the
- work area
- Total electrical connected load: approximately 5 kW
Equipment and Features
- 2 universal aggregate units type D-CU 12 with radial fan units and direct drive motors
- Automatic switch over between spraying and drying mode
- High temperature resistant alloy steel air heater suitable for oil or gas firing
- Modulating gas blower burner with flame monitoring and gas safety train
- Stainless steel flue gas line
- Galvanized steel fresh air intake, exhaust line with deflector hood, and ceiling distribution duct
- Ceiling filter with foldable filter elements and fine filter mats
- 2 wing entrance door, double walled, electrolytically galvanized and coated, with safety glass
- viewing panels, dimensions 2000 x 2000 mm
- Escape door and aggregate room door, double walled, self closing, dimensions 900 x 2000 mm
- each
- Wall mounted control cabinet with lockable main switch, automatic temperature control 0 to 100
- degrees C with digital display, continuous pressure display, filter monitoring, safety thermostat
- with automatic burner shut off at 120 degrees C, and operating hours counter
