TECHNICAL DATA:

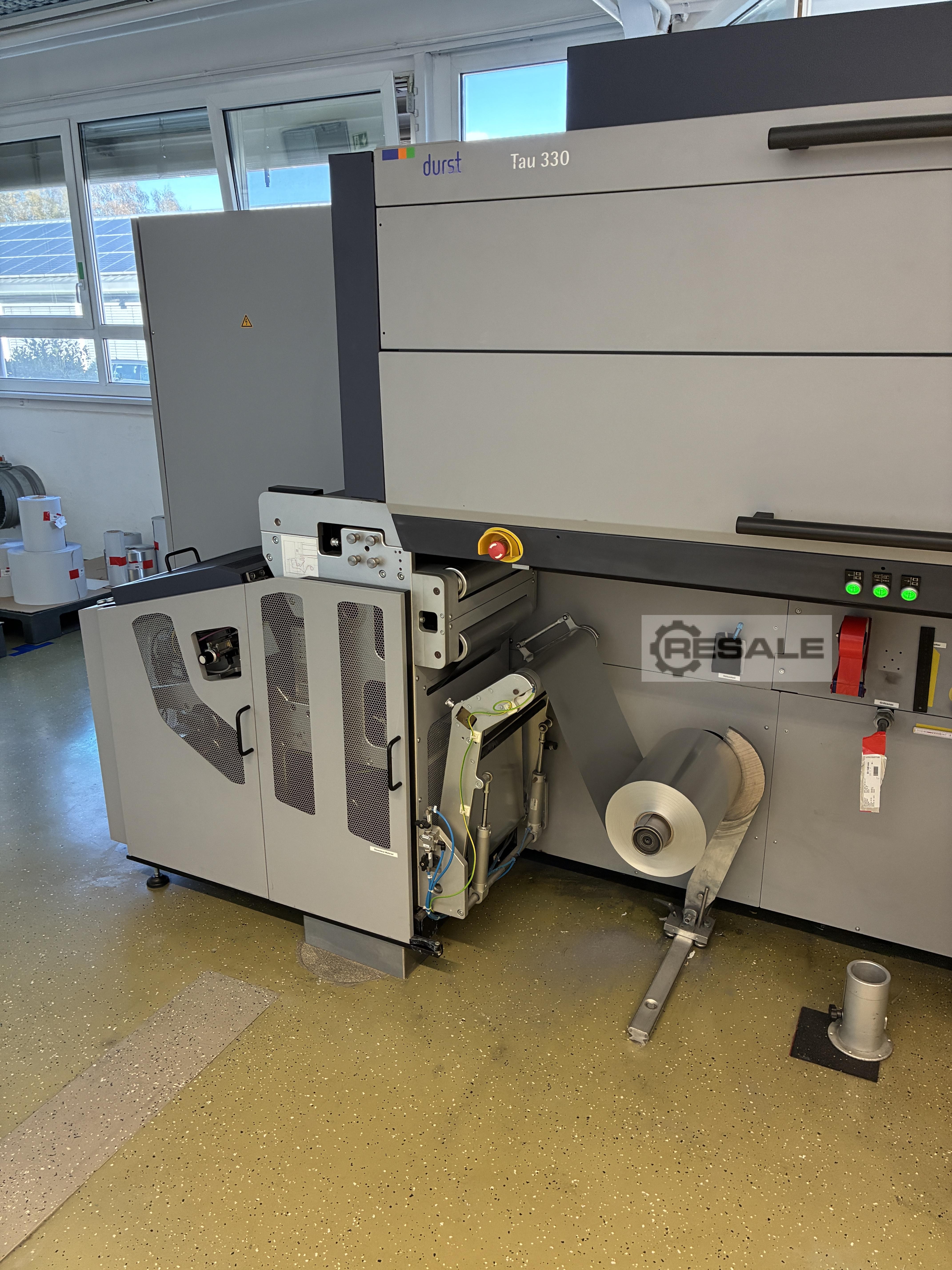

Type: 5-color digital UV inkjet press with separate white print
unit
Length: 4550 mm
Width: 1750 mm
Height: 2200 mm
Weight: 3000 kg
Electrical power consumption: 39 kW / 60 A
Electrical supply: 400 V, 3 Ph, 50 Hz
Auxiliary power: 230 V, 50 Hz (chiller)
Air consumption: 100 NL/min
Cooling capacity requirement: 18 kW (60,000 BTU/h)
Data interfaces: USB 2.0, Ethernet
COOLING UNIT (RECOLD RE-C 160 INERT)
Cooling capacity: 16,000 W
Refrigerant type: R134a
Refrigerant charge: 4.5 kg
Power consumption: 8.5 kW
Maximum current: 15 A
PRINTING TECHNOLOGY:
Technology: Piezo DOD
Printheads: Xaar 1001
Resolution: 720 × 360 dpi
UV DRUING SYSTEM:
UV lamps: • 1× Hönle UV GOZ, 7.2 kW
• 1× Hönle UV FOZ, 7.2 kW
Pinning: LED pinning after print units 1 and 5
Exhaust system: integrated lamp cooling and odor reduction unit
INERT GAS CURING SYSTEM:
Type: oxygen-reduced curing unit
Gas consumption: < 6 m³/h
WEB AND PRINTING PARAMETERS:
Process: roll to roll
Web width: 350 mm
Print width: 330 mm
Repeat length: 10–1000 mm
Register accuracy: ± 50 µm
Print tolerance: • Single distance: ± 0.2 mm
• Cumulative per meter: ± 1.5 mm
Speed: • 4-color mode: up to 48 m/min
• White ink: up to 30 m/min
• Adjustable speed range: 18–48 m/min

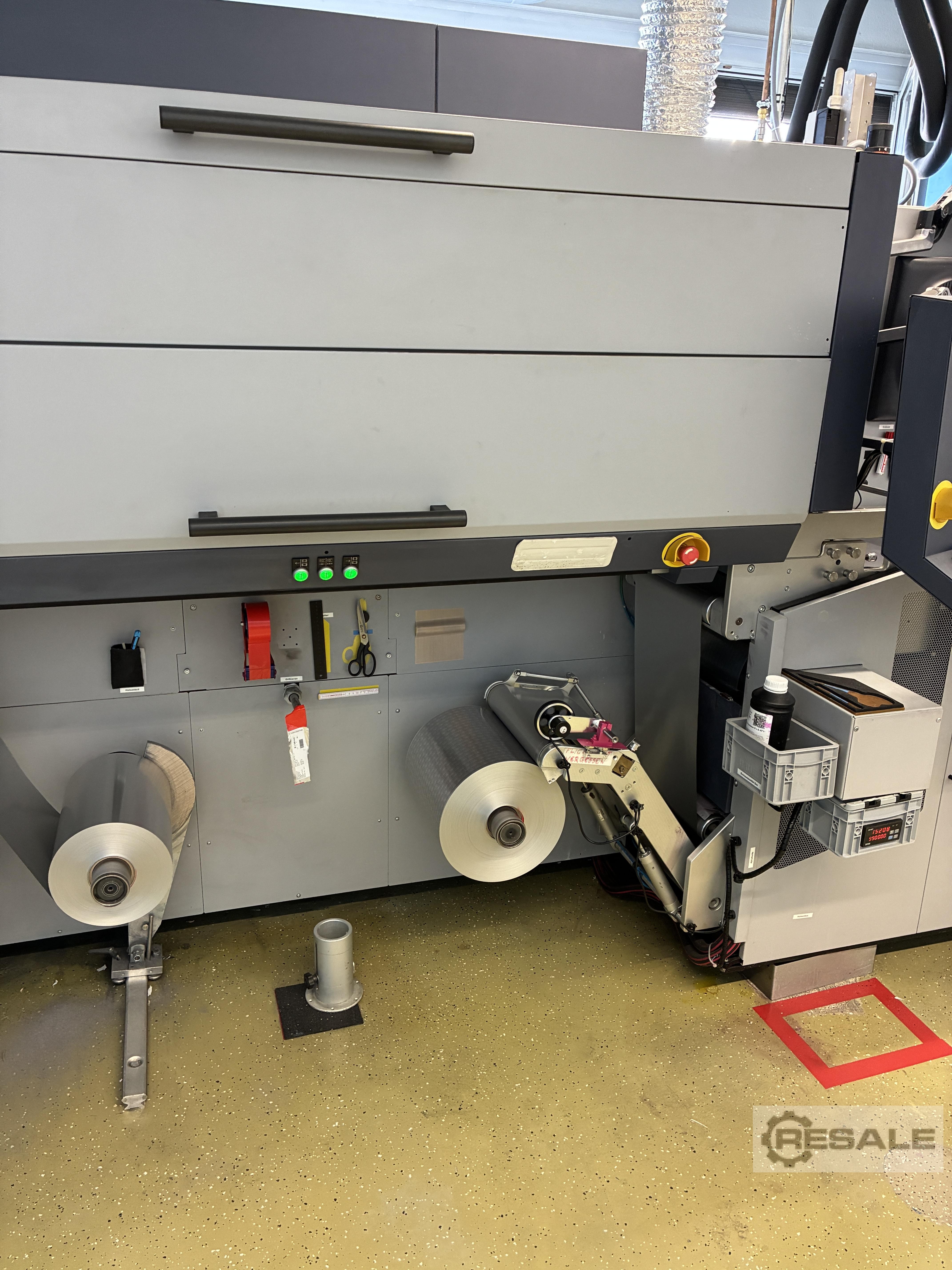

WEB TREATMENT AND HANDLING:
Corona unit: 1500 VA
Web cleaning: Polymer roller LC 350
Antistatic units: 3 pieces
Edge guiding: before print module
Roll diameter (unwind/rewind): max 610 mm
Roll weight (unwind/rewind): max 120 kg
Shafts: pneumatic expanding shafts, 76 mm
Splice table: integrated cutting and splicing table
SUPPORTED SUBSTRATES:
• Coated and uncoated paper
• PP, PE, PVC, POPP (white or transparent)
• Aluminum foil (coated or uncoated)
• PET films
• Acrylic coatings
• CN-based primers
• PET-based primers
• Hybrid dispersion primers
INK SYSTEM:
Ink type: UV-curable, low migration
Food & pharma compliance: indirect contact
Free monomers: < 10 ppb
Ink laydown: 8.2 g/m² at 100% area coverage
Cartridge replacement: possible during printing
Cartridge empty signal: optical or acoustic
PRINTHEAD MAINTENANCE:
Ink recirculation system: enclosed design
Automatic daily cleaning: suction cleaning before operation
Manual cleaning: lint-free cloth
SOFTWARE:
• RIP software: Esko Artwork
• ICC profile management
• Supported data formats: PDF-X1, PDF-X3, EPS, AI
• Internal storage for designs
• Setup storage for unlimited substrate types

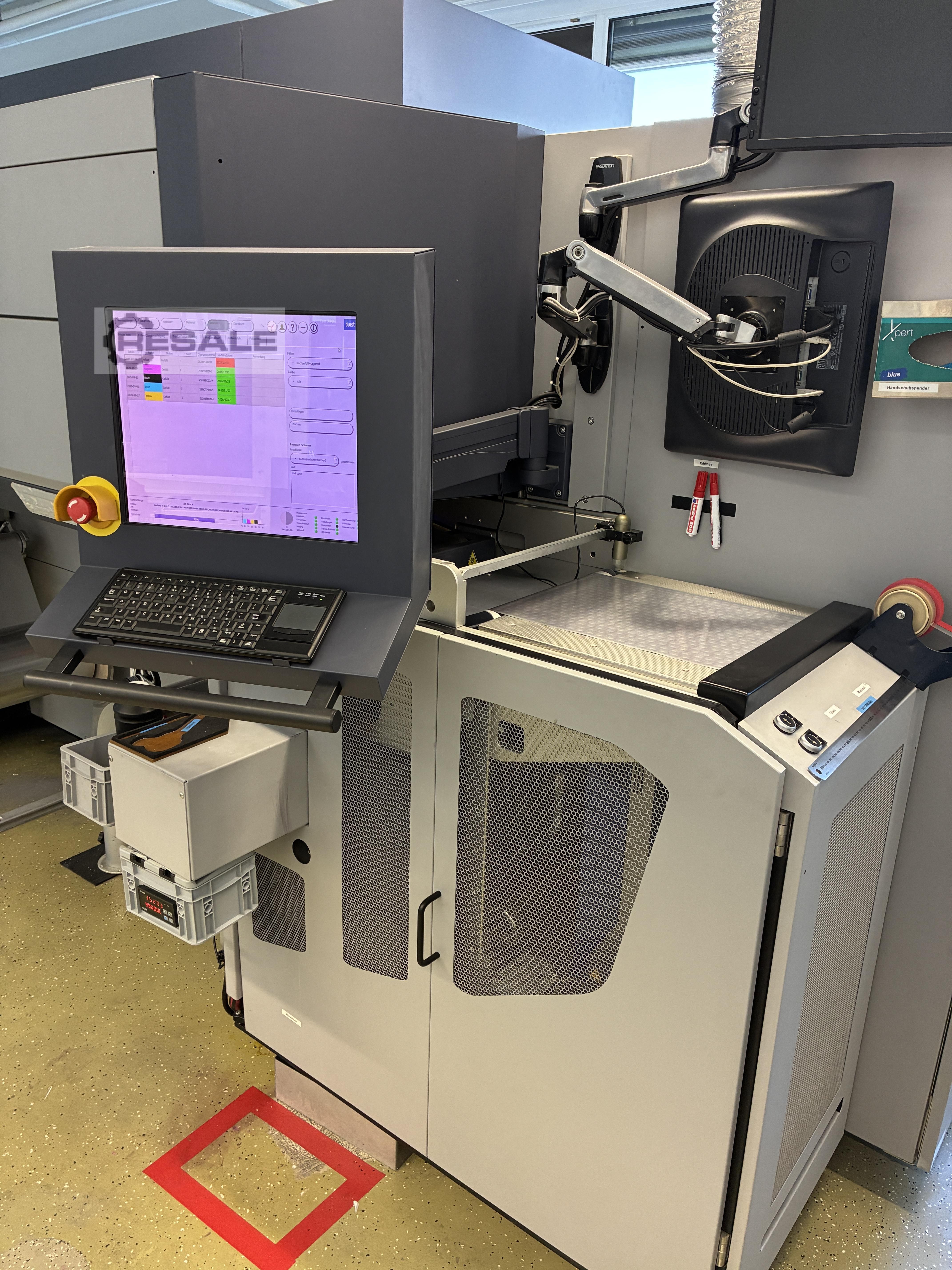

• Touchscreen operator panel
CONTROL AND SAFETY:
• UV lamp overheating and function monitoring
• Machine interlock on UV system failure
• Ink level warning
• Emergency stop
