Eagle Pro Pack 240 PRO – Advanced X-Ray Inspection for Packaged
Products, The Eagle Pro Pack 240 PRO is a high-performance X-ray
inspection system designed for maximum product safety, quality
assurance, and production efficiency., Ideal for food, pet food,
pharmaceutical, and consumer goods applications,, this system combines
cutting-edge detection technology with robust industrial design.,
---------------------------------------------------------------, Key
Features & Benefits, - Reliable detection of foreign contaminants,
even in dense or metallized packaging, - Multiple quality checks in a
single inspection, - High inspection accuracy at high production
speeds, - Hygienic, stainless-steel construction for demanding
production environments, Technical Specifications, Inspection Area, -
Maximum inspection width: up to 242 mm, - Maximum inspection height:

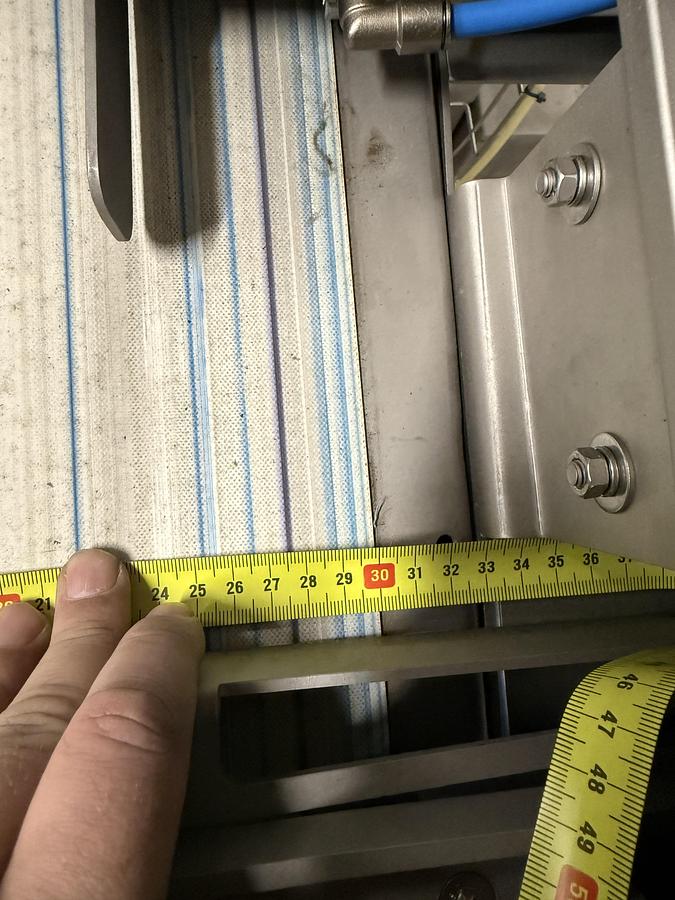

up to 101 mm, - Conveyor width: approximately 298 mm, Detection
Capabilities, - Detection of metal, glass, stone, mineral bone, and
dense plastics, - Product integrity checks:, - Missing or broken
items, - Shape and position verification, - Fill level and mass/weight
control (2-, 3- or 5-zone analysis), X-Ray Technology, - Detector
resolution:, - Up to 0.4 mm (PXT™ dual-energy), - 1.2 mm

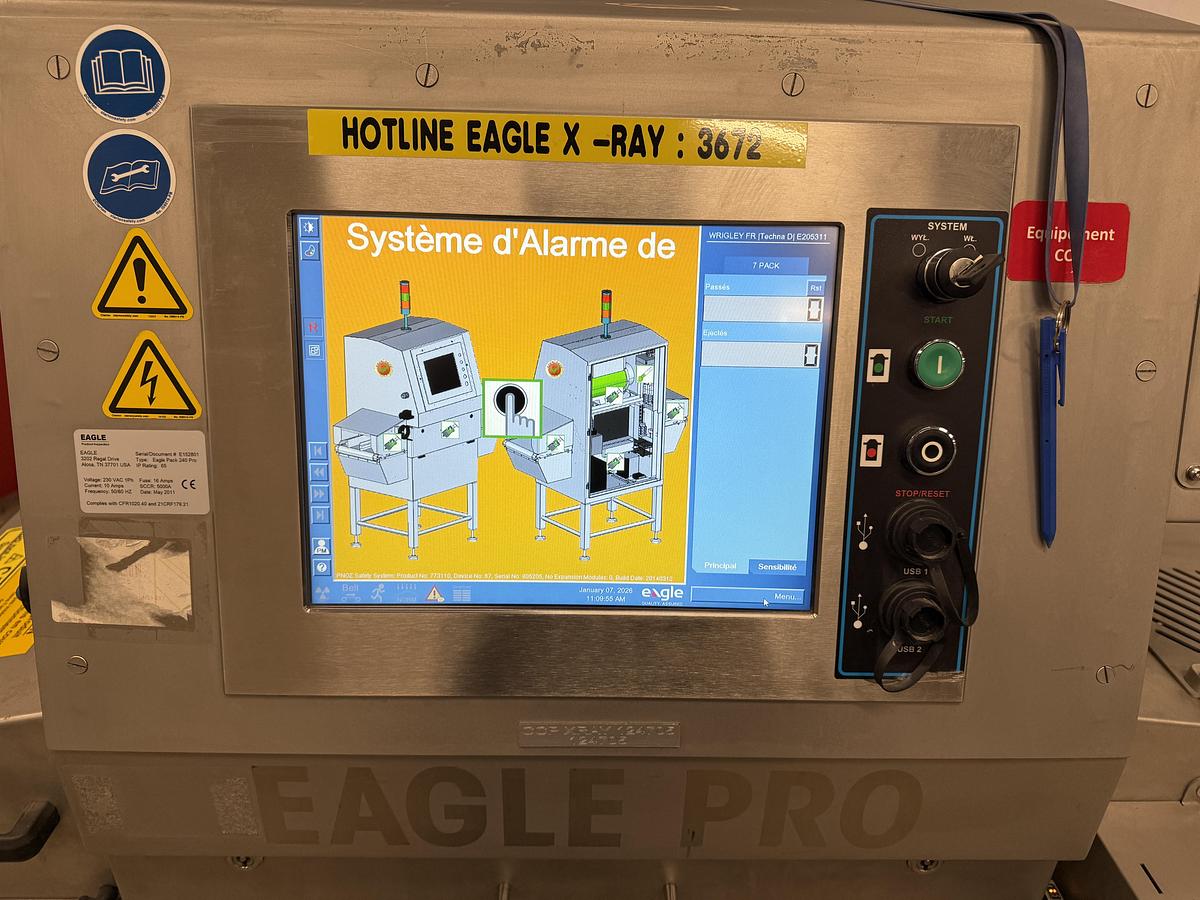

single-energy, Software & Controls, - 15” full-color touchscreen
HMI, - Eagle SimulTask™ PRO image processing software, - Windows 10
Enterprise operating system, - Remote diagnostics via TeamViewer™,
Conveyor & Speed, - Variable belt speed: 17 – 114 m/min, depending
on configuration and product, Connectivity, - USB 2.0, - Ethernet
10/100/1000, - Optional EtherNet/IP Fieldbus integration, Construction
& Safety, - Hygienic stainless-steel design (IP65/IP66 optional), -
Low radiation emission: < 1 µSv/h, - Compliant with international
X-ray and electrical safety standards (CE / FDA), Operating
Conditions, - Operating temperature: 0 – 40 °C, - Power supply: 230
V AC, 50/60 Hz, single phase, Why Choose the Eagle Pro Pack 240 PRO?,
- Superior detection performance, - Increased production uptime, -
Reduced false rejects, - Designed for modern, high-speed production
lines
