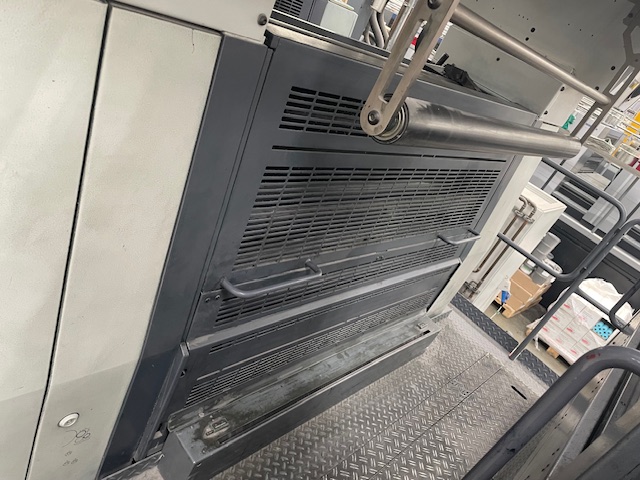

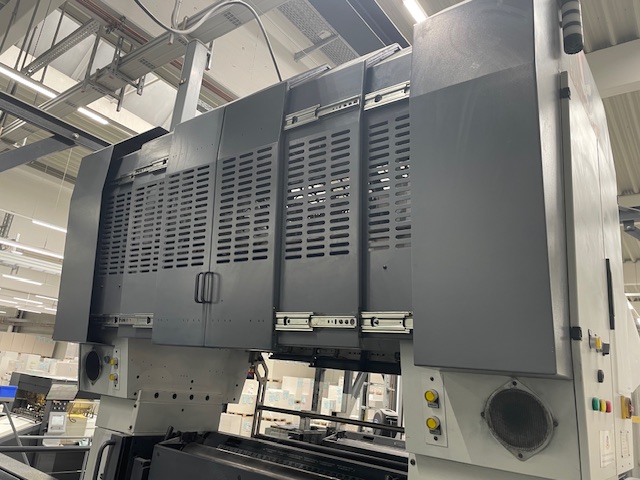

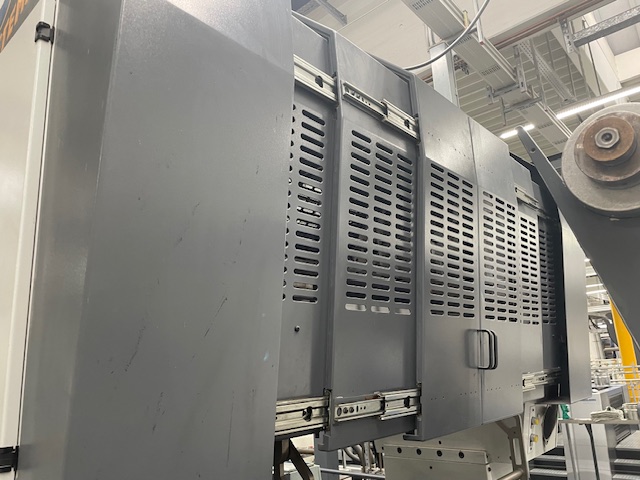

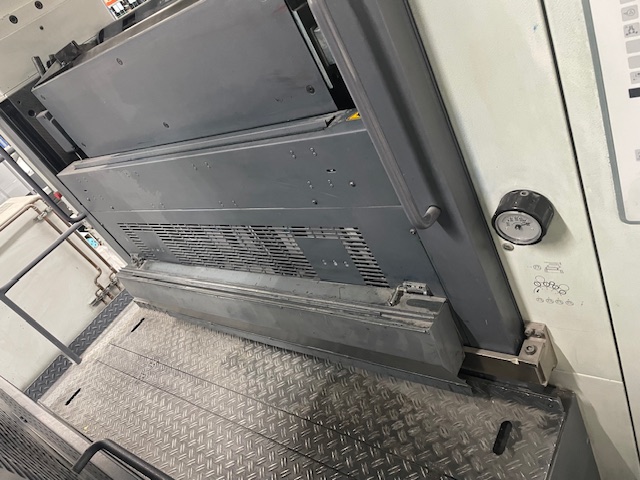

Eagle Systems CFM 106-20K Eco-Eagle Foil Module Verpackungsanlagen

Description:

Eagle Systems CFM 106-20K Eco-Eagle Foil Module

Consisting of:

1. Bi-directional differential shaft (x2)

2. Automatic pneumatic connection

3. SS Dual hardened helical gears both shafts

4. Quick release rubber module spreader rollers

5. Lower in-feed roller assembly for proper foil path

6. Heavy duty linear thrust bearings

7. Precise air transducers

8. Air pressure control sensor

9. PID closed loop air system control

10. “Eco-Power” Minimal power servo motor control

11. Closed loop sensors for foil speed control

12. Fail safe closed loop sensors for multi foil roll control

13. Foil position encoder

14. Fail safe wiring system

15. Solid state relays

16. Mode indication by lights

17. Fully automatic control

18. Fail safe press guarding

19. Full Module guarding

20. Foil shaft lifting beam

21. All electrical and pneumatic controls contained within the module.

22. Proprietary software and controls (on no cost license)

23. Software updates free for the life of the machine.

24. Legs to connect the module to the press.

25. Telecommunication package for 24 hour remote upgrades and service.

26. Installation and Training labor included.

27. Mid Range Infeed Roller

28. Non-Telescoping feature

Features:

1. CE, CA and UL approved components.

2. “Foilsave” system consisting of;

2.1 “Foilstop” mode

2.2 “Foilsoft” mode

2.3 “Foilreverse” mode

3. “Foillock” mode

4. Adjustable foil skew

5. Via internet teach mode for all sensors.

6. Quick release sensor positioning.

7. End of foil roll alarm

Machine Performance Requirements for acceptance.

The Eco-Eagle will perform as follows:

1. Run a minimum width foil of 2 inches or 50mm.

2. Run any combination of variable widths up to the maximum printing width of the printing press.

3. Run a full width of foil to the full width of printing press.

4. The speed range of the Eco-Eagle unit will handle any of the widths above at a maximum speed of 15,000 sheets per hour (SPH).

5. Maximum foil roll diameter of 560 (22”) on 152mm (6”) core.

6. Cold Foil operational speed may vary per job based on the substrate, foil and adhesive.

7. Recommended cold foil speeds will range from 9,000 SPH to 12,000 SPH due to properties of the adhesives, foil and substrates.

8. The speed of the Eco-Eagle is determined by the speed of the printing press.

9. Eagle Systems does not make any claims or guarantees of the ability of the adhesives and foils bonding to all substrates.

Cold Foil Make Ready Table

Spare Shaft for preload for CFM106-20K

Comes with preload cradle for tower#1

Custom Manufactured and Designed

Foil Loading Crane – for Turn-key Package

Electric Hoist & Electric Trolley and Wireless Remote Control

Excluded;

1. Offloading, rigging and lifting equipment for installation.

2. Air compressor. Compressed air is required at 7 bar (100psi) adjacent to the machine.

3. Electrical power. Required at 3 phase, earth, 380-480VAC, 50Hz or 60Hz, 50 amps

4. Provision of internet connection.

5. Foil Lifting / Loading Crane.

6. Travel, hotel and living expenses of pre-installation site inspection, installation engineers, training personnel.

Find more here - .ucymachines/

Contact us at - sales@ucymachines
380 - 480vac 3ph 30KVA 50 or 60hzCE 2014/30/EU
