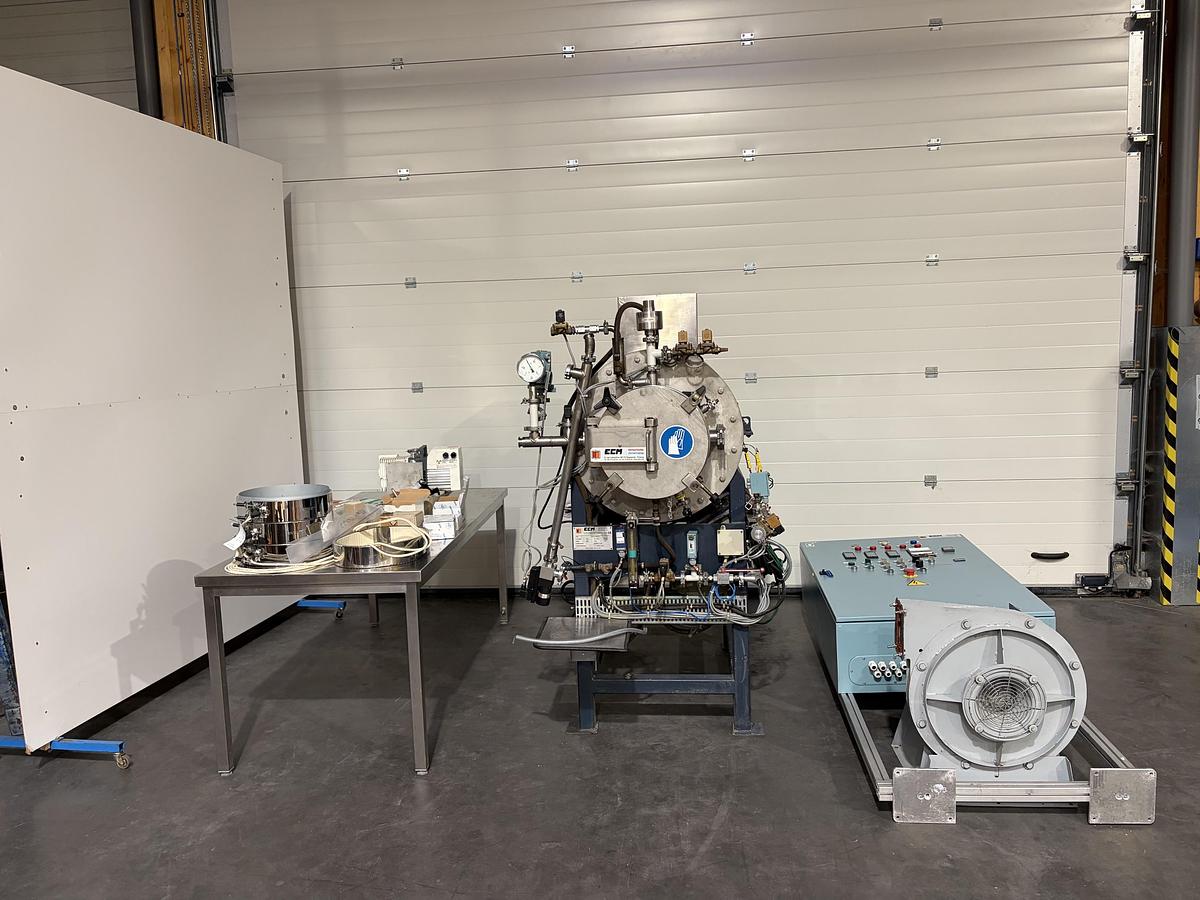

ECM FOUR A MOUFLE

ECM glovebox oven., Volume: 17 litres, Maximum temperature 530°C, Equipped with 4 perforated tablets., - 350x200 mm, This oven is equipped with, - 1st stage vacuum pumping group, - 1 water circuit, - 1 circuit of neutral gas and hydrogenated neutral gas, - 1 accelerated cooling group, - 1 control cabinet, General characteristics, - Maximum oven height: 1700 mm, - Maximum installation width: 2000 mm, - Maximum installation length: 2500 mm, - Worktop height: 1100 mm, -, Heaters, - 6 ceramic heating elements unit power: 1500 W, - Voltage: 380 V Three-phase, -, Gas circuit, N2H2 (6%H2), - supply pressure : 1.5 bar, - Flow rate: 3 m3 / h, N2, - Supply pressure: 1.5 bar, - Flow rate: 30 m3 / h, Water circuit, - Flow rate: 0.5 m3/h, - Pressure 2 to 3 bar, Electricity, - Power supply: 3x400 VAC, - Maximum current: 20 A, Operating temperature (°C): 530 , Internal usable dimensions (mm): Length: 700 mm / diameter: 310 mm , Machine weight (kg): 429 , Dimensions utiles intérieure (mm): Length: 700 mm / diameter: 310 mm
