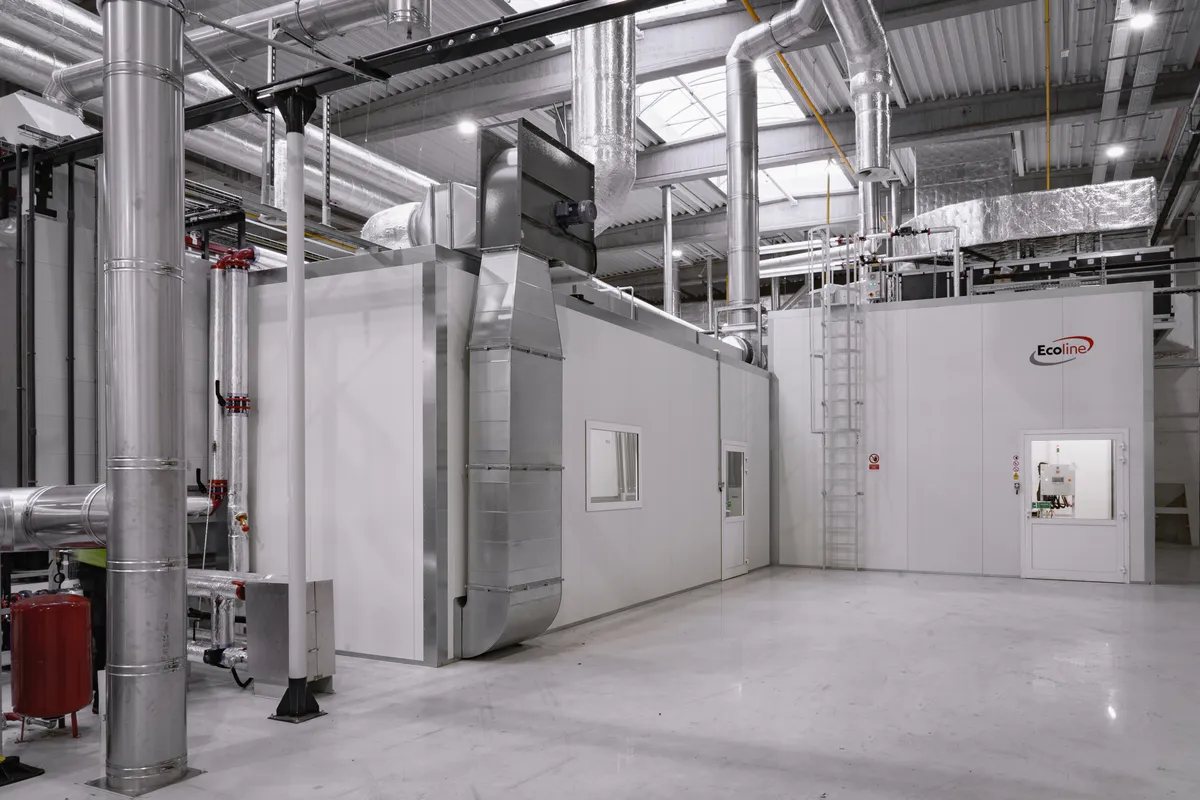

Ecoline Automatic Powder Coating line Pulverbeschichtungsanlage

We are offering for sale an Automatic Powder Coating Line with full encapsulation of the production process manufactured by Ecoline.

Machine is new. Has not been used!

Elements included in the line:

- Surface preparation tunnel
- Drying oven
- Cooling tunnel after drying
- Manual cabin for short series
- Dielectric automatic cabin for quick color change - GEMA applications
- Cleanroom to maintain constant operating parameters throughout the year (temperature and humidity)
- Polymerization oven
- Cooling tunnel after firing
- Automatic mono rotary conveyor

Additional Information:

- 3-zone tunnel entirely made of stainless steel. The first section is heated by an external exchanger and equipped with a coalescing oil separator and bag filtration. Additional equipment includes an automatic chemical dosing system from Endress Hauser.

- Drying oven with very good insulation with air curtains and hoods at the exit with temperature regulation.

- Automatic cabin for quick color change, fully made of PVC, with two platforms for operators to repaint difficult products. The cabin includes a color center for quick color change, a cyclone for paint recovery and final filter. The cabin also has two-axis manipulators and optical gates that read the dimensions of the details. Manipulators are equipped with automatic Gema applications

- A Cleanroom with an air handling unit and a chiller water unit maintains constant working conditions in the cabin area throughout the year. Humidity of 55% and temperature of 22 degrees Celsius, which can be adjusted. Additionally the entire zone is under positive pressure, which eliminates the risk of inclusions appearing in the painting area.

- A very well insulated polymerization oven with air curtains ensures even temperature distribution over the entire space. Operating range up to 220 degrees Celsius.

- Post-drying cooling tunnel made of sandwich panels, equipped with injection and exhaust channels thanks to which it is possible to recover waste heat from the details. It is also possible to use heat in winter to heat other rooms.

- Transport system equipped with drive groups, automatic chain tension and automatic chain cleaning and lubrication system.

- 10 automatic guns and 4 manual guns - all electrostatic .Gas Oven - with exchanger. Additionally, the system is equipped with RFID tags thanks to which we can monitor the process for each detail with the ability to read data such as the temperature at which the detail was fired, parameters of the chemicals in which was washed, etc.

Transition Window:

- Width: 0.8 m
- Height: 1.95 m

Maximum Workpiece Dimensions:

- Width: 0.6 m
- Height: 1.75 m
- Length: 1 m

Maximum Weight: 80 kg/mb

Average Production Speed: 1.5 m/min
