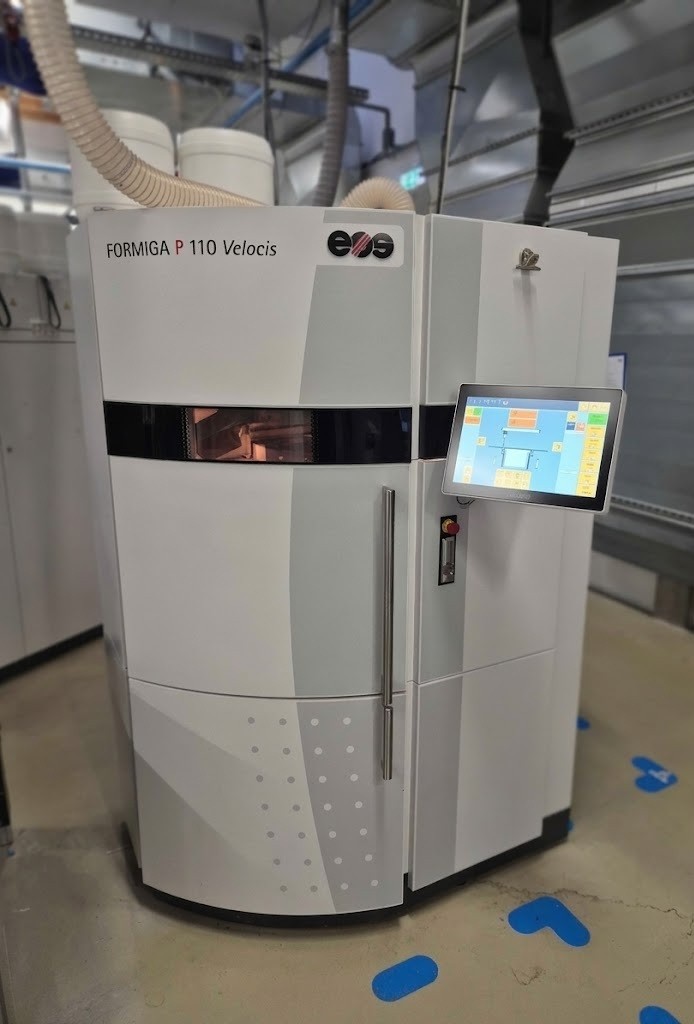

EOS P110 Velocis

Build Volume
200 x 250 x 330 mm (7.9 x 9.8 x 13.0 in)


Laser Type
CO₂; 1 x 30 W


Presicion Optics
1 F-theta-lens(es); 1 High-speed scanner(s)


Scan Speed
up to 5.0 m/s (16.4 ft/s)


Power Supply
1 x 16 A


Power Consumption
max. 5.0 kW / typical 3.0 kW


Machine Dimensions
1320 x 1067 x 2204 mm (52.0 x 42.0 x 86.8 in)


Recommended Installation Space
min. 3200 x 3500 x 3000 mm (126.0 x 137.8 x 118.1 in)


Weight
approx. 600 kg (1323 lbs)


Software
EOS SYSTEM SUITE










Materials & Processes


EOS has extremely high materials expertise and a comprehensive portfolio of highly developed polymer materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the target property profiles in the best possible way for your products.  Explore below which polymer materials and processes are compatible with the FORMIGA P 110 Velocis.



Verkäufer Angebot Nr. resale 9593
