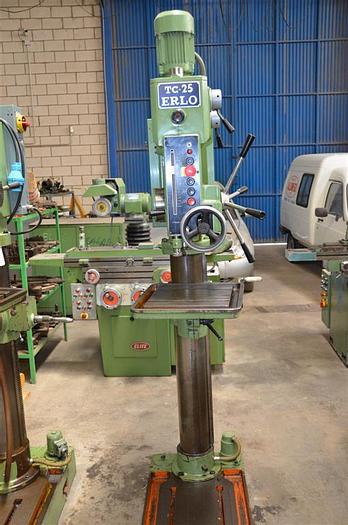

ERLO TC 25

Tall: 2.217 mm, Weight: 440 Kg, Width: 480 mm, Long: 755 mm, Voltage: 220/380 V, Spindle cone: MORSE 3, Total power: 1,10 CV, Base width: 480 mm, Base length: 755 mm, Ø of the column: 150 mm, Transmission type: Gearbox, Ø max. drill steel: 25 mm, Shoulder of spindle column: 320 mm, Spindle motor power: 1 Cv, Ø maximum threaded in steel: M 30, Spindle travel: 180 mm, Motor power cooling: 0,10 Cv, Max spindle column axis distance: 320 mm, Table tilt angle: YES, Maximum distance from table to spindle: 846 mm, Minimum distance from the table to the spindle: 60 mm, Spindle speed range: 8, Minimum/maximum spindle speed: 134/970 rpm, Specification: Column
Verkäufer Angebot Nr. resale 4235
