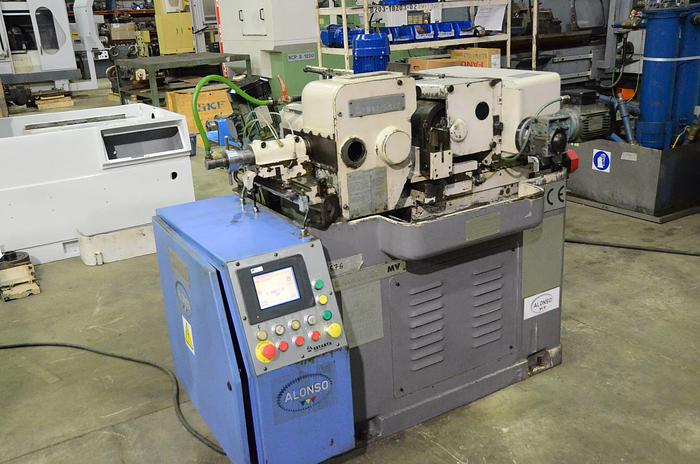

ESTARTA 301 MV Spitzenlosschleifmaschinen

Dimensions: 1520x1020x1260mm, Weight: 1550 kg, Grinding wheel gap: 1.5/50mm, Ø min / max to be rectified: 1.5/50mm, Max.width of wheel in feed grinding: 125mm, Max. width of grinding wheel in plunge grinding: 125mm, Working wheel dimensions (od x id x width): 300x125x175mm, Øext.min. working wheel: 220mm, Min. ext. Ø of the working wheel: 220mm, Max. profile depth of the working wheel: 8mm, Max. depth of working wheel profile: 8mm, Driving wheel dimensions (od x id x width): 220x125x125mm, Drive wheel dimensions (OD x ID x W): 220x125x125mm, Min. ext. Ø of the drive wheel: 165mm, Øext.min. driving wheel: 165mm, Max. depth of the drag wheel profile: 8mm, Driving wheel motor power: 0,75Kw, Working wheel motor power: 7,5Kw, Drive wheel motor power: 0,75Kw, Angle of inclination of the working grinding head: +/- 5º, Angle of inclination of the drive wheel head: -2/+5º, Angle of inclination of the work wheel head: +/- 5º, Angle of inclination of the drag wheel head: -2/+5º
