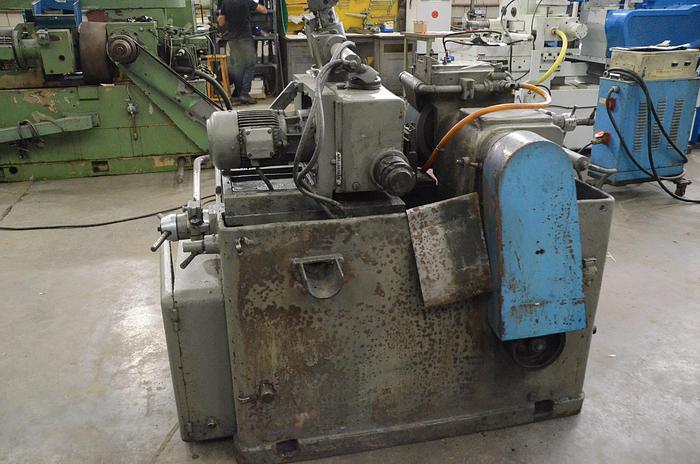

ESTARTA 310

Grinding wheel dimensions (od x id x width): Ø350 x Ø200 x 150 mm, Ø min/max to be rectified: 1.5 - 75 mm, Peripheral speed of grinding wheel (m/s): 1,700 RPM, Regulating wheel width: 150 mm, No. of regulating wheel speeds: 4, Min/max speed of regulating wheel (r.p.m.): 21, 30, 42, 310, Regulating wheel dimensions (od x id x width): Ø250 x Ø140 x 150 mm, Grinding wheel width: 150 mm, Maximum length to be rectified in plongeé: 150 mm, Grinding wheel head motor power: 15 HP, Total power: 16.5 hp, Long: 1.654 mm, Width: 1.500 mm, Tall: 1.535 mm, Weight: 2.200 kg
