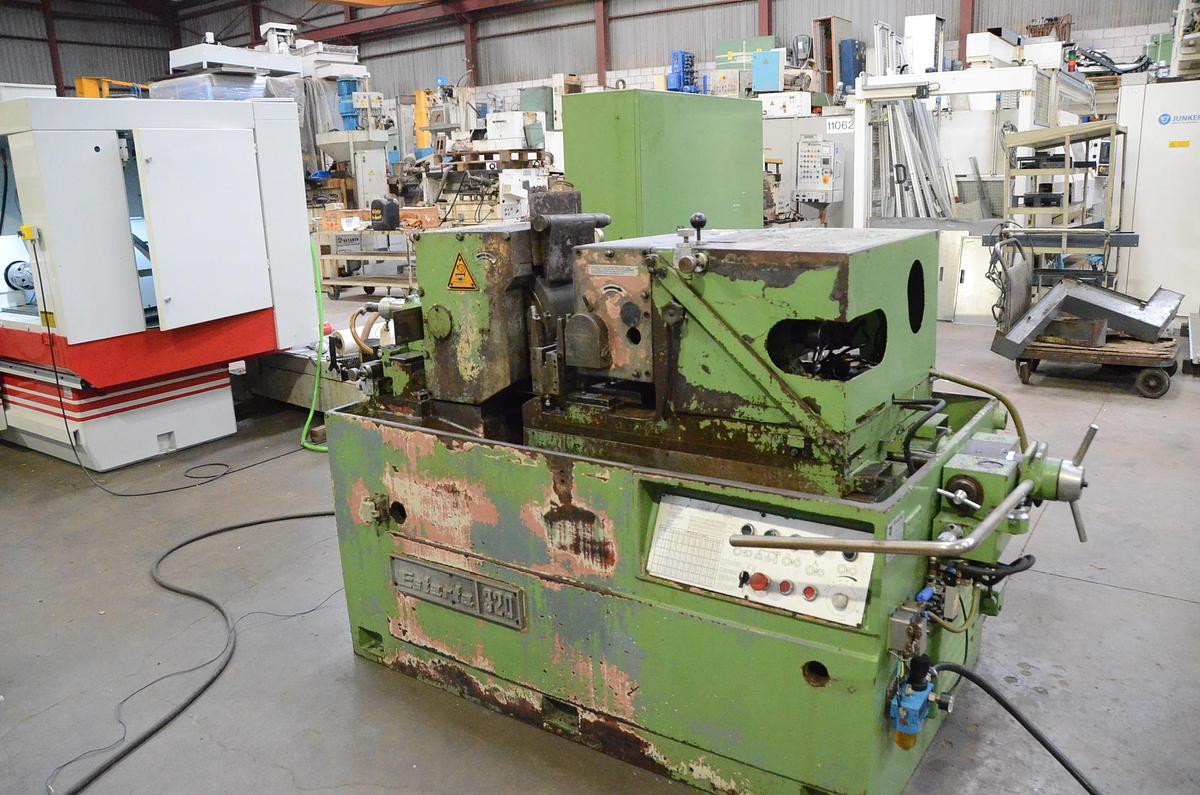

ESTARTA 320 Spitzenlosschleifmaschinen

Ø grinding wheel dimensions (od x id x width): Ø 406 x Ø 203 x 200 mm, Grinding wheel dimensions (od x id x width): Ø 406 x Ø 203 x 200 mm, Ø min/max to be rectified: 1.5 / 100 mm, Ø min / max to grinding: 1.5 / 100 mm, Min/max speed of regulating wheel (r.p.m.): 10 / 250 rpm, Regulating wheel width: 200 mm, Dimensions of the regulating wheel (OD x ID x W): Ø 270 x Ø 140 x 200 mm, Min / max regulating wheel speed (r.p.m.): 10/250 rpm, Maximum length to be rectified in plongeé: 200 mm, Regulating wheel dimensions (od x id x width): Ø 270 x Ø 140 x 200 mm, Grinding wheel head motor power: 15 kW, Grinding wheel width: 200 mm, Maximum infeed grinding length: 200 mm, Tall: 1420 mm, Motor power grinding wheelhead: 15 kW, Long: 2020 mm, Width: 1300 mm, High: 1420 mm, Weight: 4200 kg
