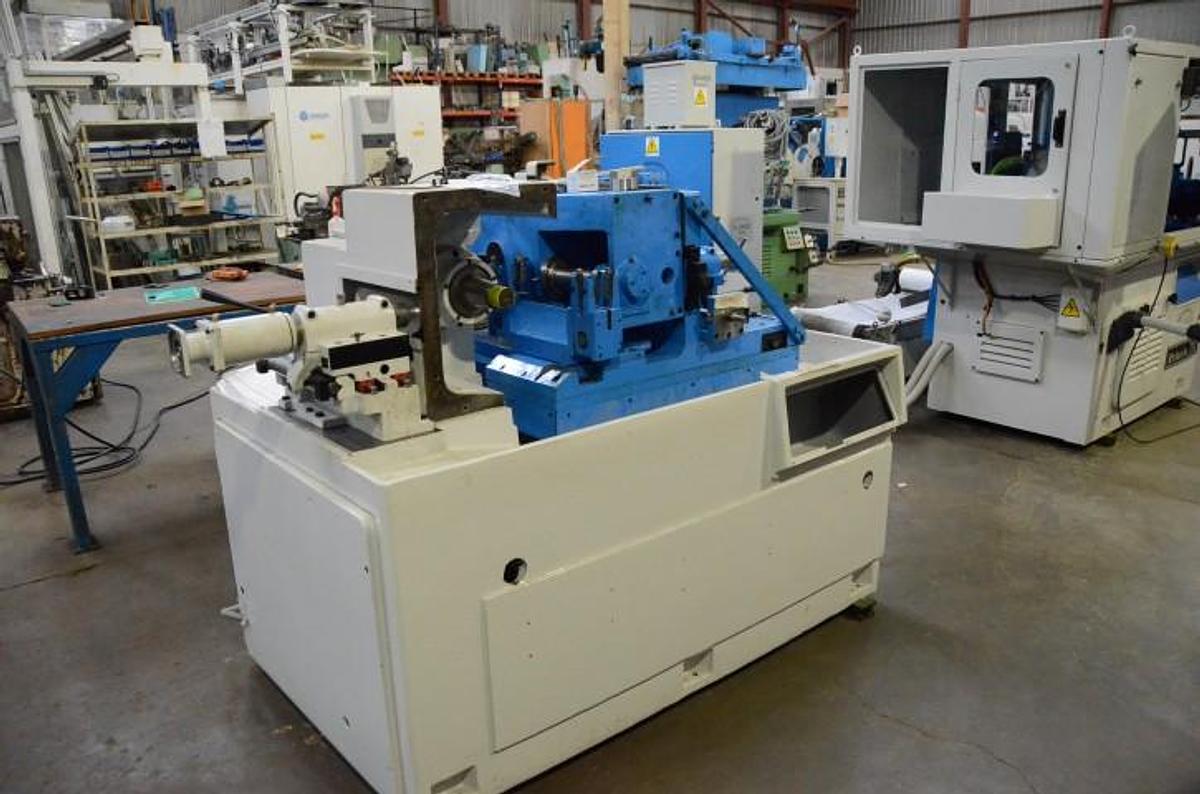

ESTARTA 320 Spitzenlosschleifmaschinen

The ESTARTA 320 Centerless Grinding Machine is a used industrial machine designed for efficient and precise grinding tasks. It features a grinding wheel with dimensions of Ø 406 x Ø 203 x 200 mm, and can handle a diameter range from 1.5 to 100 mm for grinding applications. The machines regulating wheel, sized Ø 270 x Ø 140 x 200 mm, allows for adjustable speeds ranging from 10 to 250 rpm, providing versatility for various grinding tasks. The machine offers a maximum infeed grinding length of 200 mm, supported by a grinding wheel width that matches the regulating wheels 200 mm, ensuring a balanced and steady operation. The grinding wheelhead operates with a motor power of 15 kW, delivering robust performance for intensive grinding needs. With dimensions measuring 2020 mm in length, 1300 mm in width, and a height of 1420 mm, this machine is compact yet sturdy, weighing 4200 kg. It is well-suited for environments where space and high-performance requirements are crucial. This machine, due to its construction and capabilities, is a reliable choice for various industrial grinding tasks., Ø grinding wheel dimensions (od x id x width): Ø 406 x Ø 203 x 200 mm, Ø min / max to grinding: 1.5 / 100 mm, Regulating wheel width: 200 mm, Min / max regulating wheel speed (r.p.m.): 10/250 rpm, Regulating wheel dimensions (od x id x width): Ø 270 x Ø 140 x 200 mm, Grinding wheel width: 200 mm, Maximum infeed grinding length: 200 mm, Motor power grinding wheelhead: 15 kW, Long: 2020 mm, Width: 1300 mm, High: 1420 mm, Weight: 4200 kg
