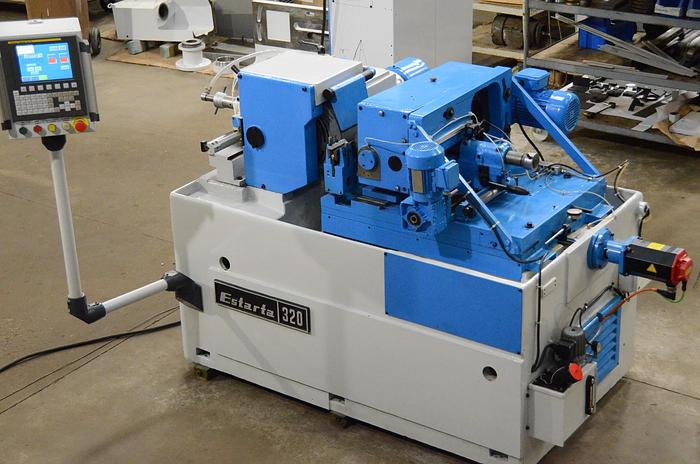

ESTARTA 320

Enrolling rule holder, Grinding discs, Speed variator for the grinding wheel, OPTIONAL cooling: Fairing, Automatic centralized greasing, CNC 1 Year Warranty / Porta enfile rules, Saucers wheel holder, Refrigeration equipment OPTION: Protection,, automatic lubrication system, CNC, 1 year warranty, Ø grinding wheel dimensions (od x id x width): Ø 406 x Ø 203 x 200 mm, Grinding wheel dimensions (od x id x width): Ø 406 x Ø 203 x 200 mm, Ø min / max to grinding: 1.5 / 100 mm, Ø min / max to rectify: 1.5 / 100 mm, Regulating wheel width: 200 mm, Min / max regulating wheel speed (r.p.m.): 10/250 rpm, Min / max speed of regulating wheel (r.p.m.): 10/250 rpm, Regulating wheel dimensions (od x id x width): Ø 270 x Ø 140 x 200 mm, Grinding wheel width: 200 mm, Maximum infeed grinding length: 200 mm, Maximum length to be rectified in plongeé: 200 mm, Motor power grinding wheelhead: 15 kW, Grinding wheel head motor power: 15 kW, Long: 2020 mm, Width: 1300 mm, High: 1420 mm, Weight: 4200 Kg, Accessories included: Sliding portarlas, Cymbal grips, Speed variator for the drag wheel, Cooling equipment OPTIONAL: Fairing, Automatic centralized greasing, CNC 1 Year Warranty / Porta enfile rules, Saucers wheel holder, Refrigeration equipment OPTION: Protection,, automatic lubrication system, CNC, 1 year warranty
