Manufacturer: FASTEMS
Year of Manufacture: 2012
Model: MLS-MD

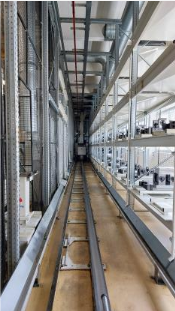

Type of Machine: Multi-Level System Medium Duty
Technical Specifications:
- Control: Fastems MMS4
- Power Consumption: 71 kVA
- Current: 56A
- Power Supply: 400V AC, 50/60Hz
- Compressed Air Connection: 6.5 bar
- Dimensions: Approximately 23m length x 5.1m height
- Shelf Spaces: 84 total (61 spaces at 630mm height, 23 spaces at
885mm height)
- Pallet Size: 630 x 630mm
- Handling Weight: 1,500 kg
- Equipment / Setup Bays: 2
- Originally Designed For: 3x GROB G550
- Prepared For: 3 machines
- Axes: 3 axes - X-axis (travel motion of storage and retrieval unit),
Y-axis (lifting motion), Z-axis
- (load handling device)
- Cooling System: Yes, leakage oil extraction system
- Maximum Speed of Storage and Retrieval Unit: 0 to 2.5 m/s
- Pallet Change: Yes
- Scope of Delivery: Shelf storage, storage and retrieval machine, and
setup stations. Delivered without pallets.
- Special Feature: Large storage system for three machining
centers.
