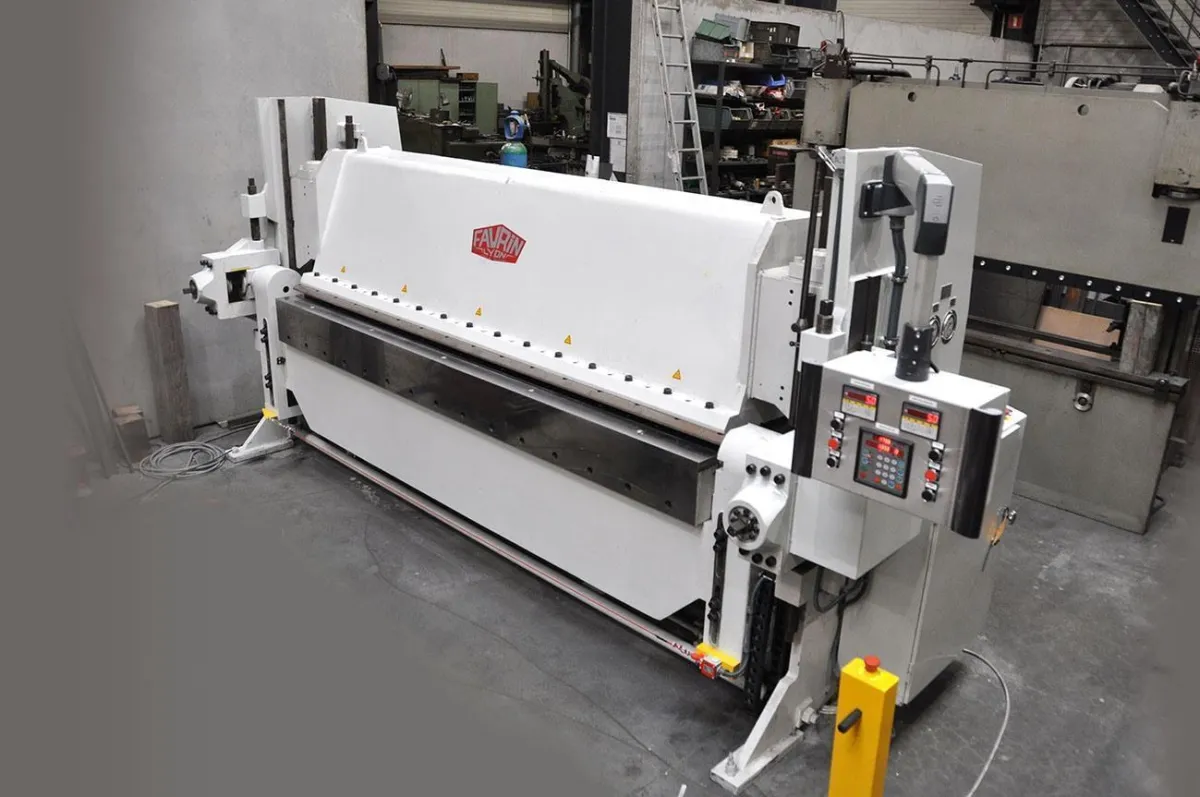

Favrin PHMM 3050 x 12 mm CNC

Reconditioned machine fitted with Elgo CNC control for bending angle Also equipped with 2 digital readouts for positioning of lower table Emergency cord at the front Foot pedal for semi-automatic use Bending radius (R) = 1.5 E - 10 mm on 3 meter length - 12 mm on 2 meter length - 15 mm on 1 meter length Bending radius (R) = 2 E - 12 mm on 3 meter length - 15 mm on 2 meter length Pre-bending - 15 mm on 3 meter length - 20 mm on 2 meter length
Type: hydraulic
Max worklength: 3050 mm
Max tickness: 12 mm
Distance between clampblock -- ram: 700 x 500 mm
Eletric motor (power): 25 HP
Length: 4300 mm
Depth: 2300 mm
Hight : 2300 mm
Weight: 15 ton
