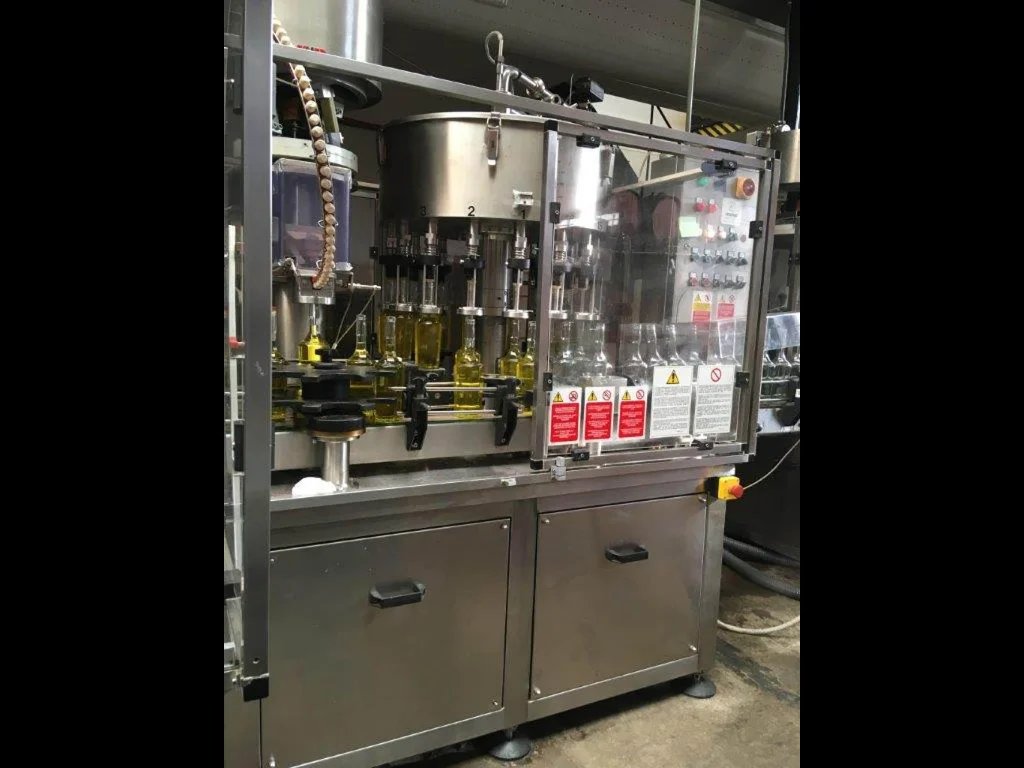

Used FIMER filling monoblock 16-1 for oilTechnical Specifications &
Performance DataThis Fimer Filling Monoblock 16/1 is engineered for
precise and reliable edible oil filling with integrated capping.
Designed as a compact filler-capper block, it streamlines primary
packaging in food-grade operations and integrates seamlessly into a
used bottling line or standalone industrial packaging cell. The unit
is CE marked and equipped with utility connections suitable for
beverage production and food oil applications.Manufacturer:
FimerModel: 16/1Year: 1995Configuration: 16 filling valves / 1 capping
headApplication: Edible oilCap format: T-cap (T stopper)Power supply:
380 VFrequency: 50 HzElectrical input: 8 ACompressed air: Max 6
barMonoblock functions: Filling + cappingCertification: CEAdvanced
Automation & Control SystemsThe monoblock features centralized machine
controls for coordinated filler and capper operation, consistent
torque application on T-caps, and smooth container handling. Operator
controls provide straightforward start/stop and changeover
adjustments, supporting repeatable settings for different formats.
Electrical components are sized for 380 V, 50 Hz operation with an 8 A
load, while pneumatic circuits are regulated to operate within a 6 bar
compressed air network. Interlocked access points and status
indicators support safe, efficient routine operation.Production Line
Integration CapabilitiesThis second hand filling monoblock integrates
easily into upstream and downstream conveying systems, accumulating
tables, and inspection or labeling stations. It can operate as a
standalone machine or as part of a complete used bottling line for
edible oil packaging. The T-cap capping system interfaces with
standard cap feeders and orienters designed for T-cap closures.Inline
or standalone operationCompatible with standard bottle infeed/outfeed
conveyorsEasy format adjustments for common oil bottle
geometriesSuitable for integration with labeling, inspection, and
secondary packagingMachine Condition & Maintenance HistoryPre-owned
Fimer Filling Monoblock 16/1 with original nameplate data and CE
marking. Offered as a second hand industrial packaging asset, suitable
for integration into production environments following standard
commissioning. The straightforward mechanical design supports routine
maintenance with readily accessible wear parts and lubrication
points.Operational Performance & VersatilityOptimized for
non-carbonated, viscous products such as edible oils, the 16-valve
filler promotes uniform filling performance with controlled product
handling. The integrated single-head T-cap capper applies closures
suitable for oil bottles requiring controlled pouring. The compact
monoblock footprint reduces line complexity, simplifies
synchronization between filling and capping, and helps maintain
consistent cycle timing across formats commonly used in oil
packaging.Installation Requirements & Site PreparationElectrical: 380
V, 50 Hz, 8 APneumatics: Clean, dry compressed air up to 6
barUtilities: Standard industrial power distribution and air
serviceFlooring: Level, load-bearing surface with adequate access for
operation and maintenanceIntegration: Provision for bottle conveyors
and cap feeding systemSafety Standards & Compliance CertificationThe
machine bears the CE mark and is designed to support safety-compliant
operation with interlocked guards, emergency stop circuits, and clear
operator interfaces. Food-contact design principles are appropriate
for edible oil applications, and the monoblock configuration minimizes
open transfer points between filling and capping to support hygienic
handling.
