Manufacturer: Frech
Model: DAK 315S
Year of Manufacture: 1996
Type of Machine : Cold Chamber Die Casting Machine
Control System: Frech DataControl
Shot Count: At least 1,147,108 (indicative, hardware change
recorded)
Condition: Fully production-ready, currently still connected and
operational

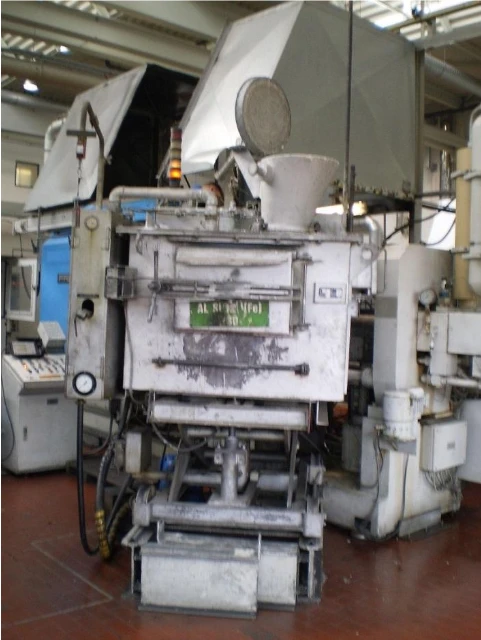

Included: Striko Westofen W455 holding furnace
Technical Specifications
- Clamping Force: 3,150 kN
- Opening Force: 10,000 daN
- Closing Stroke: 500 mm
- Adjustable Opening Stroke: Yes
- Ejector Force / Retraction Force: 159 / 82 kN
- Ejector Stroke: 120 mm
- Die Height Min-Max: 300 - 700 mm
- Platen Size: 900 x 900 mm
- Tie Bar Spacing: 550 x 550 mm
- Tie Bar Diameter: 110 mm
- Injection Position: 0 / -80 / -160 mm
- Maximum Injection Force: 350 kN
- Injection Stroke: 430 mm
- Shot Sleeve Diameter: 50 / 60 / 70 / 80 mm
- Shot Volume: 563 / 811 / 1103 / 1441 cm3
- Specific Injection Pressure: 1783 / 1238 / 909 / 696 daN/cm2
- Projected Area (associated): 177 / 254 / 347 / 453 cm2
- Maximum Projected Area: 1050 cm2 at 300 daN/cm2
- Hydraulic Operating Pressure: 140 bar
- Idle Cycles (DIN 24480): 500
- Drive Motor: 22 kW
- Machine Weight: 14,000 kg
- Floor Space Required (L x W x H): 6900 x 2000 x 2800 mm
