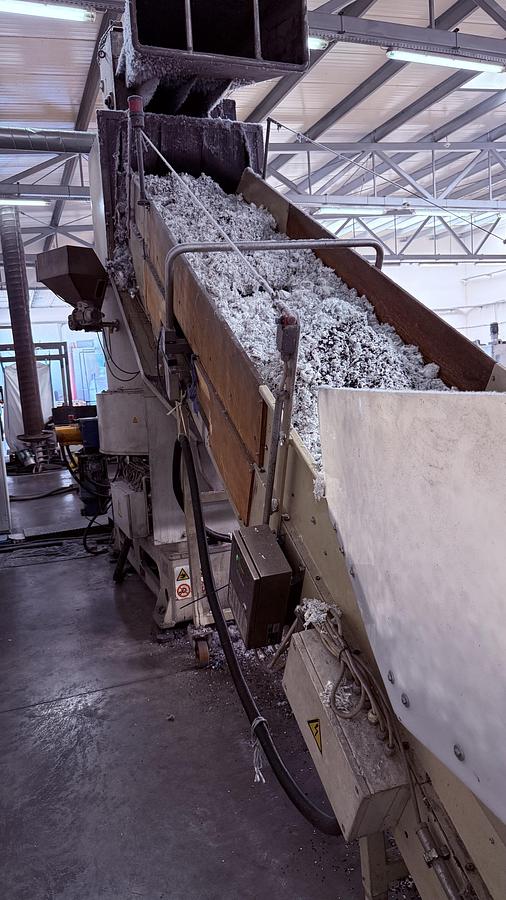

GAMMA MECCANICA GM 90-35D COMPAC HP (photos taken before
reconditioning . see how we recondition
[HERE](.germanplast/pages/photo-gallery)), automatic cycle from waste
to granule, Material: hard and soft plastics PP, PE, PP/PE, PS, ABS -
film reels, Optimal scrap size 40 mm. (ask for [size reduction
equipment](.germanplast/listings?q=granulators) if you need), Nominal
throughput rate 250-500 kg/h depending on the type of material and
feeding rate, Loading belt with metal detector, Reel feding system,
Compactor AF-T 105, 90 kW drive, Extruder 90 mm. 36 L/D - 90 kW drive,
degassing vacuum pump, BDO 90/140 screen changer 144 mm. Ø screen [
fully automatic screenchanger available on separate
request](.germanplast/listings/7610249-used-fimic-ras-325-automatic-sc
reenchanger), GMC 50 hydraulic power unit, Cooling tank with TDA 4.0
granulator, C285 granulate centrifuge, Granulate drying tower,
Extruder motor 90 Kw - compactor motor 90 kw, Installed power 280 kw,
3x400V + N + PE, Ccentral Siemens control system fitted with a
touchscreen HMI operator panel, All motors are driven by ABB
inverters, and all electrical components were supplied, by Siemens.
The molten plastic pressure measurement system (sensor, controller) is
by, Dynisco. The line is fitted with a safety module, including
solenoid locks and limit switches., The line is offered totally
reconditioned, Some spares available, Ask for chilling unit, if needed
- we can offer new machines at a very competitive price, installed
power - used power in work: about 60-65% : 280, availability: 3
months from confirmation, options available: Chiller, vertical mixer
to blend granulate, capacity: 250-500 kg/h depending on materials,
feeding rate, moisture, conditions: totally reconditioned, type: full
compact line from scraps to granule, power used in work: 0,25-0,30
kw/h average
Italien
ponderano
