GERMANPLAST 1.000 mm 18,5 kW (or bespoke)

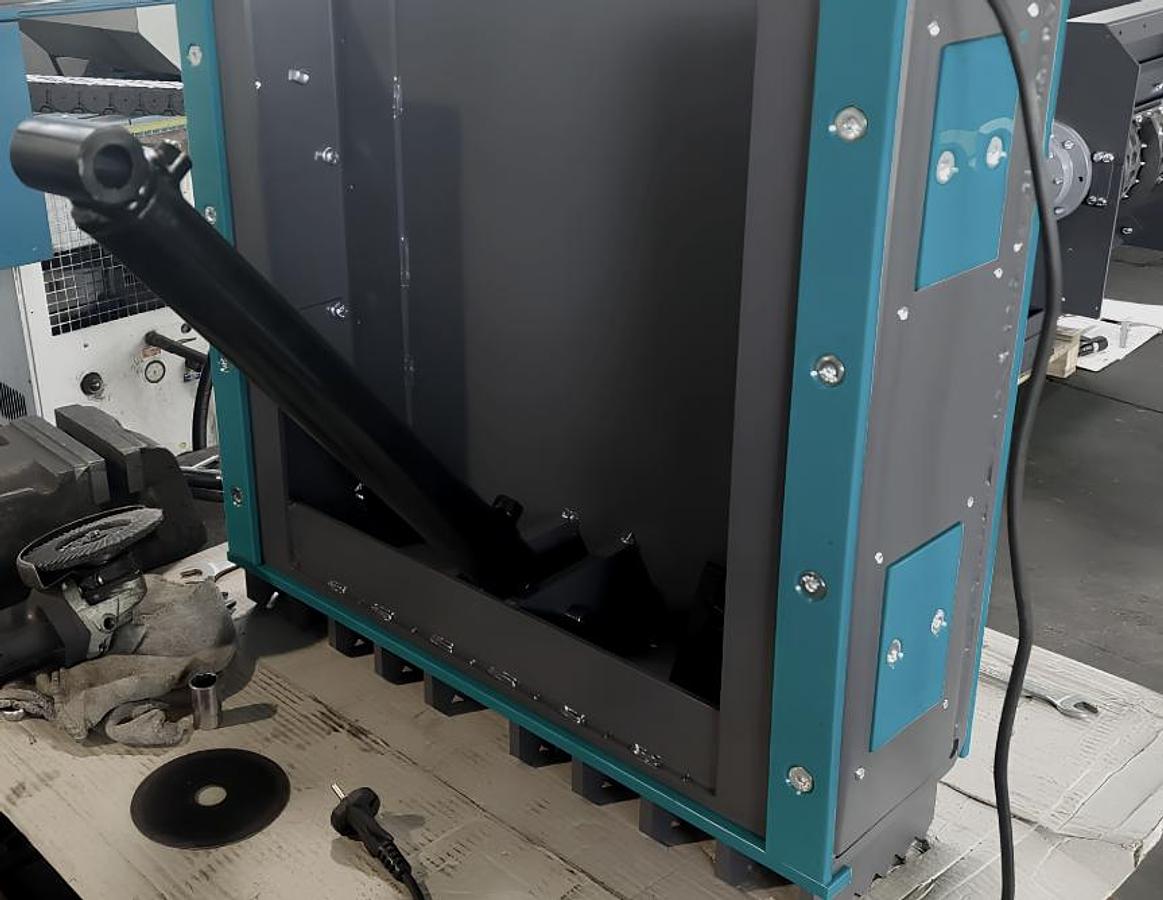

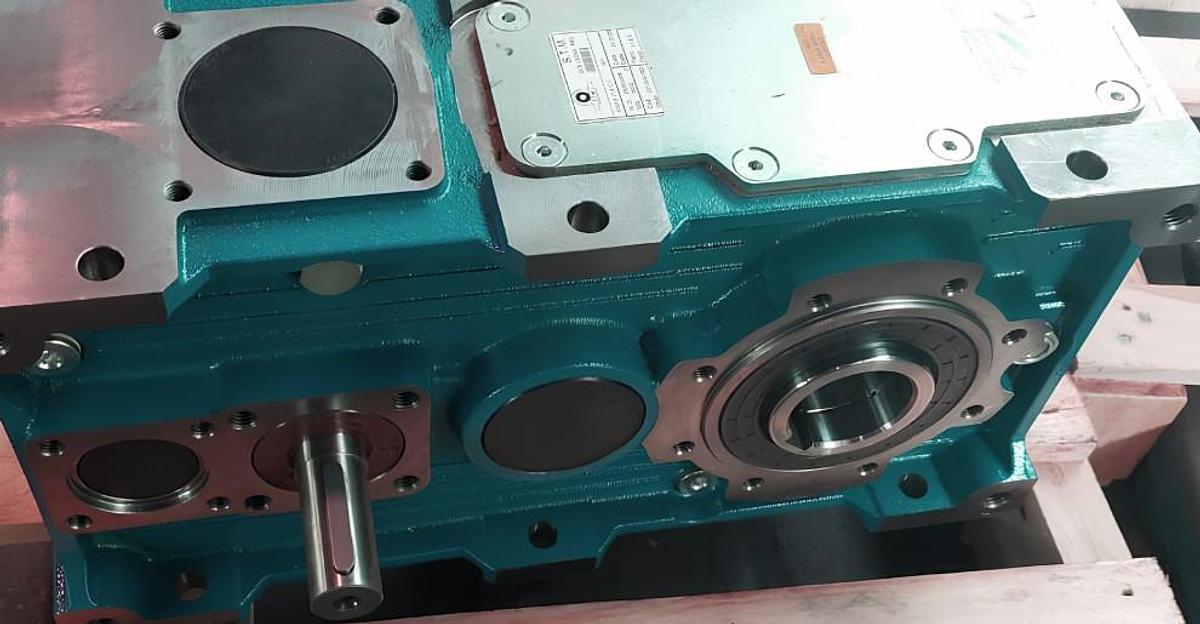

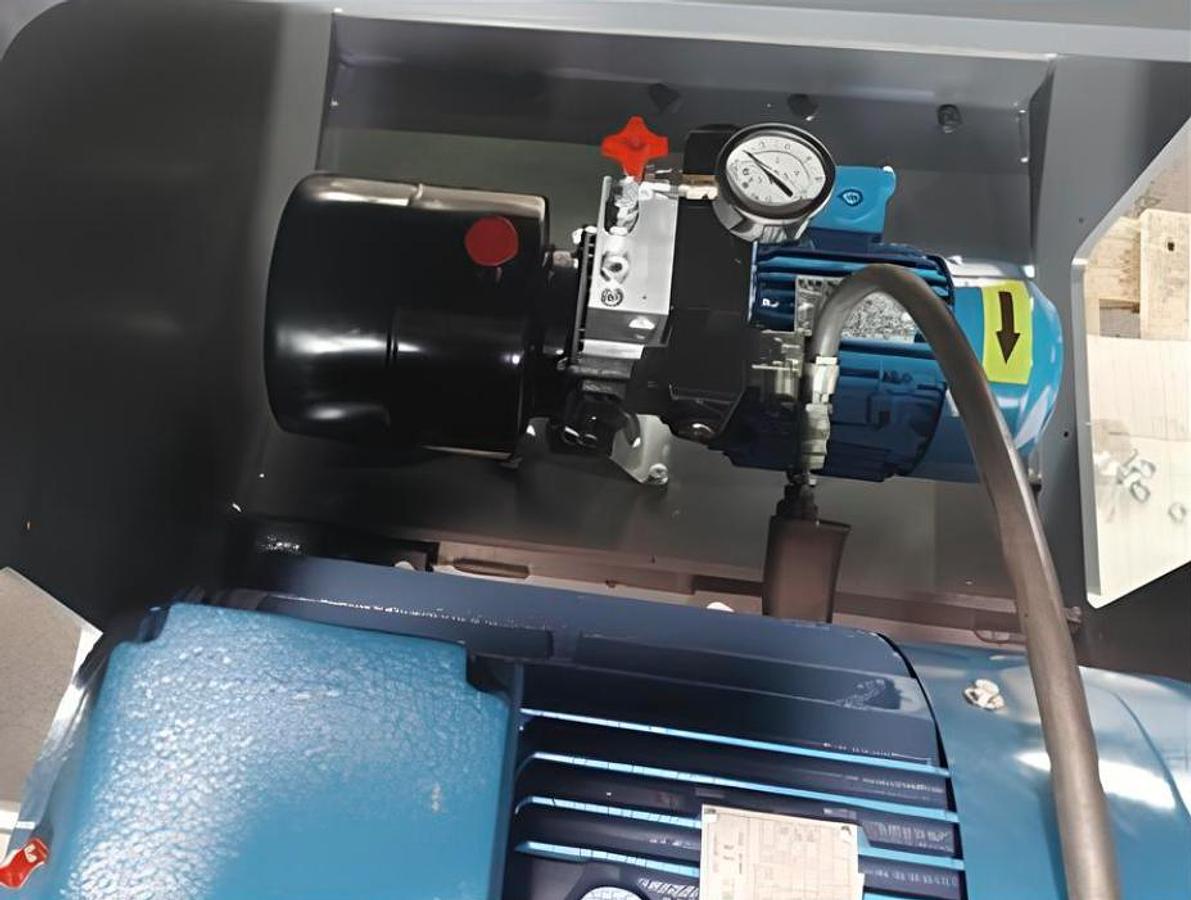

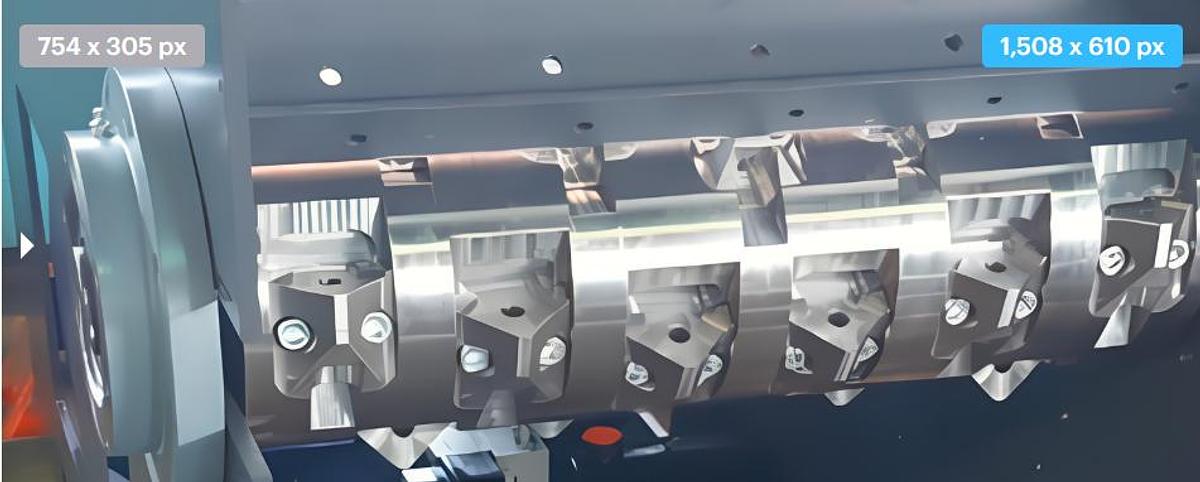

ALL PURPOSE, SMALL SHREDDER 600 mm.18,5 kW, for plastics, cardboard, pipes, paper, cables, wok and more, This is a new machine engineered to offer the best possible results in size reduction of various materials., Constructed entirely in Italy, according to the latest safety regulations with top quality materials and components., Rotor width 600 mm. Rotor diameter 190 mm, n.22 bolted reversable cutting pieces 40x40 mm. Motor power 18,5 kW (or bespoke to project), belts transmission to STM gearbox, Electrical control system Siemens S7 PLC control, horizontal hydraulic ram with adjustable run, 0,75 kW hydraulic pack, control cabinet with PLC Siemens 1200 + Siemens HDMI 4” panel., Sturdy supporting structure in solid carbon steel, forklift slits, Loading hopper constructed in sturdy carbon steel, bespoke to project, 12 month warranty, Possible Industry 4.0 confirguration on separate offer, Available [loading](.germanplast.eu/listings/4462316-conveyor-with-metal-detector) and [extraction](.germanplast.eu/listings/4115563-used-extraction-belt-450-x-3-500-mm-magnetic-drum) system on separate offer, Average throughput rate with cables : 400 kg/h, Dimensions : LxWxH 1,750 x 0,850 x 1,650 mt., installed power - used power in work: about 60-65% : 18,5 Kw, availability: in ca. 3 months from confirmation, working width: 600, options available: different power, hopper size, loading/unloading systems, conditions: new machine, type: single shaft shredder
