EINWELLEN-ZERKLEINERER 2.000 mm 110kW GERMANPLAST 2.000 mm 90/110 kW

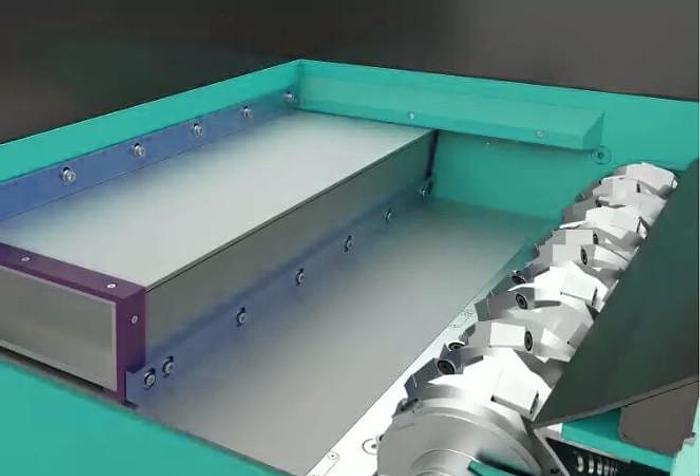

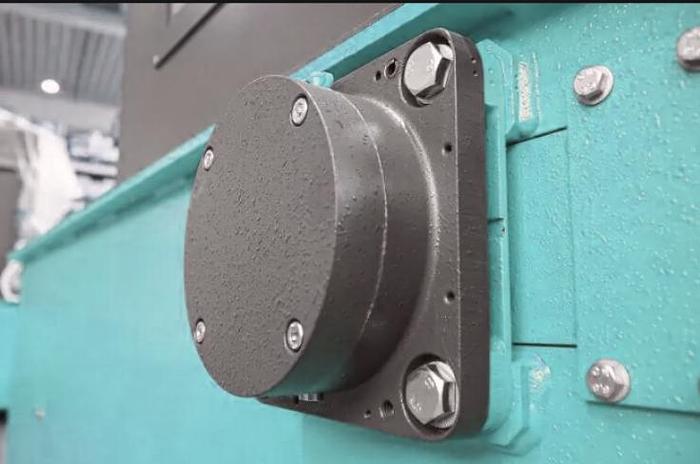

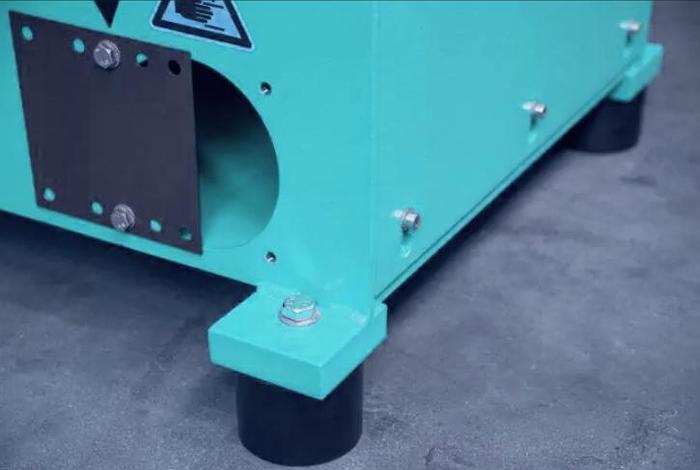

SINGLE SHAFT SHREDDER, V Rotor width 2.000 mm. 78,74 Rotor diameter 500 mm 16.69″ Motor power 90 or 110kW n.112 knifes 60 x 60, adjustable counter-knife, off-set rotor bearings (low maintenance), V-Rotor with knife pockets, Welded knife holders with screwed knives and covered bold heads, Offset rotor bearings ( low-maintenance / closed ), Fast hydraulic backwards incl. different settings by PLC control and anti shock valve, Shredding room unpainted, Movable screen basket (electro-hydraulically), Screen thickness 10mm, Hydrodynamic starting clutch (energy saving system for machine start), Electromechanical drive with heavy duty gearbox, Control cabinet incl. 5m cable, Electrical control system Siemens S7 PLC control, Reverse counter and transmission limit switch (safety package), Star delta starter, Universal joints for piston with ram impulse and load-related ram function, Machine frame on anti - vibration foundation, Machine prepared for discharge by conveyor belt, Bolted and hardened rotor shaft on gear box side (anti-wear execution), 2 sided segmented ram and floor, Heavy duty version (reinforced ram and machine floor) available on request, horizontal hydraulic ram with hydraulic pack, control cabinet and PLC Available in about 8 weeks time Available [loading belt with metal detector](.germanplast.eu/listings/4462316-conveyor-with-metal-detecto r)and [extraction belts](.germanplast.eu/listings/4115563-used-extraction-belt-450-x-3-5 00-mm-magnetic-drum)on separate offer, 12 month warranty, installed power - used power in work: about 60-65% : 110
Verkäufer Angebot Nr. resale GEKS104
