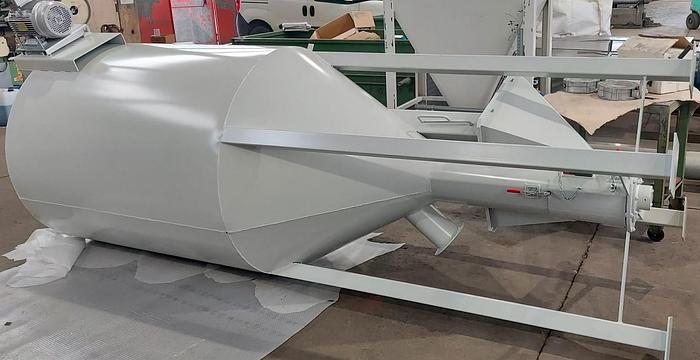

GERMANPLAST 5 m3 VERTICAL MIXER

VERTICAL MIXER, 5.000 lt.capacity Total height approx 5.000 mm Max diam. 1,850 mm. Constructed in painted electro- welded carbon steel. Inner auger diam.280 mm. Loading hopper with safety grid and sampling shutter, 600 x 500 mm. Pulley and belt transmission, protected by carters Inspection door with safety limits, Cleaning hinged door on bottom of cone for complete discharging, with safety opening Side discharging pipe to big bag with valve at 1.000 mm from ground Bottom discharging pipe propeller type max level indicator automatic greasing kit 7,5 kw electric motor Complete with control panel. Electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance and instruction manual, installed power - used power in work: about 60-65% : 7.5, capacity: 5.000 lt.
