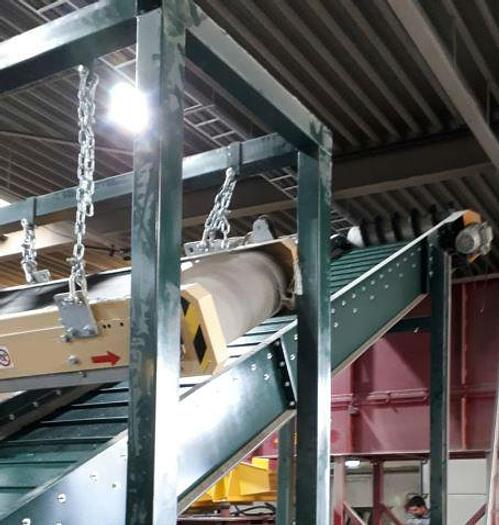

GERMANPLAST OVERBELT MAGNETIC SEPARATORS

An overbelt metal separator is used to remove ferrous contamination from chopped scraps, on the extraction belt from a shredder. We offer different solutions in size and power even for stainless steel., Just send us your requirements and we will send you a most cost-effective, targeted offer., An overbelt metal separator is the easiest way to remove ferrous contamination from scraps., This machine is a available in different sizes, with different magnetic forces, Constructed according to the Italian Top Quality Standards, This is an example :, OVERBELT MAGNETIC TAPE SEPARATOR TYPE R60-80E, - 800 mm wide at a distance of 200 mm from the belt, - Construction characteristics :, - permanent magnet in bipolar conformation with low-carbon iron structure made with Sr Ferrite permanent magnets with high magnetic induction and great coercive force (guaranteed magnetic field strength 20 years), - stainless steel closing shroud, - AISI304 non-magnetic stainless steel dimensions:L*W*H 800*600*200 mm., - power 400 gauss at 200 mm., - Modular structure made from drawn steel, designed for easy belt replacement and easy control of any intrusions of material inside the separator., - n. 4 lifting and installation brackets with adjustable position, - transmission through 240 mm Ø rollers with removable splined shafts, - idler roller support with M24 turnbuckles, - motor roller supports, - 3-ply EP400 rubber tape, - 4+2 EP400 cover with triangular wide base battens ( 70 *600*45 mm), - Bonfiglioli gearbox 1.5 KW 400V 50-60Hz 4p IP55, - belt speed 1.8 m/sec, - Users manual, drawings, CE compliance
