GERMANPLAST SINGLE SHAFT SHREDDER 1100x...

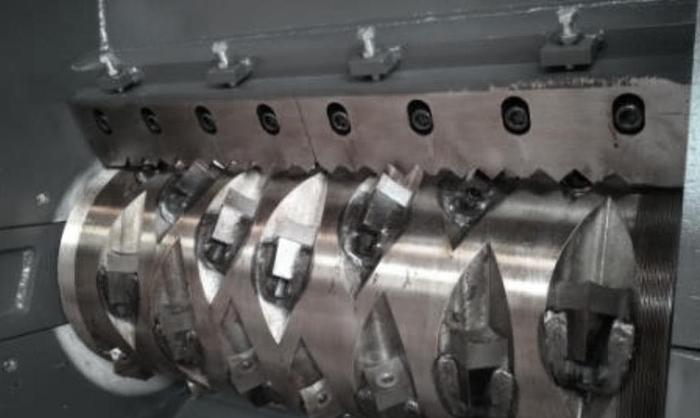

SINGLE SHAFT SHREDDER 55 KW, sturdy structure in electro-welded steel, cutting chamber dimensions mm. 1100x1300, electro-welded sheet metal hopper for top loading, installed power on the rotor 55 kw (75 HP) optional 75 kw (100 HP), hydraulic unit power 5,5 kw (7,5 HP), transmission by belts, 1 rotor, rotor diameter 400 mm., rotor length 1100 mm., 66 reversible tools, 4 usable tool sides, 4 upper fixed blades, 4 lower fixed blades, 73 average rotor revolutions/min., weight 5500 kg, production 1200-2000 kg/h, emergency stop, drawer inversion system, supports for bearings with sealing system against dust and liquids, Adjustable steel counterblade, hydraulically operated pusher drawer with 800 mm of useful stroke, transmission system by means of pulleys and belts, electrical panel according to EEC standards with inverter, SIEMENS main internal board, Power: 55 kw
