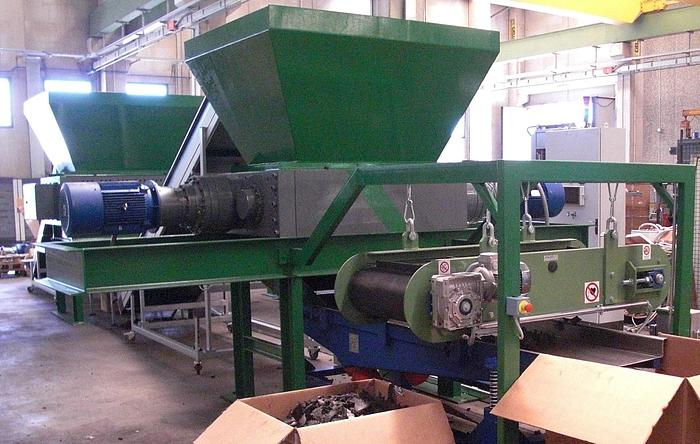

GERMANPLAST TIRE RECYCLING LINE 2 T/h ...

Starting product :, car, 4x4, truck tyres, agri tyres max diam. 1.400 mm and max thickness 300 mm., Final product : 80 - 100 mm.chopped (for inceneration), 4 - 6 mm.crumbs, 2 - 4 mm.crumbs, 1 - 2 mm.crumbs, 0,5 - 1 mm.crumbs, 3 operators per shift, required space : about 30 x 22 mt., calculated on a 220 days/year 8 h/day = 3.520 T/year - 16 h/day = 7.040 T/year, Harmonized steel as a residual product., Average throughput rate of granulate : 2 Ton/h in input (throughput rate depends on feeding rate and on the kind of tires), installed power : about 650 kw used at 65%, Delivery time : about 6 months from confirmation, Main machines:, Debeader - available manual (20-25 tyres/h) or automatic (45-50 tyres /h), for truck tyres only, feeding conveyor belt, Dual shaft shredder 1.500 mm wide, transport belt, discs screen, transport belt, transport belt for fine material, transport belt to return oversized material to shredder, High power granulator 1.600 mm wide rotor, extraction belt, vibrating table, Overbelt magnetic separator, metal fraction discharging belt, transport belt, Buffer with inbuilt screw conveyor, Chopped material is stored in the buffer for further size reduction, separation and cleaning., --------------------------------------------------------------------------, screw to fine granulator, Fine granulator 1.200 mm wide rotor, extraction blower for material, textile fiber separation table, 4-steps vertical screening unit, n.4 transport screws, n.3 densimetric tables for crumb cleaning, dust cleaning unit, n.4 transport screws to big bag loading stations, The dust reducing system acting on material transport and textile separating table consists in:, connection pipes, cyclone, dust reducing filter, vacuum hood, Control panel for management of the whole line, The line can be completed with a [PULVERIZER](.germanplast.eu/listings/4596835-rubber-pulverizing-plant). to reach the finest granulometry., installed power - used power in work: about 60-65% : 650, capacity: 2 Ton/h <6 mm granulate, delivery time: about 6 months from confirmation, Payment Terms: deposit + LC
