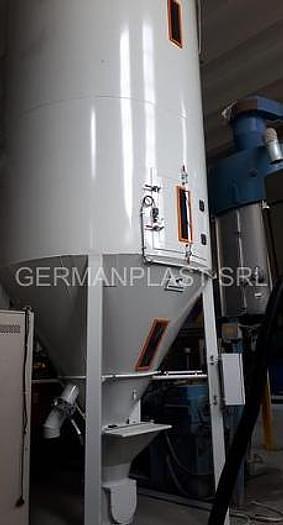

GERMANPLAST VERTICAL MIXER 10.000 lt.

VERTICAL MIXER, 10 m3 capacity, total height approx 5.400 mm including transmission group, max Ø 2.300 mm., constructed in painted electro-welded carbon steel., inner auger diam.350 mm. lower loading hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600x500, pulley and belt transmission, protected by carters, inspection doors with safety limits, cleaning hinged door on bottom of cone for complete discharging, with safety opening, side discharging pipe to big bag with valve at 2.500 mm from ground, max electric level indicator, paddle type, automatic greasing kit, 11 kw drive, complete with control panel., electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V, CE compliance and instruction manual, Possible additions: horizontal loading screw and hopper + cyclone on top + collector with dust sleeves piping + bag holding structure+bag weighing station + PLC for automation with other machines., installed power - used power in work: about 60-65% : 11, capacity: 10.000 lt
