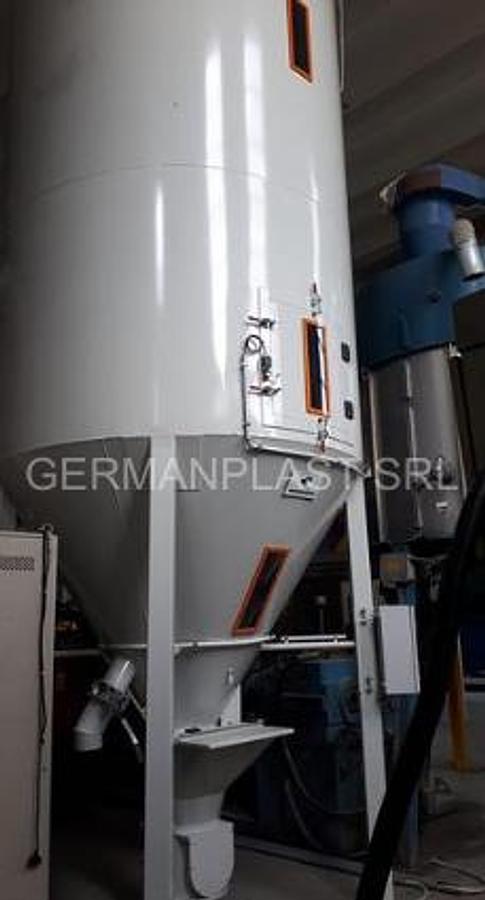

GERMANPLAST VERTICAL MIXER 20 m3

VERTICAL MIXER 20 m3 capacity, total height approx 7.000 mm including transmission group (can be customized), max Ø 2.400 mm.(standard transport), constructed in painted electro-welded carbon steel., including horizontal feeding screw with hopper, inner auger diam.350 mm., lower loading hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600x500, pulley and belt transmission, protected by carters, inspection doors with safety limits, cleaning hinged door with safety device, level control window, 250 mm Ø discharging pipe on bottom side for quick discharging, opening on bottom of cone for complete discharging, with safety opening, side discharging pipe to big bag with valve mm.at 2.500 mm from ground, max electric level indicator, paddle type, automatic lubricating kit, electric motor 15 kw, complete with control panel., electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V, CE compliance, drawings and instructions manual in English., Possible additions: wheeled slide, extraction auger, big bag weighing station, magnet..., conditions: 20.000 lt
