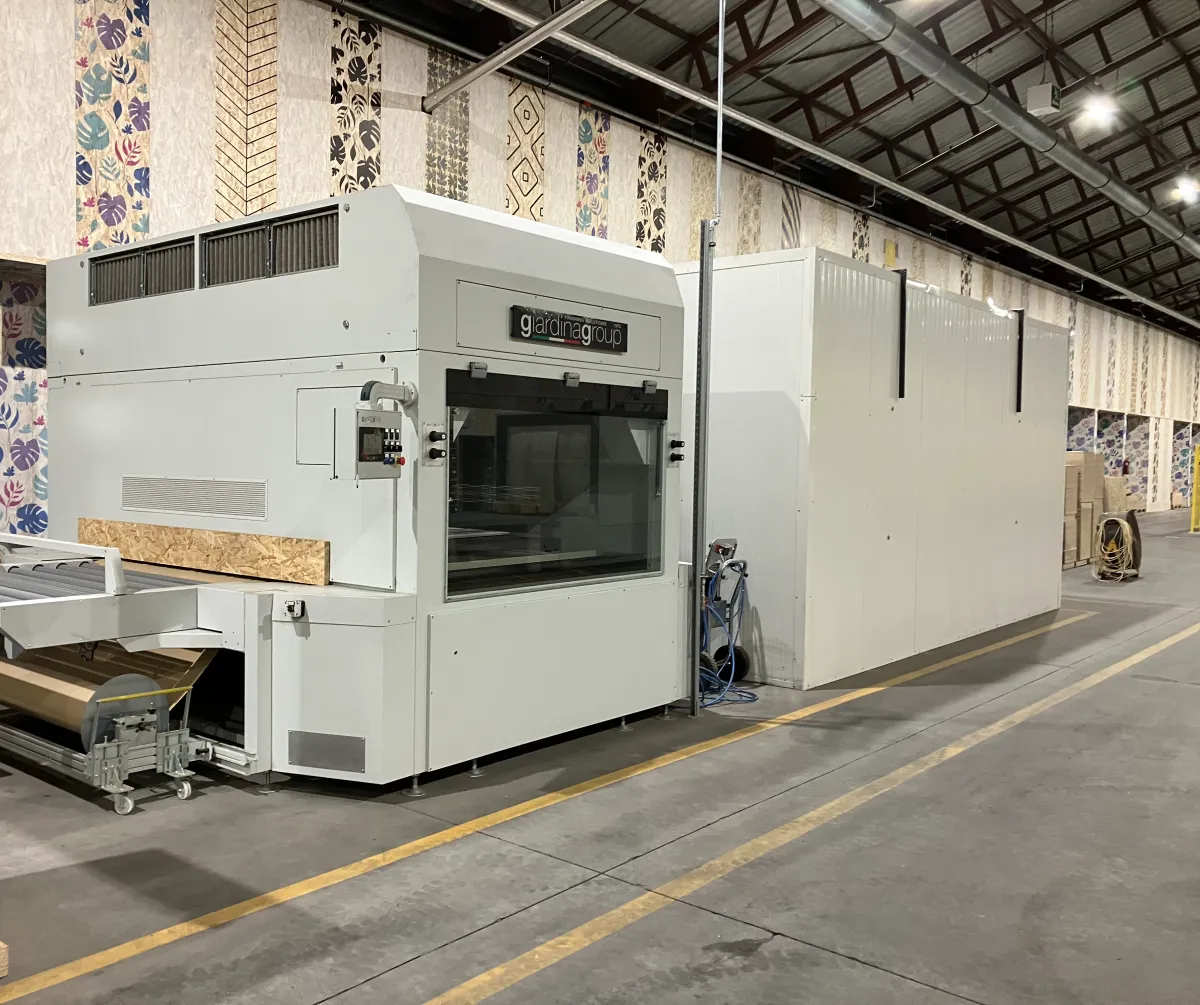

GIARDIANA DUAL TECH 420 SBC DRY

2020 Giardiana DUAL TECH 420 SBC DRY

Overall dimensions

- Width: 4850 mm
- Length: 4930 mm
- Max height: 2845 mm
- Working height: 900 mm (+/- 50)

Workpiece capacity

- Width: 100–1300 mm
- Length: 100–2800 mm
- Max thickness: 50 mm

Electrical

- Voltage: 400 V
- Motor protection: ATEX3G + PTC
- Total power: 14.5 kW

Paper belt conveyor

- Speed: 1–3 m/min
- Gearbox: S301P 1:8.9 P.71 B3
- Motor: 0.37 kW

Infeed conveyor

- Speed: 2–6 m/min
- Gearbox: VF44FA1100 P63 B5 B3
- Motor: 0.18 kW

Central conveyor

- Speed: 1.5–4.5 m/min
- Gearbox: C323P 1/136 P71 B3
- Motor: 0.37 kW

Outfeed conveyor

- Speed: 2–6 m/min
- Gearbox: VF 44 P 100 P63 B5 B8
- Motor: 0.18 kW

Spray guns

- Quantity: 4
- Model: TT1301 MACH5 UG.09-154 FILTERMEDIA

Spray gun drive system

- Gearbox: C322P 7.2 SK110B B7
- Motor: brushless
- Gun travel speed: 0–120 m/min

Air supply unit

- Intake air flow: 9000 m³/h
- Pre-filters: yes
- Heating coil: optional
- Motor: 2 x 0.55 kW
- Fan: MQ-BC 500 axial

Exhaust / cleaning system

- Exhaust air flow: 9000 m³/h
- Fan: MRLQ 562
- Cleaning unit filters: 4
- Spray zone filters: yes

Pneumatic system

- Compressed air consumption (6 bar): 1600 NL/min
- Connections: 1 x 1/2
